Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Vehicle Theft Alarm >> 70 Veh Theft Alarm Module Psngr's Key Cyl Switch Test

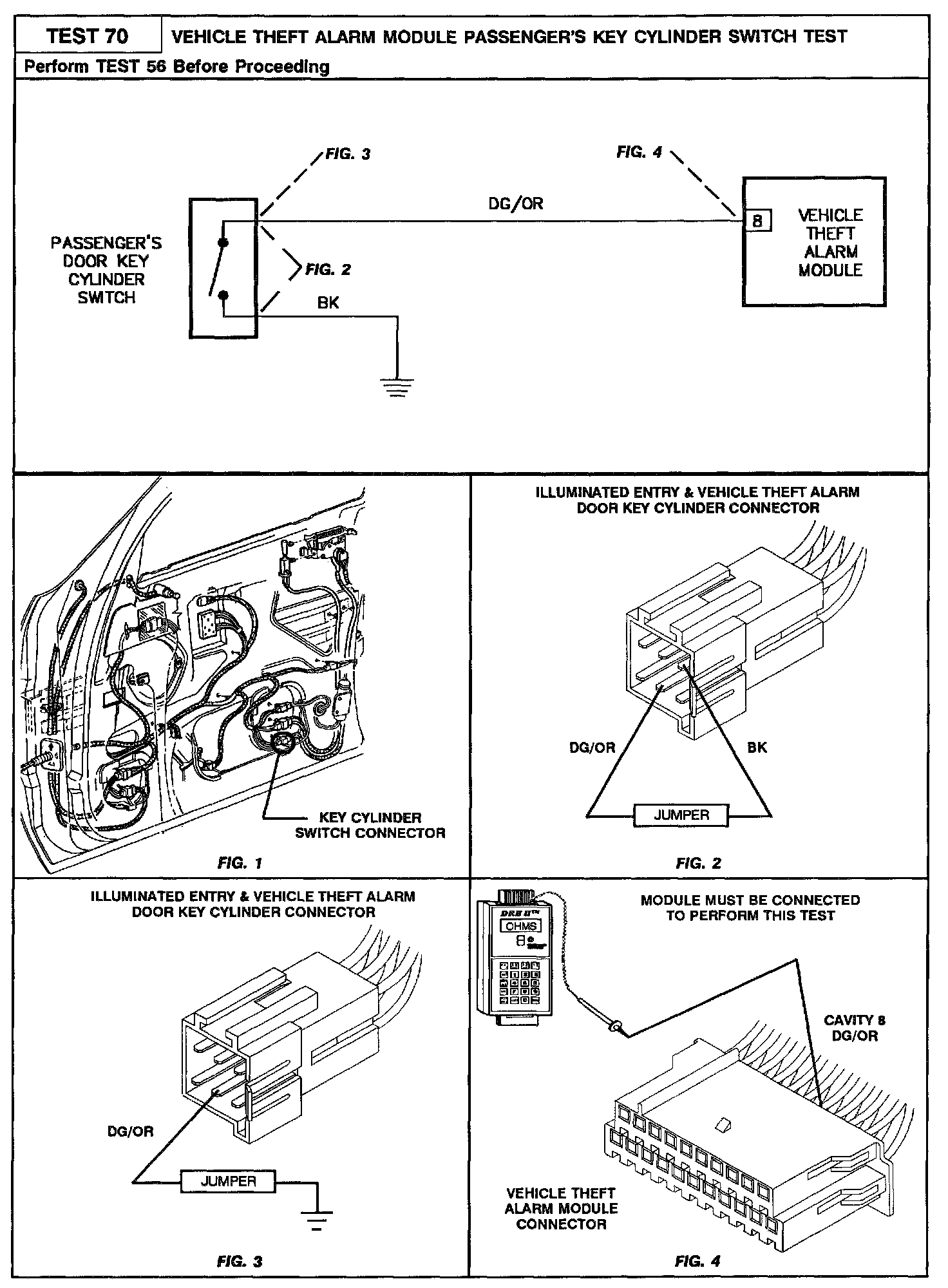

70 Veh Theft Alarm Module Psngr's Key Cyl Switch Test
