Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Automatic Door Lock System
>>

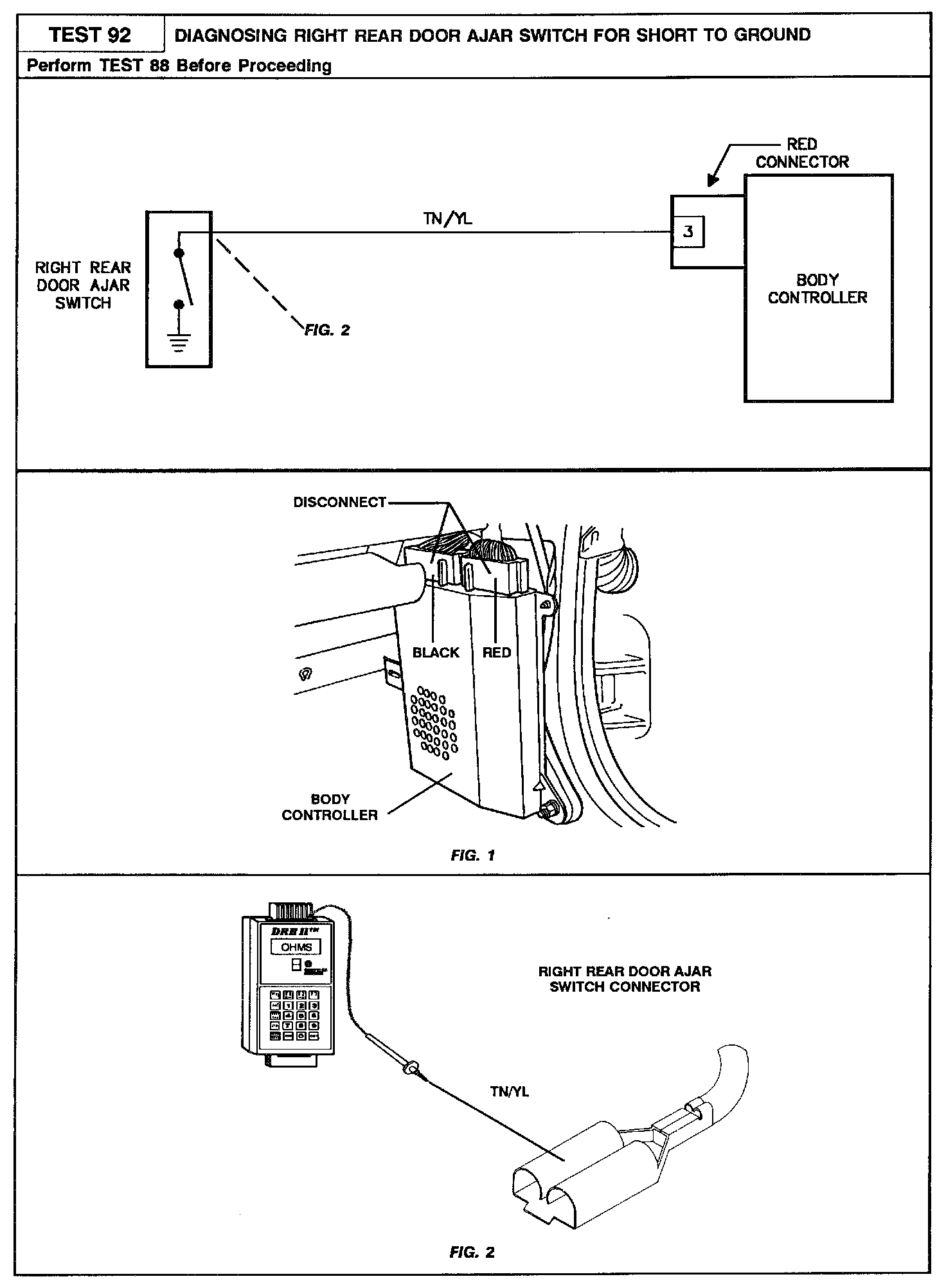

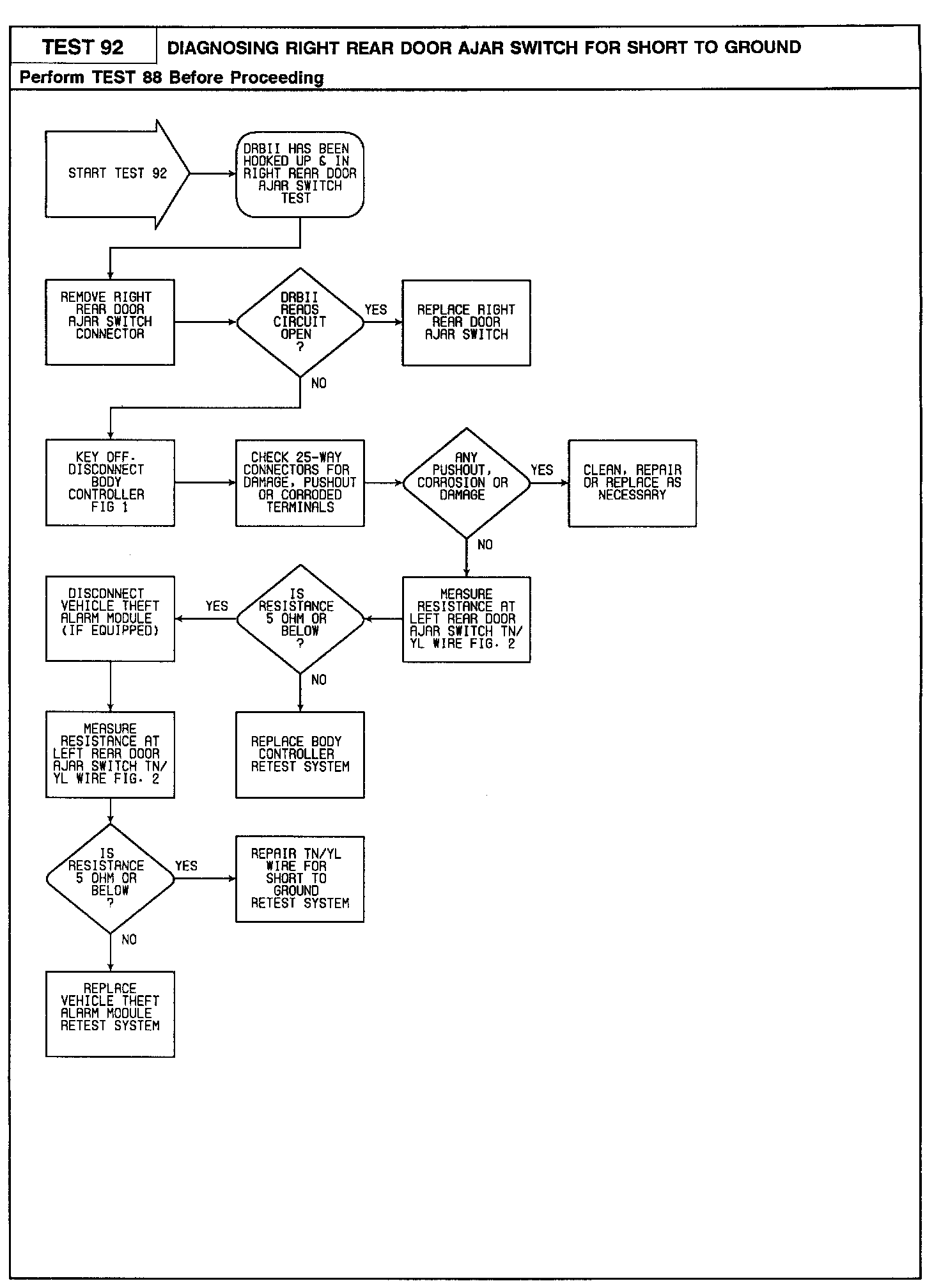

92 Right Rear Door Ajar Switch Shorted to Ground
92 Right Rear Door Ajar Switch Shorted to Ground
