Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 3A - Modulator Fault >> Test 3A

Test 3A

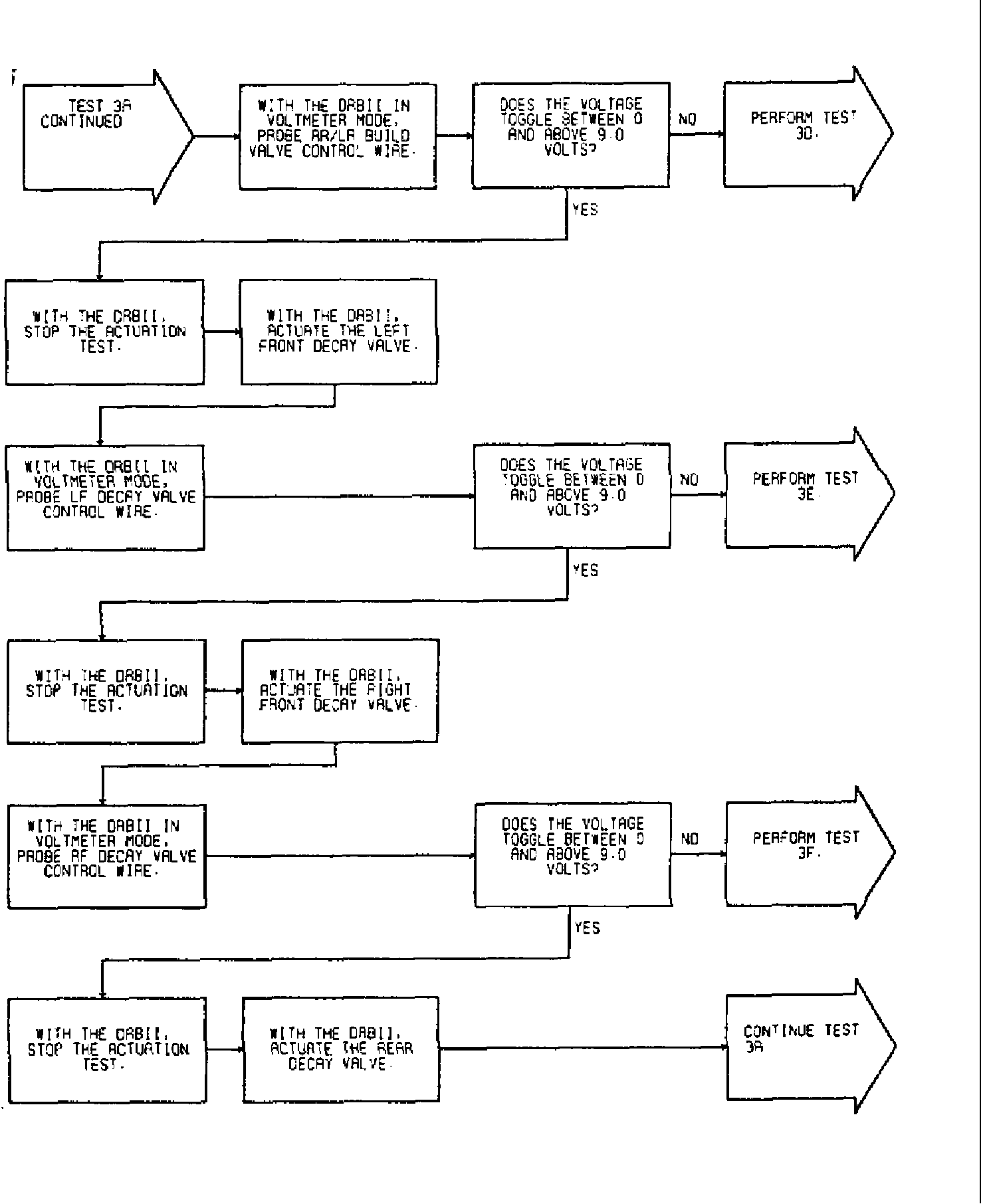

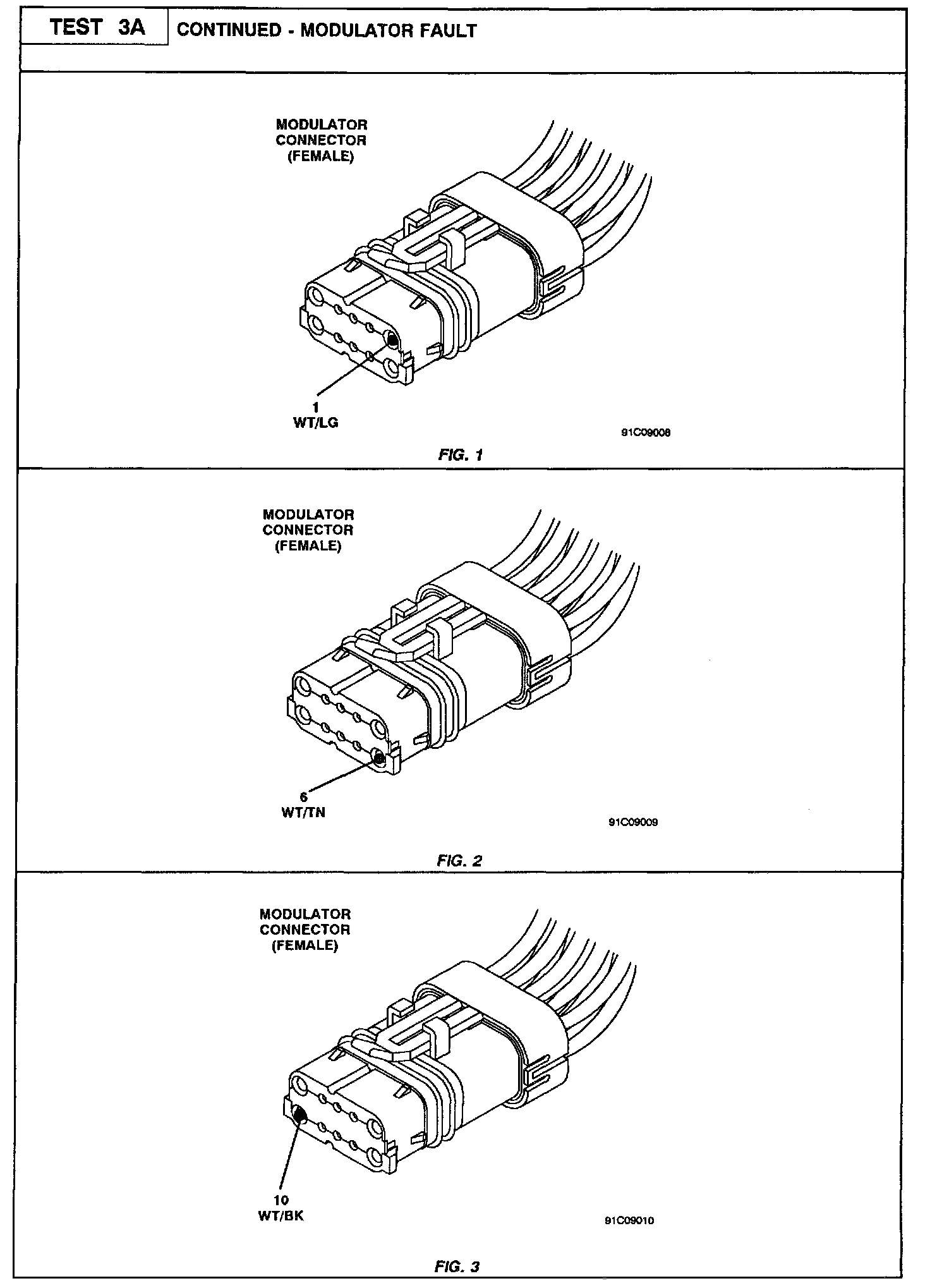

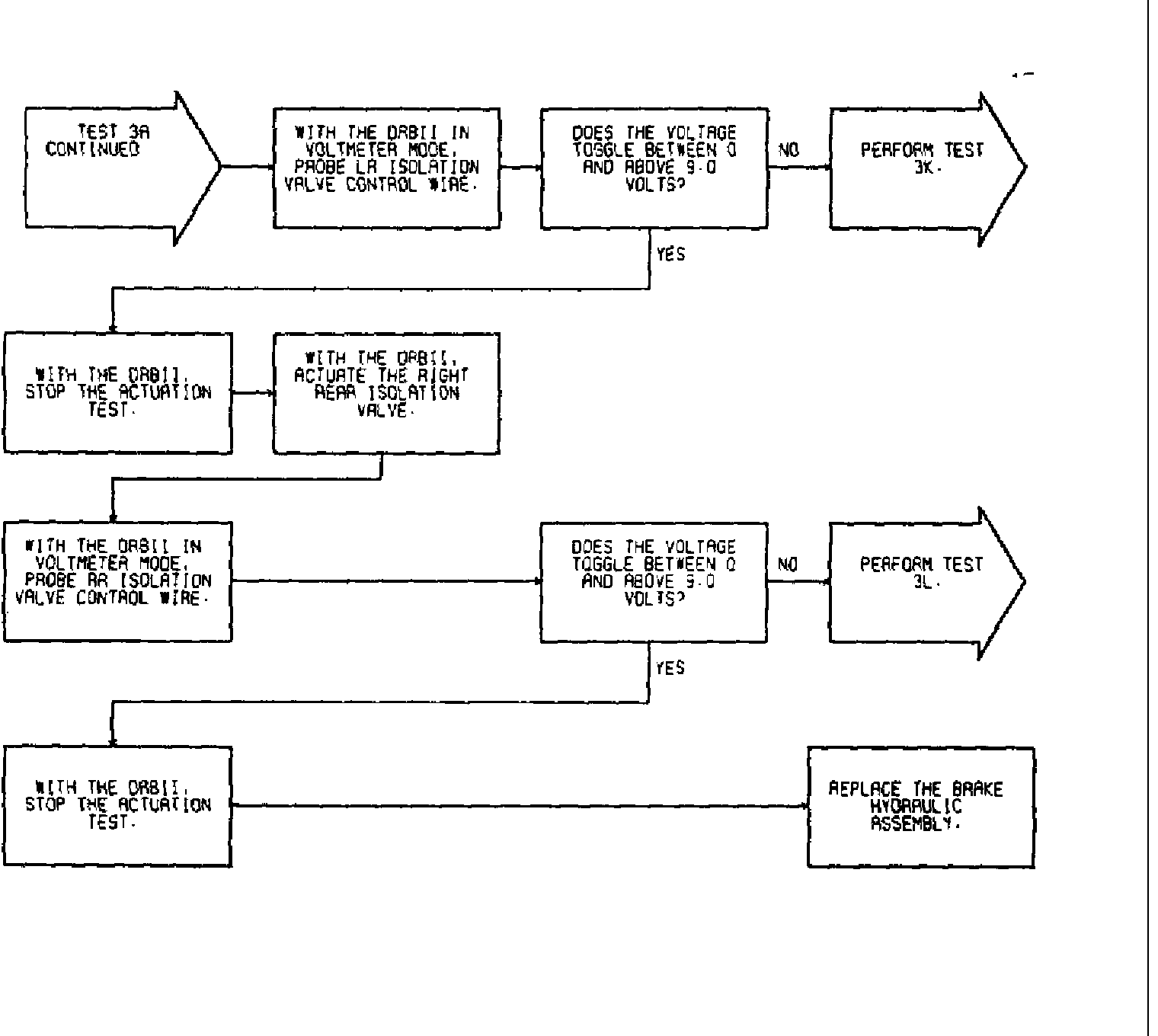

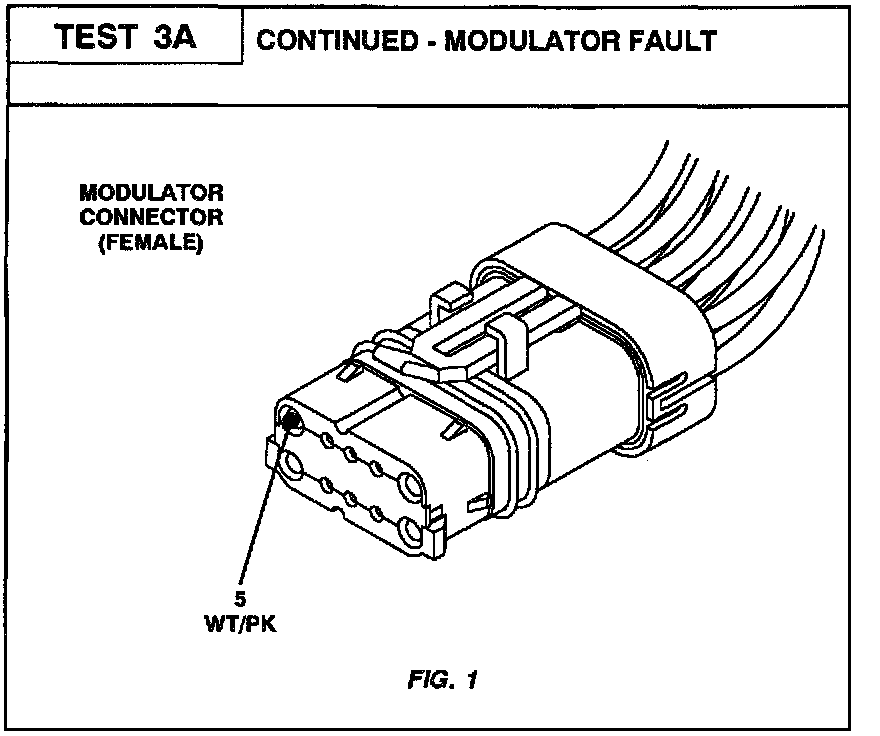

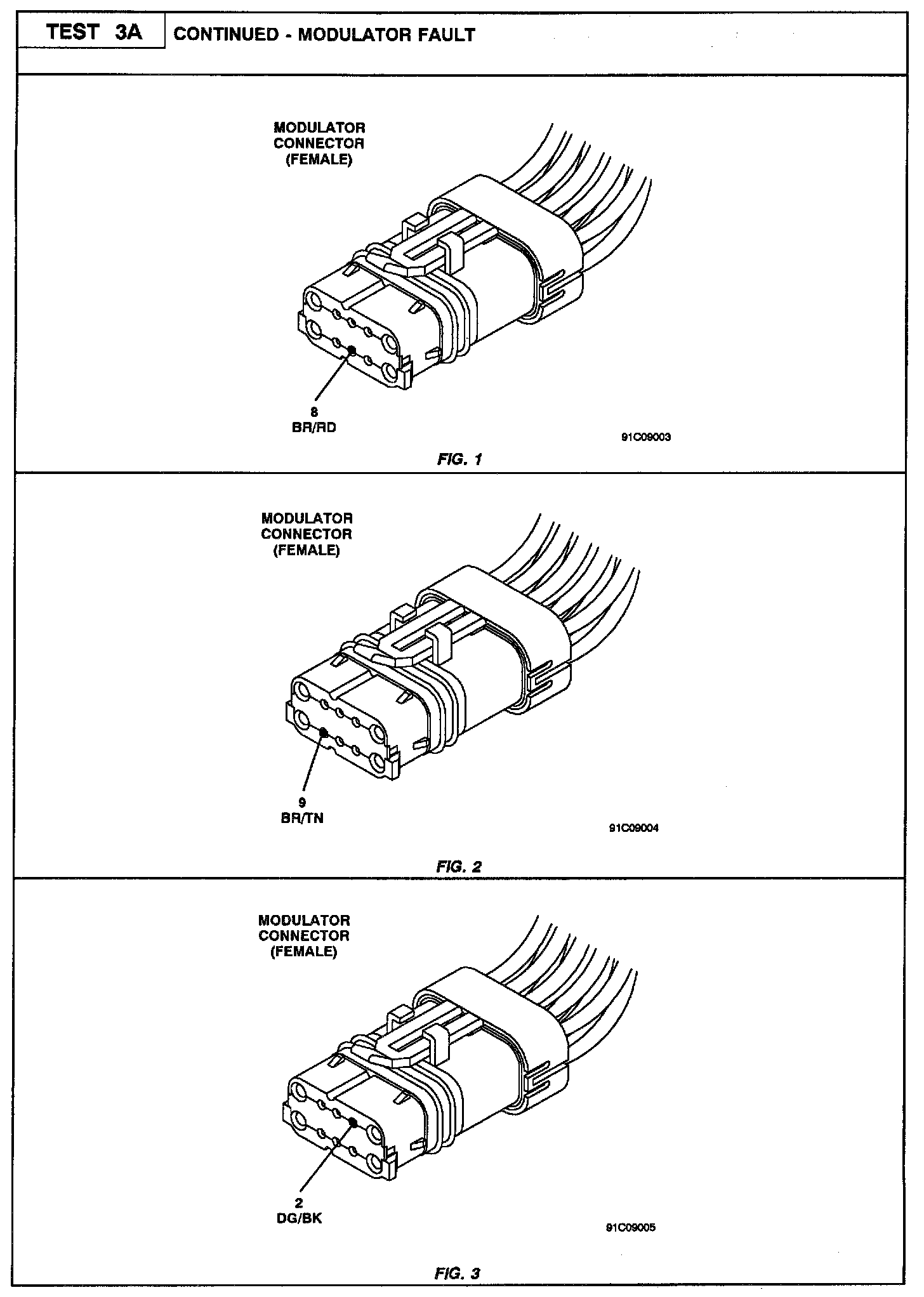

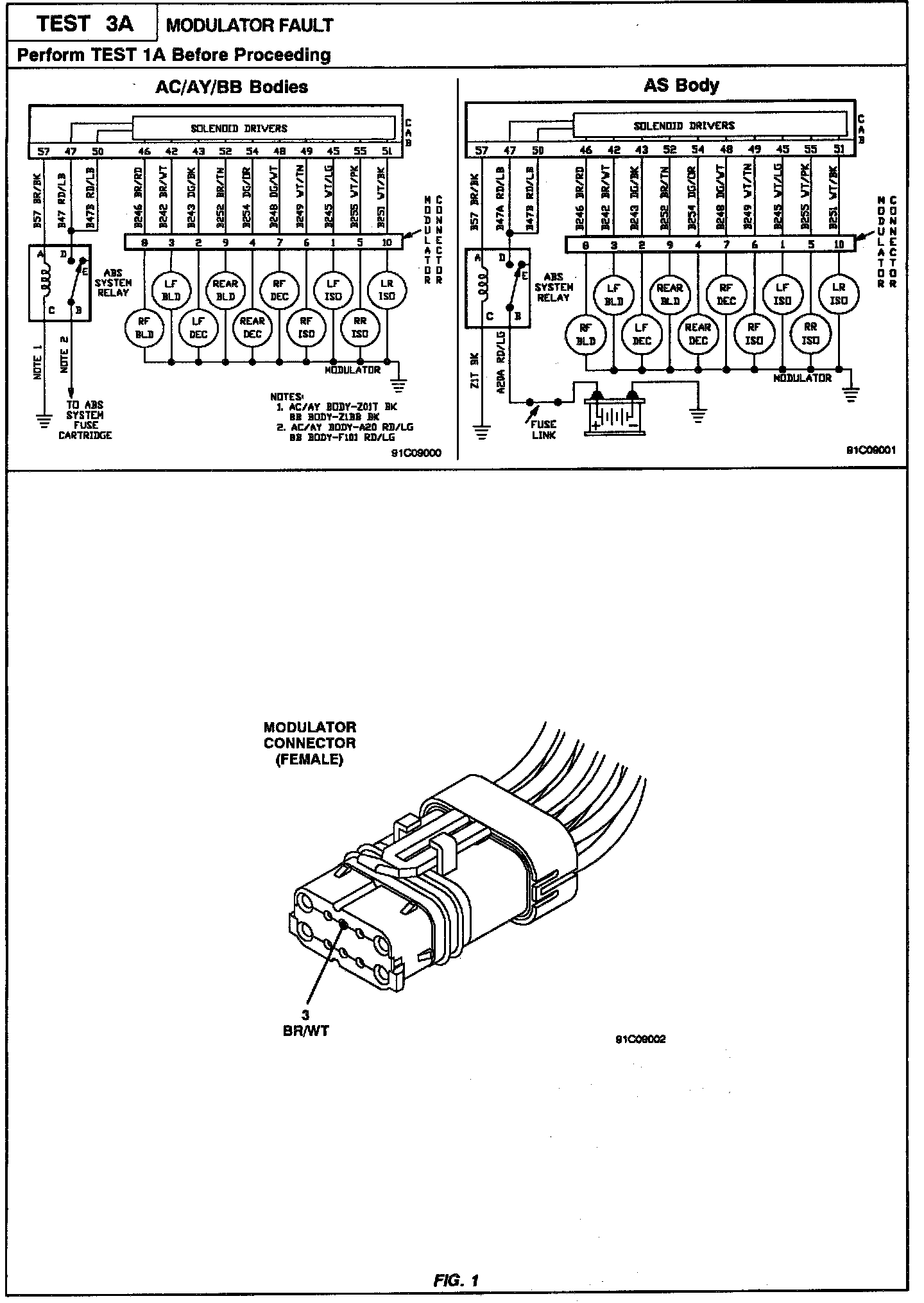

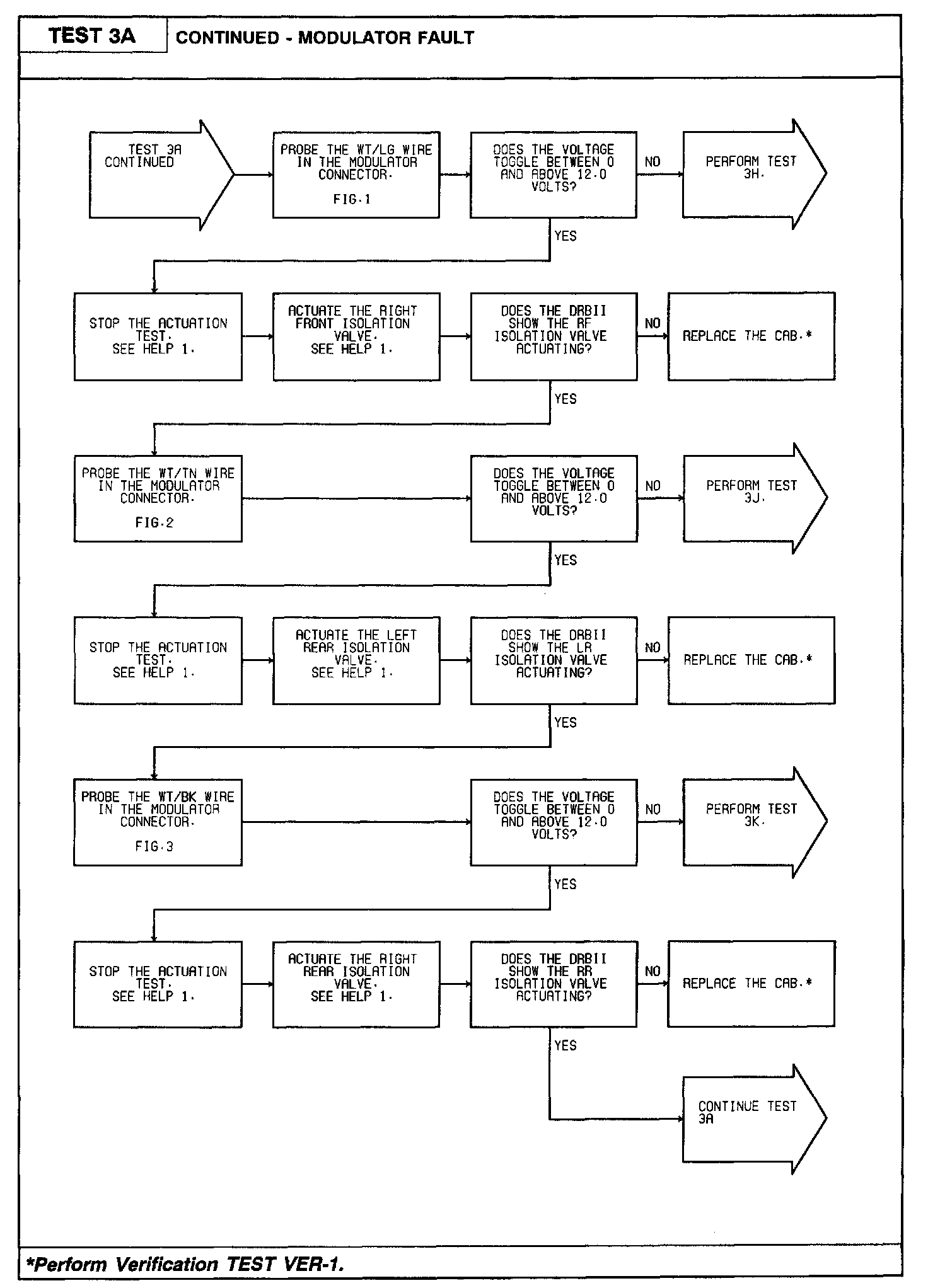

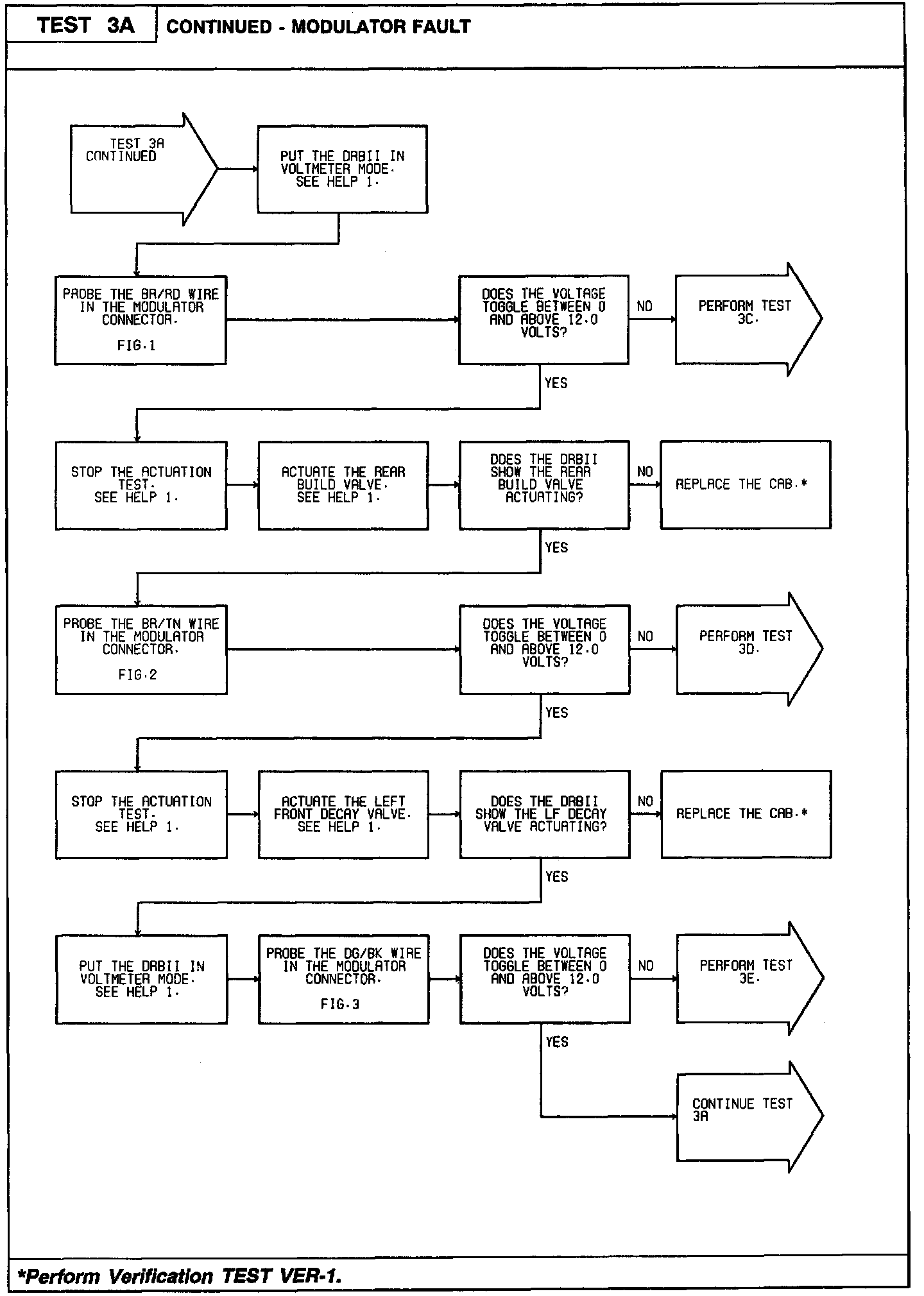

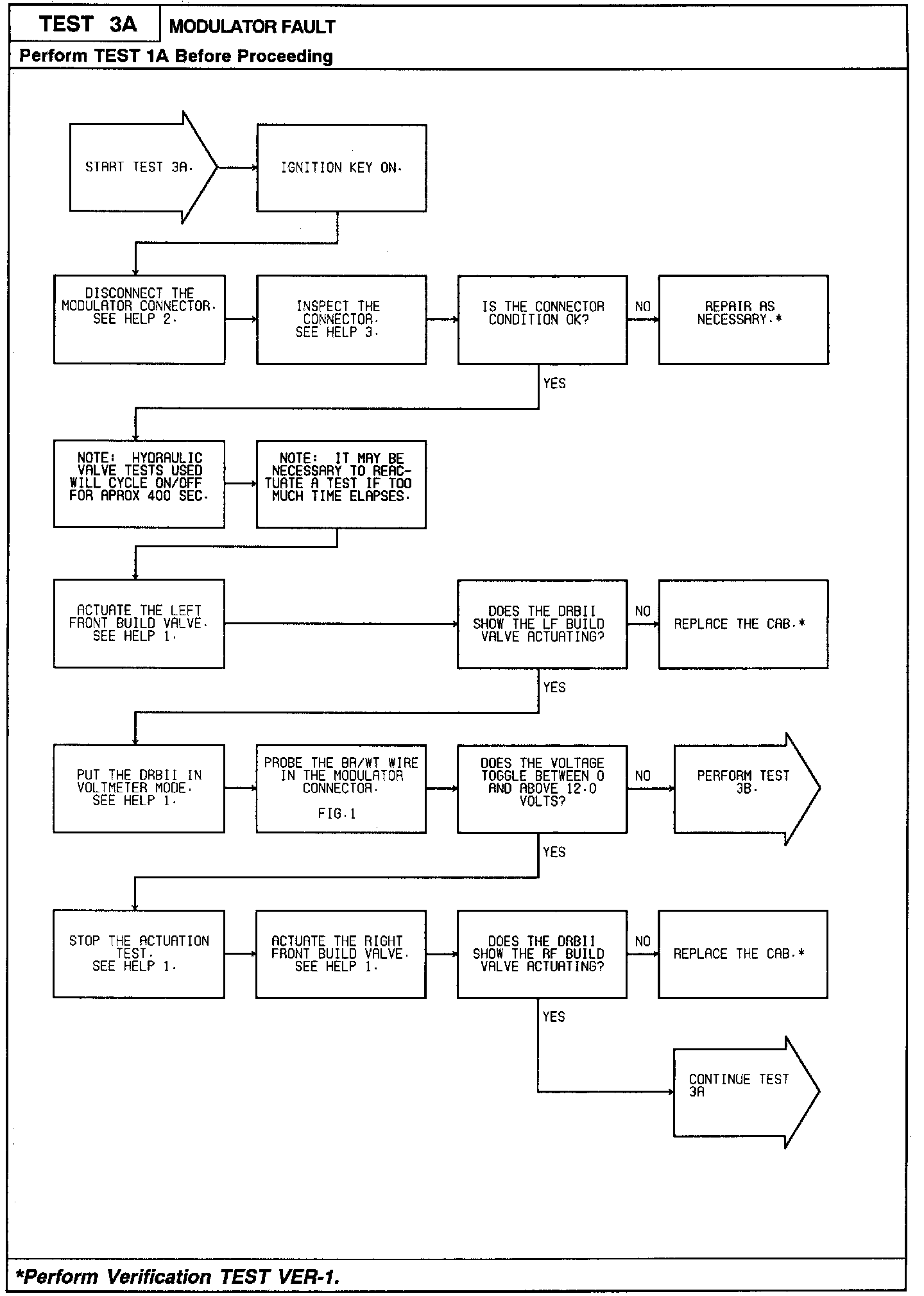

Fig. 91 Test 3A Part 1 Of 4:

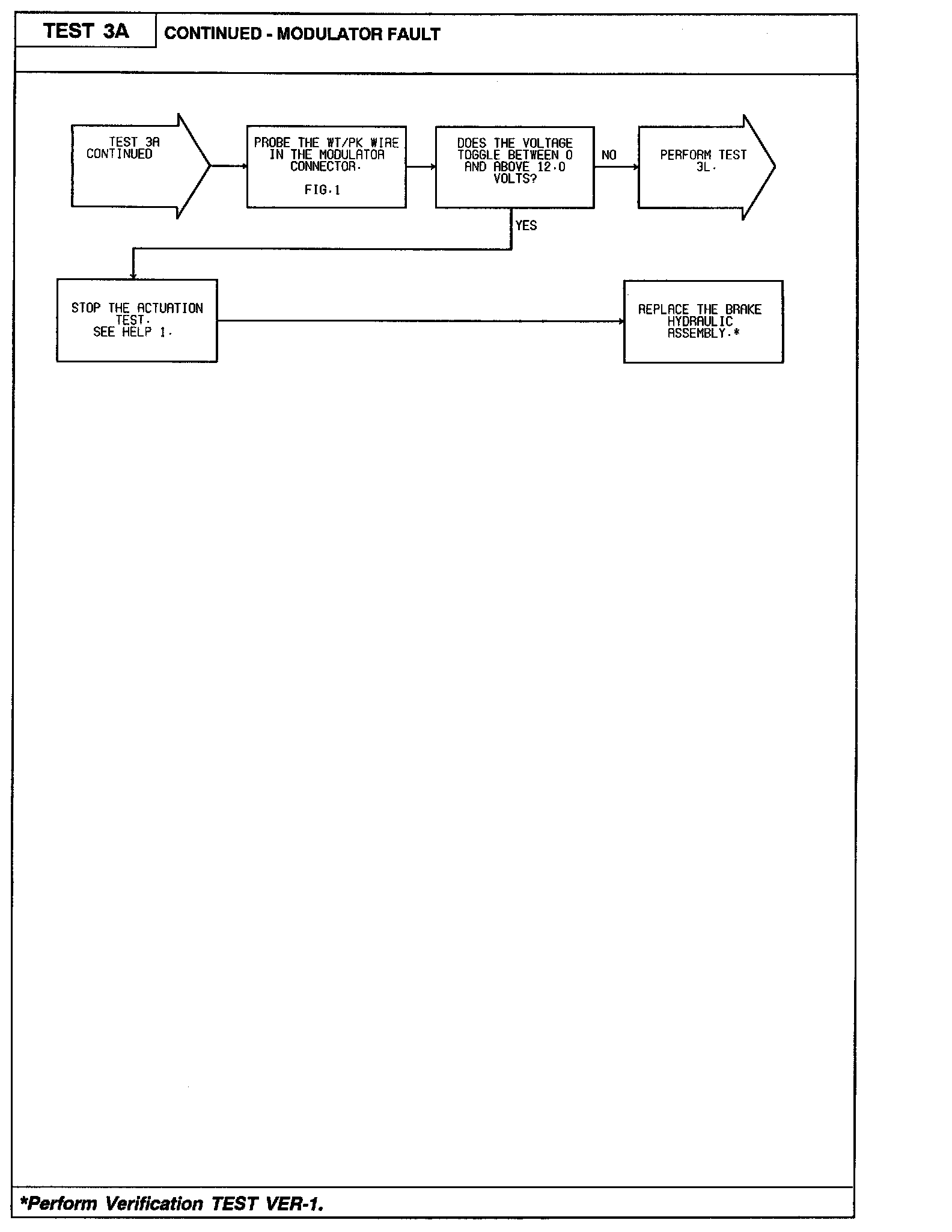

Fig. 91 Test 3A Part 2 Of 4:

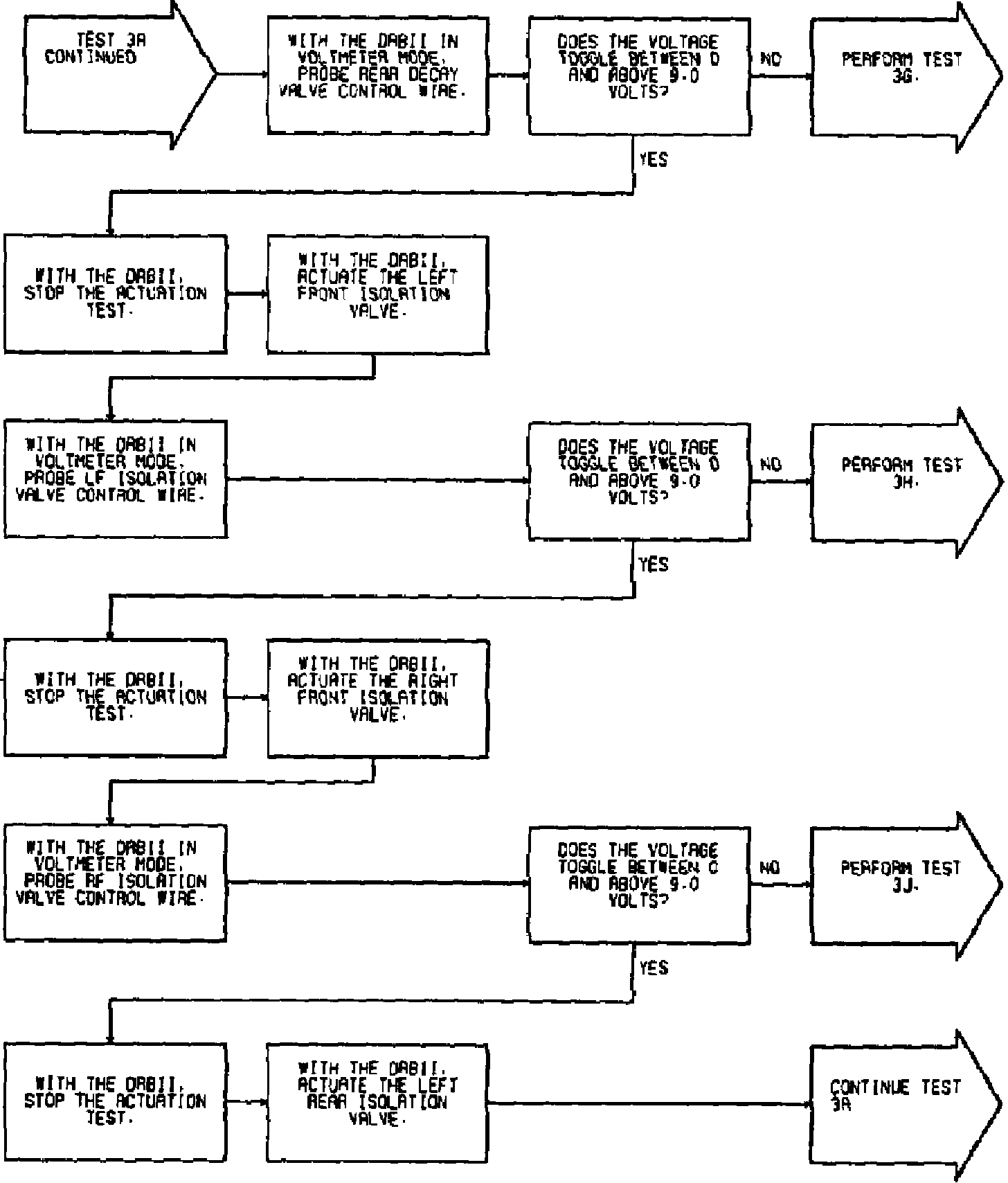

Fig. 91 Test 3A Part 3 Of 4:

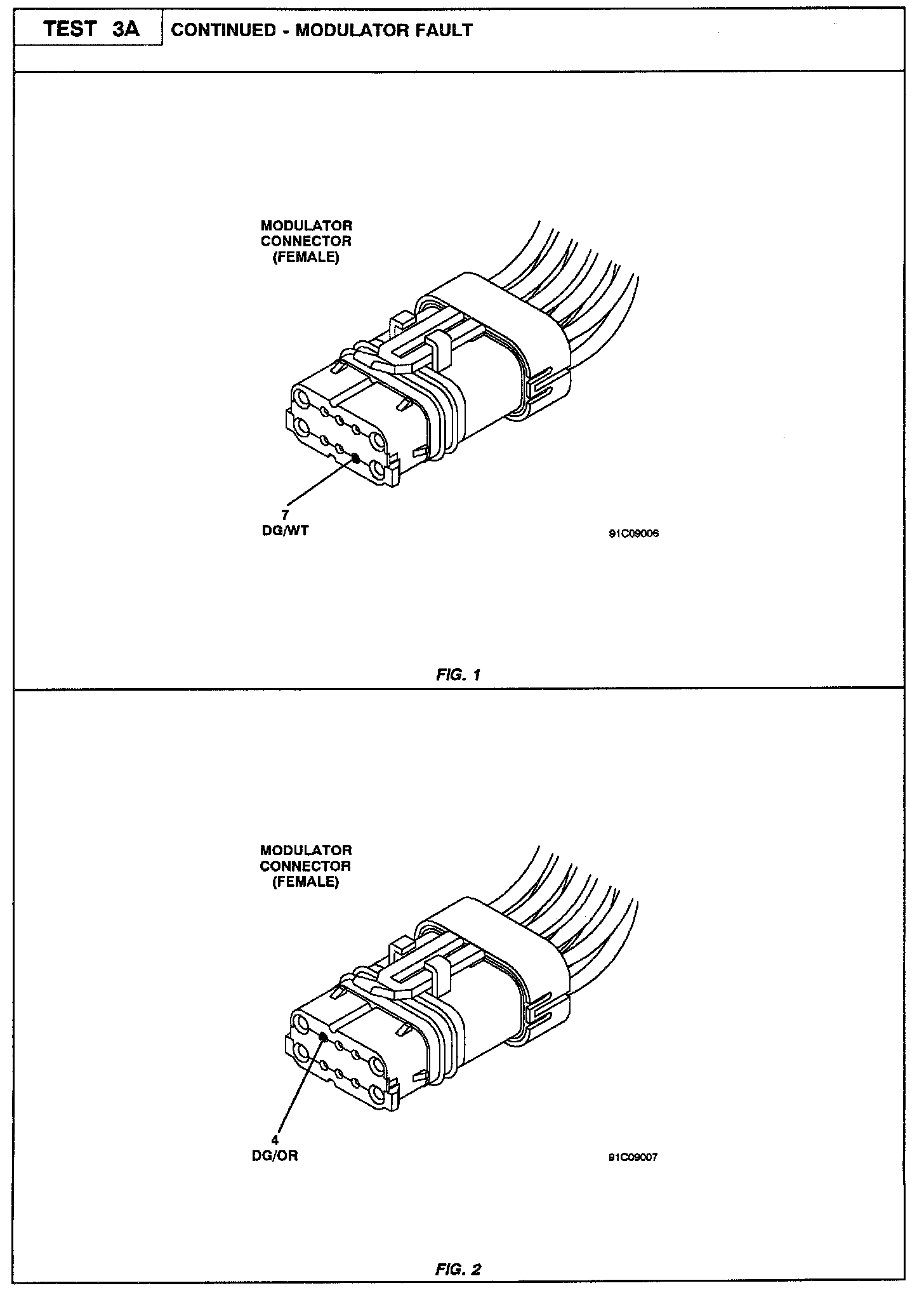

Fig. 91 Test 3A Part 4 Of 4:
