Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 2A - CAB Fault Test

Test 2A - CAB Fault Test

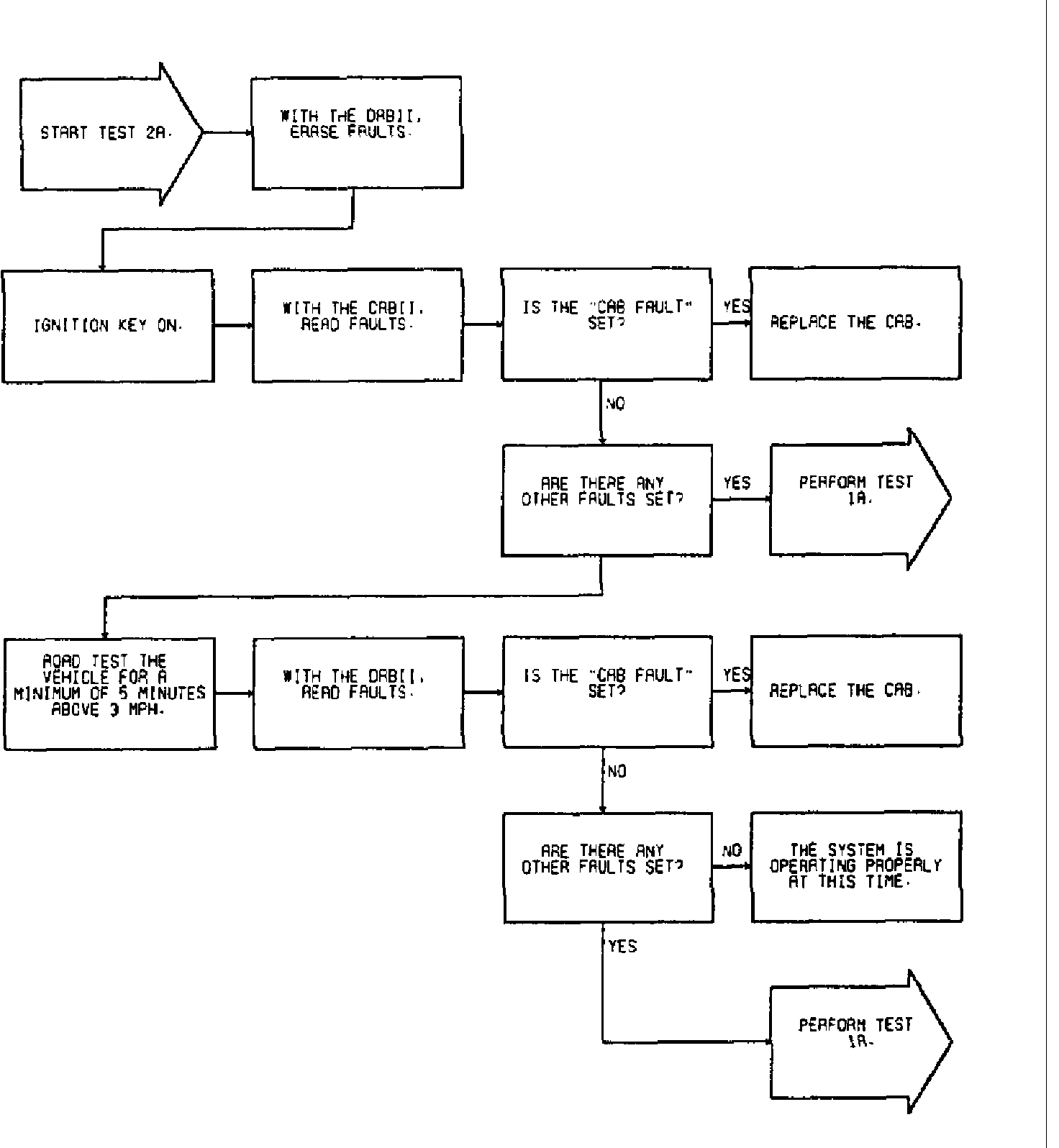

Fig. 90 Test 2A:
