Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 24A - Stop Lamp Switch Input Test

Test 24A - Stop Lamp Switch Input Test

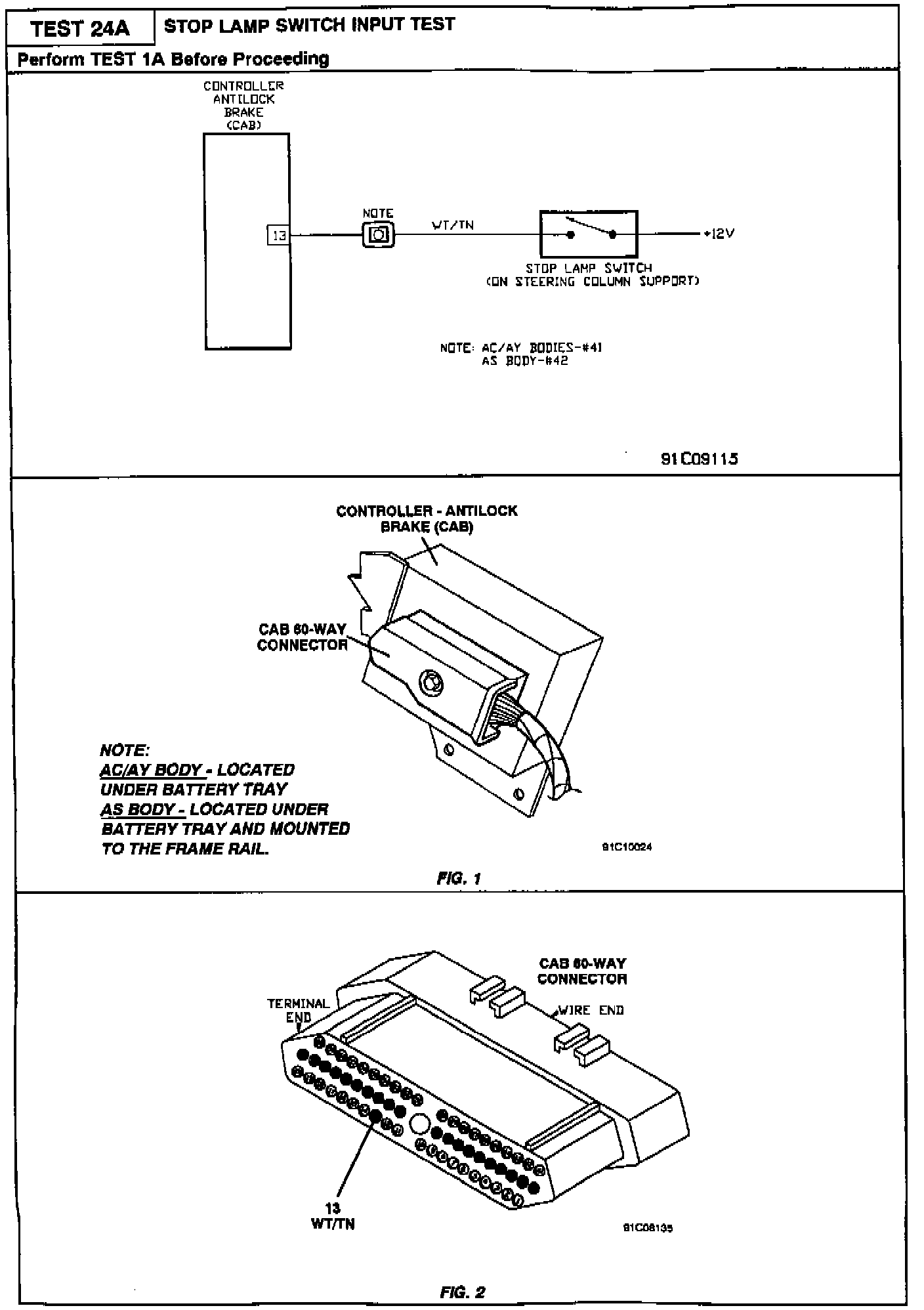

Image:



Chart:
