Airbag System
>>
9C For "Front Sensor Short" Code
9C For "Front Sensor Short" Code

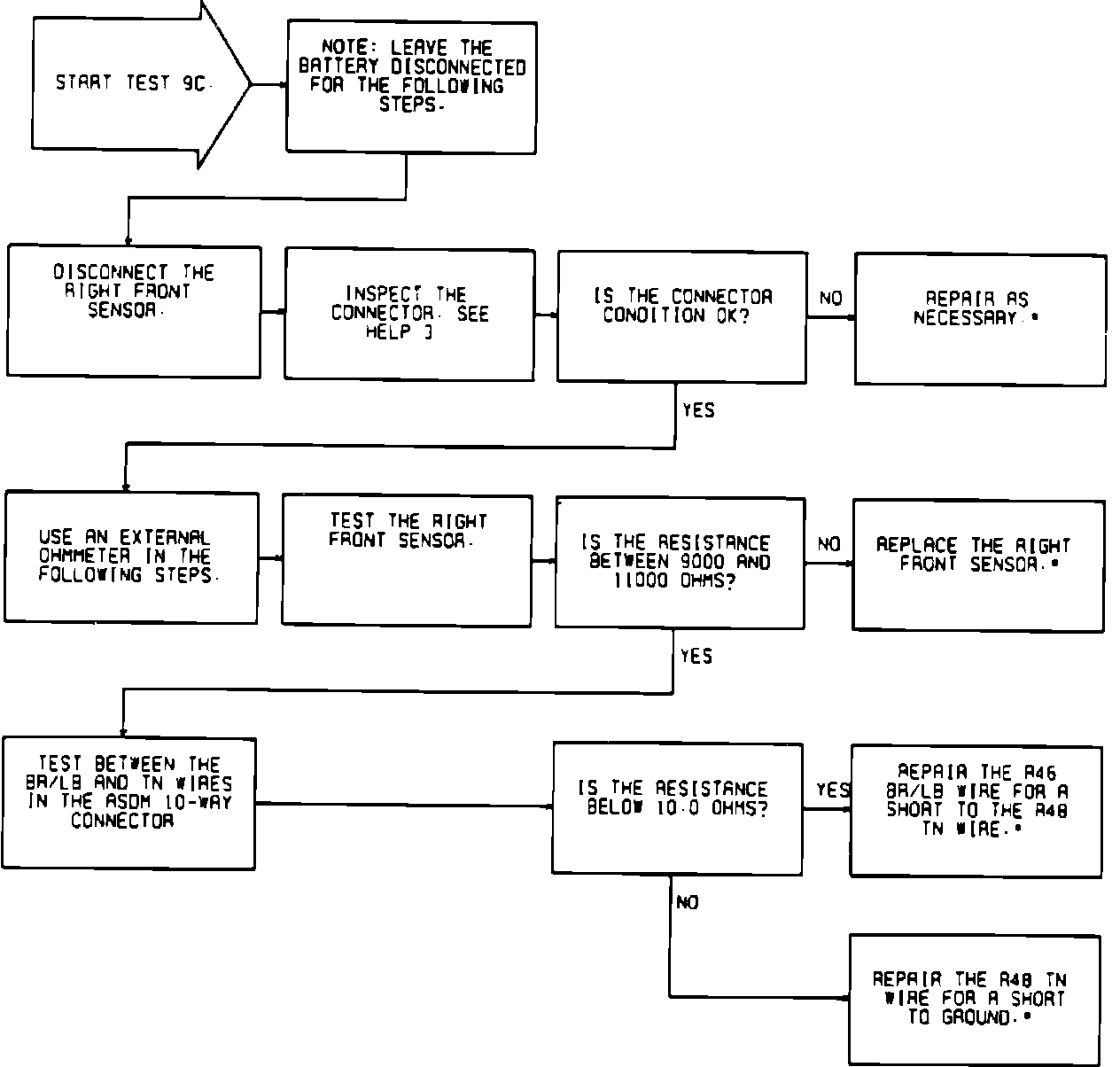

Fig. 30 Test 9C, Testing For ``Front Sensor Short'' Code:
