9A For "Front Sensor Short Code

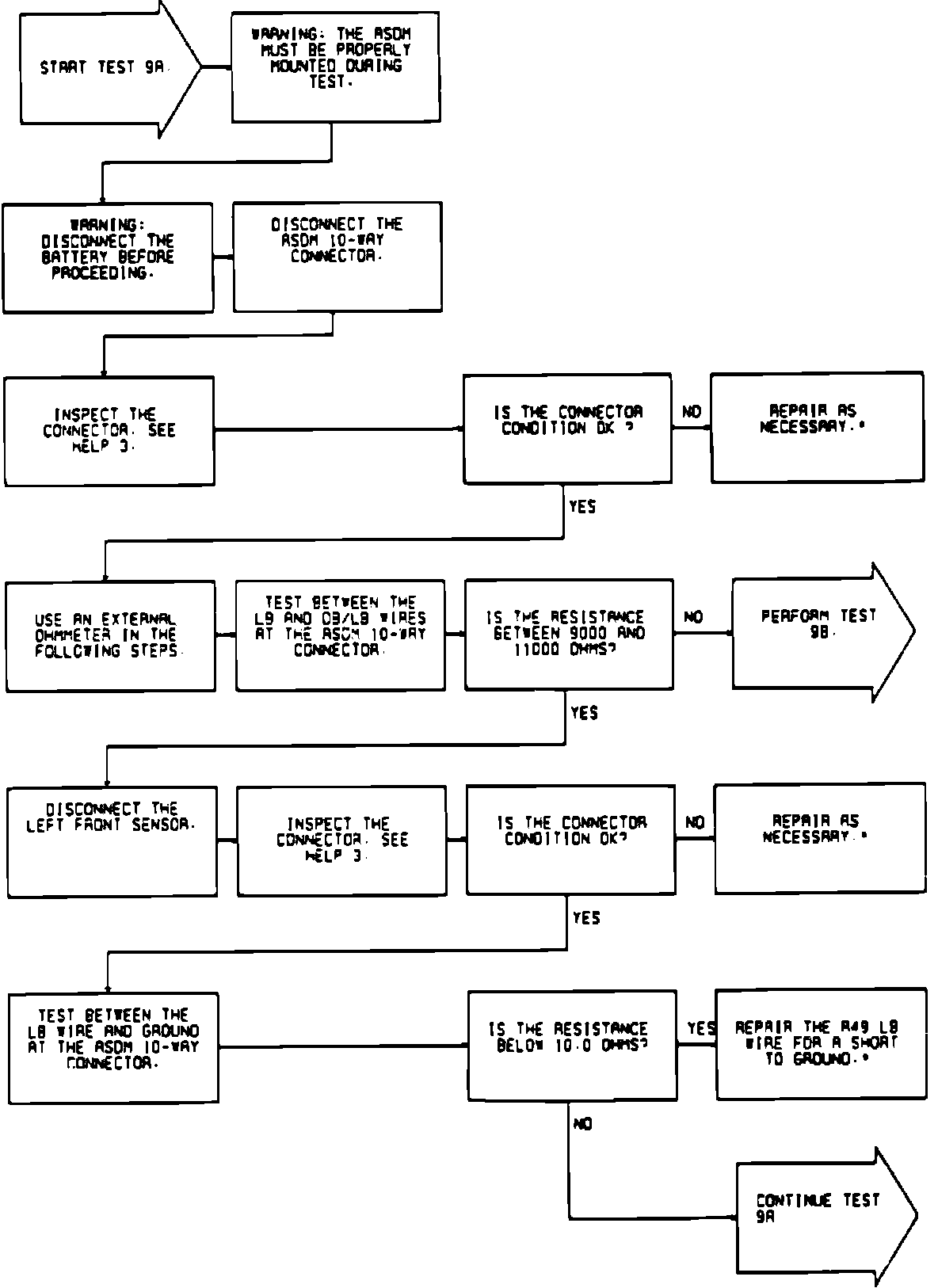

Fig. 28 Test 9A, Testing For ``Front Sensor Short'' Code (Part 1 Of 3):

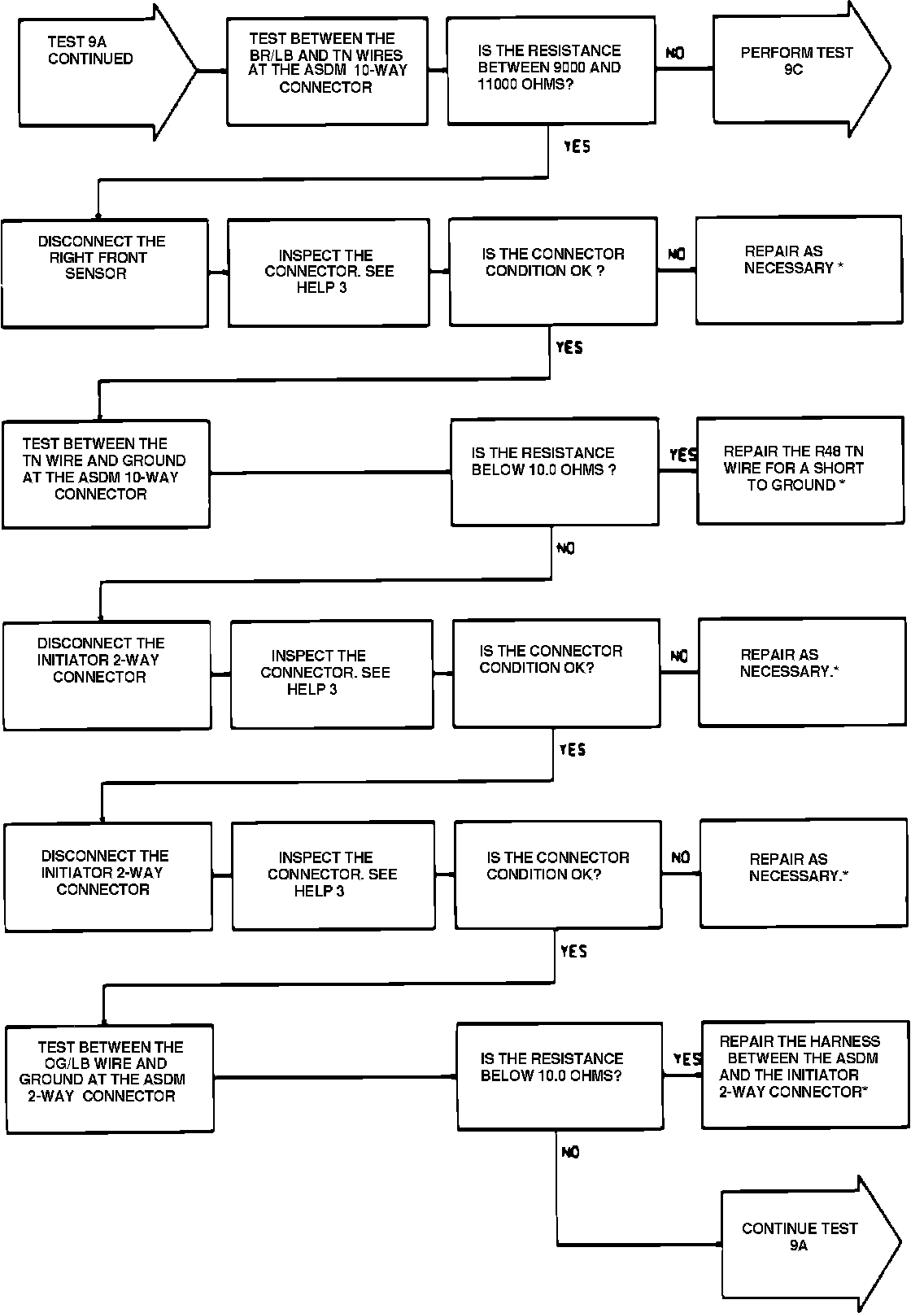

Fig. 28 Test 9A, Testing For ``Front Sensor Short'' Code (Part 2 Of 3):

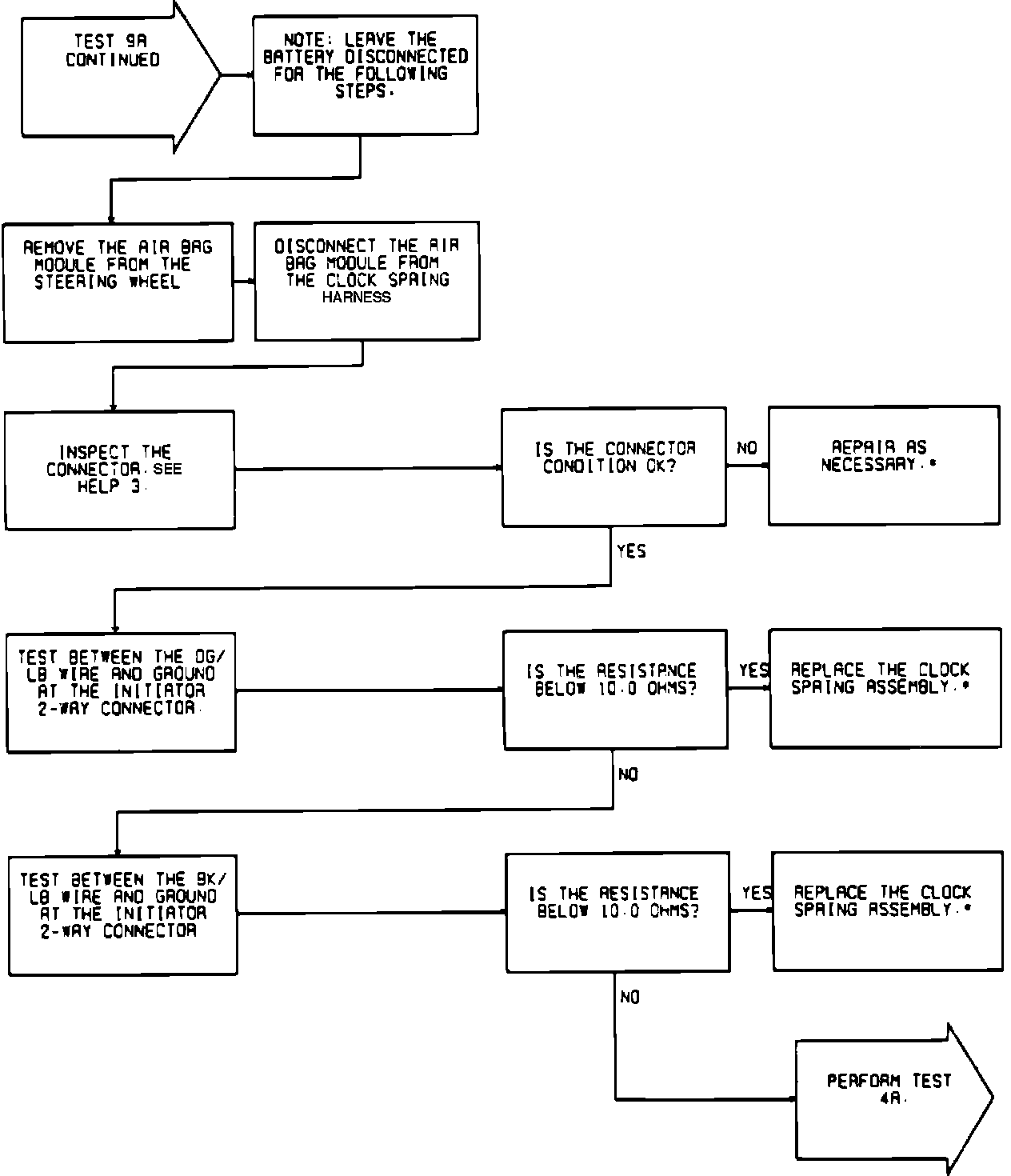

Fig. 28 Test 9A, Testing For ``Front Sensor Short'' Code (Part 3 Of 3):
