7 Required For "Squib (Initiator) Short" Fault

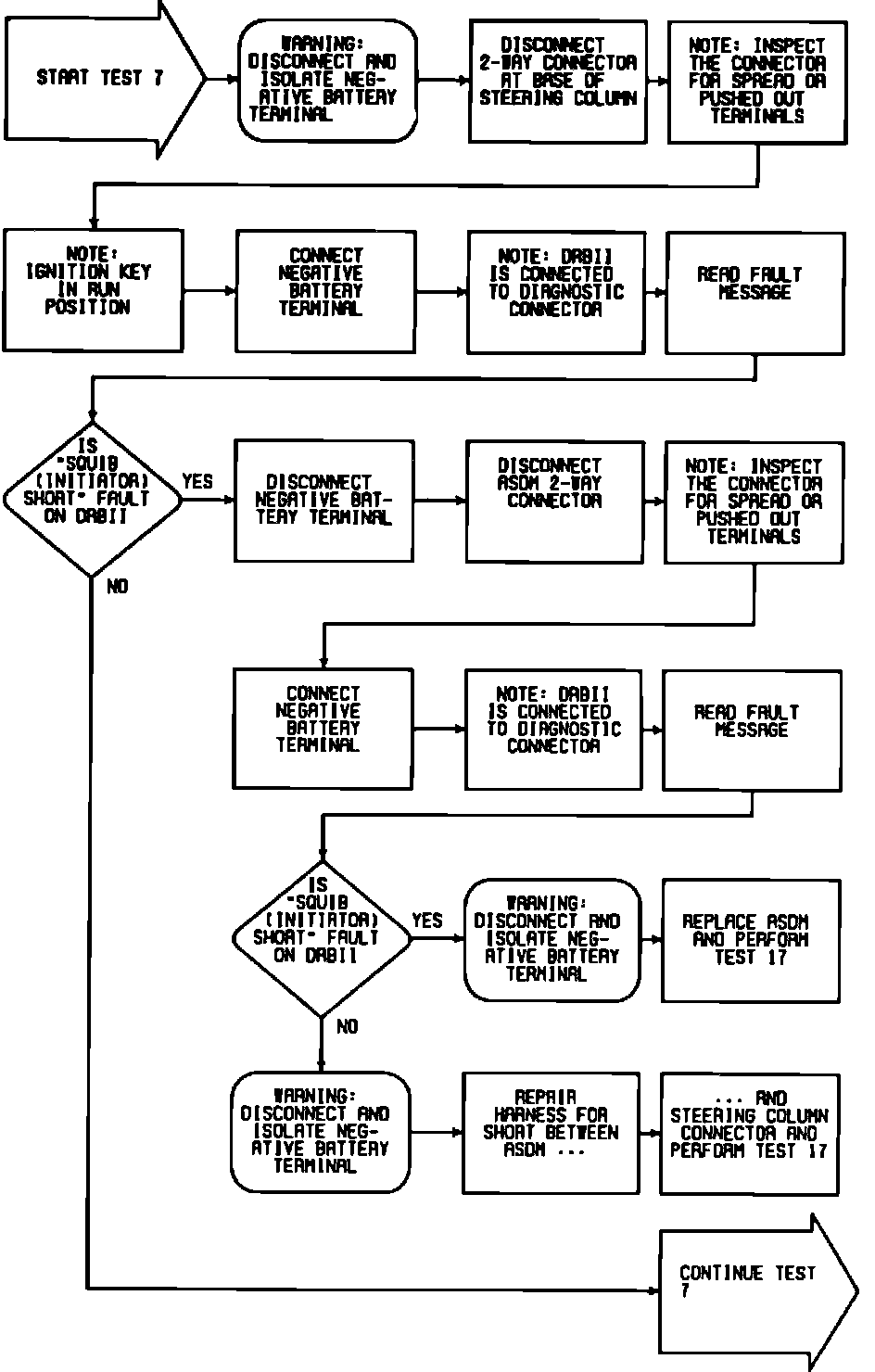

Fig. 23 Test 7, Repair Required For ``Squib (Initiator) Short'' Fault (Part 1 Of 2):

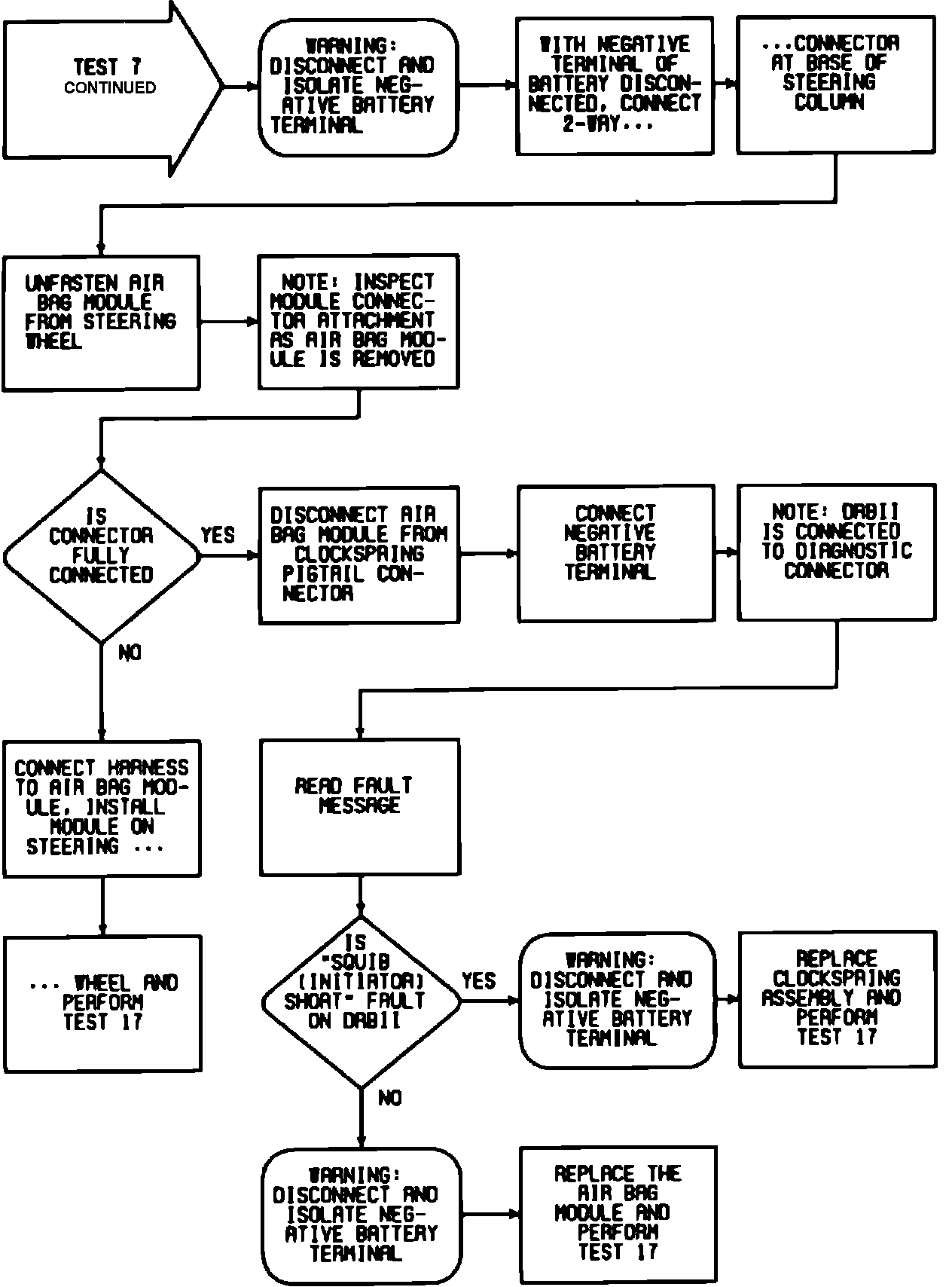

Fig. 23 Test 7, Repair Required For ``Squib (Initiator) Short'' Fault (Part 2 Of 2):
