6A For "Squib (Initiator) Open" Code

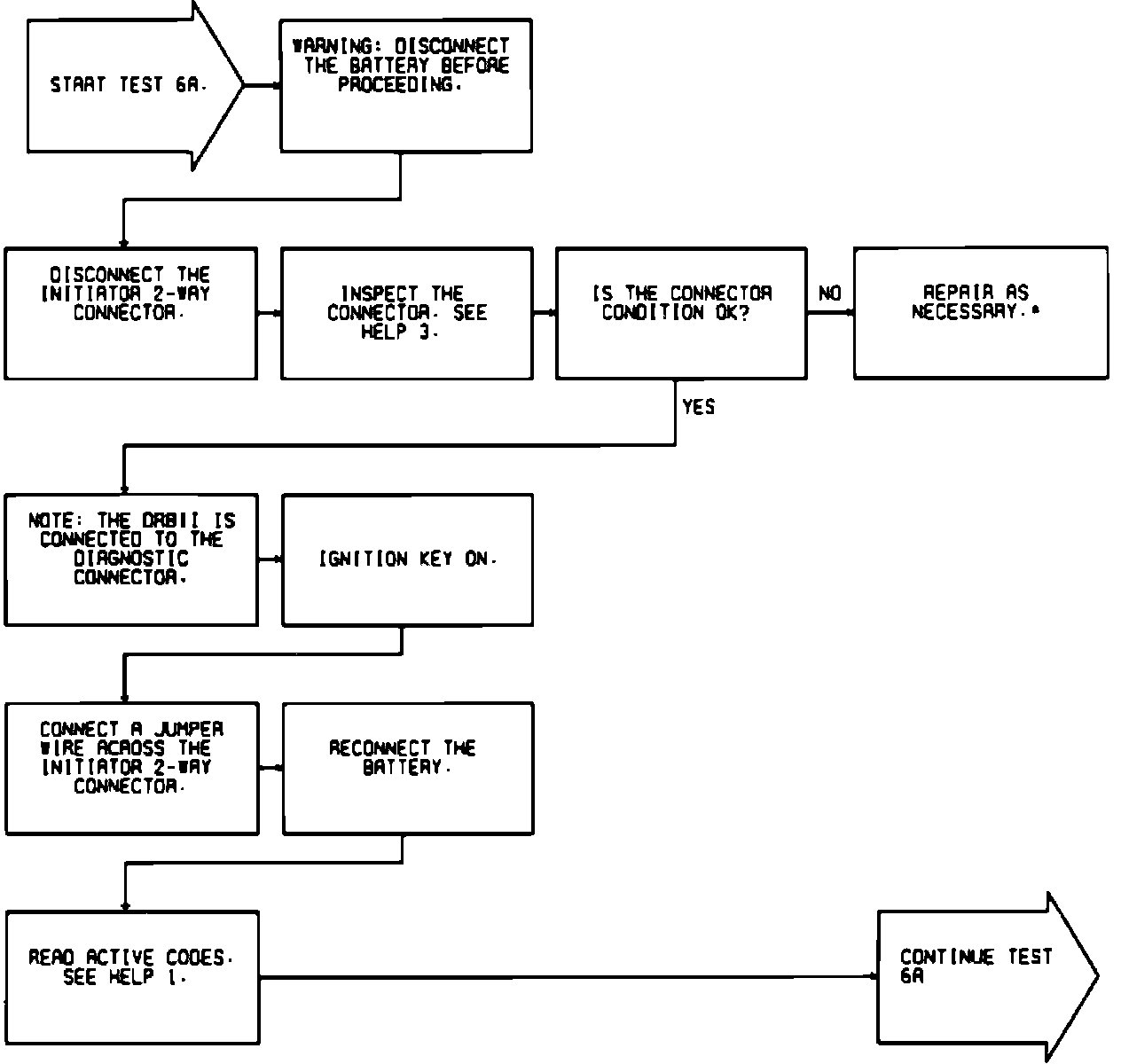

Fig. 22 Test 6A, Testing For ``Squib (Initiator) Open'' Code (Part 1 Of 3):

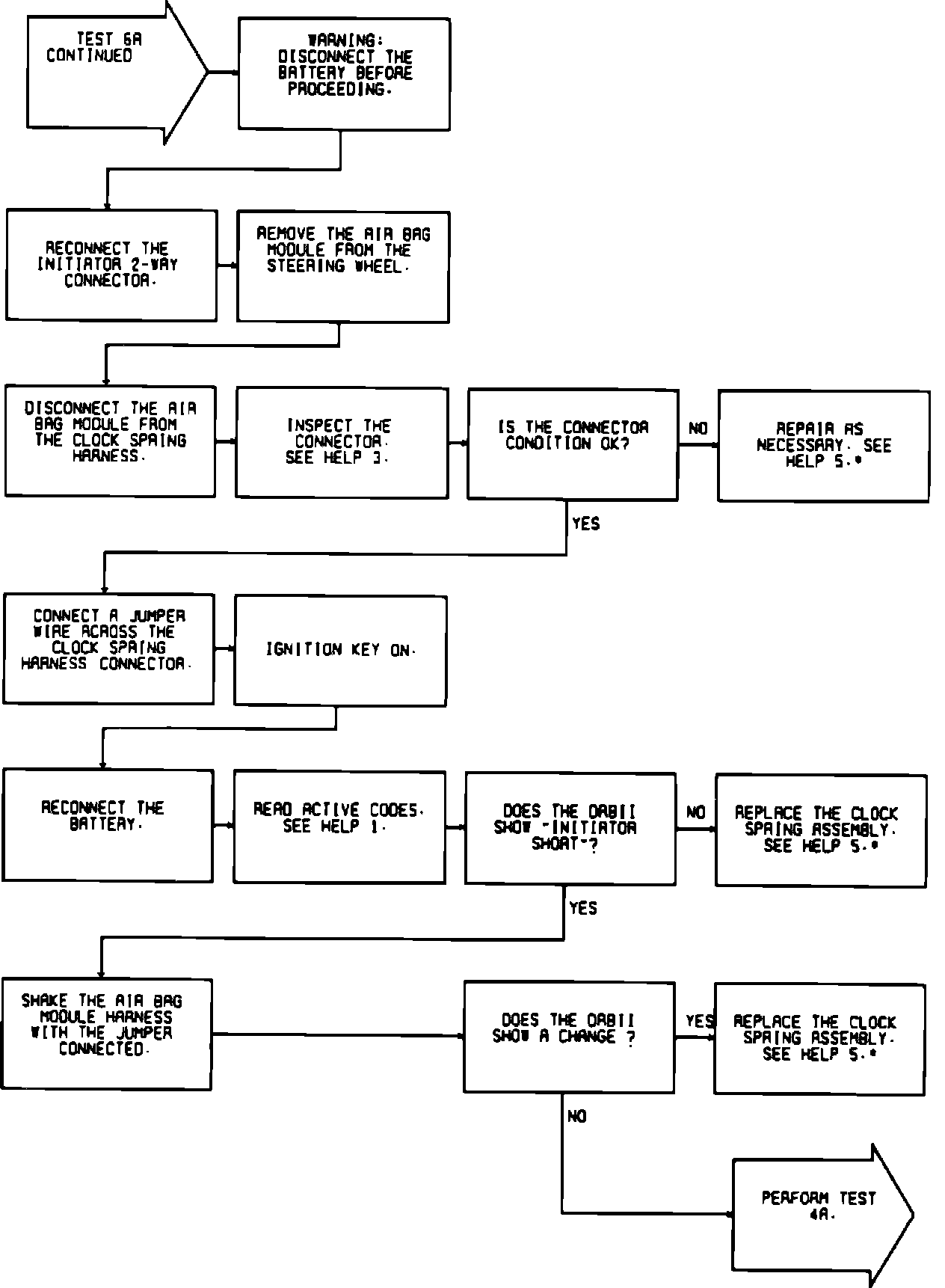

Fig. 22 Test 6A, Testing For ``Squib (Initiator) Open'' Code (Part 2 Of 3):

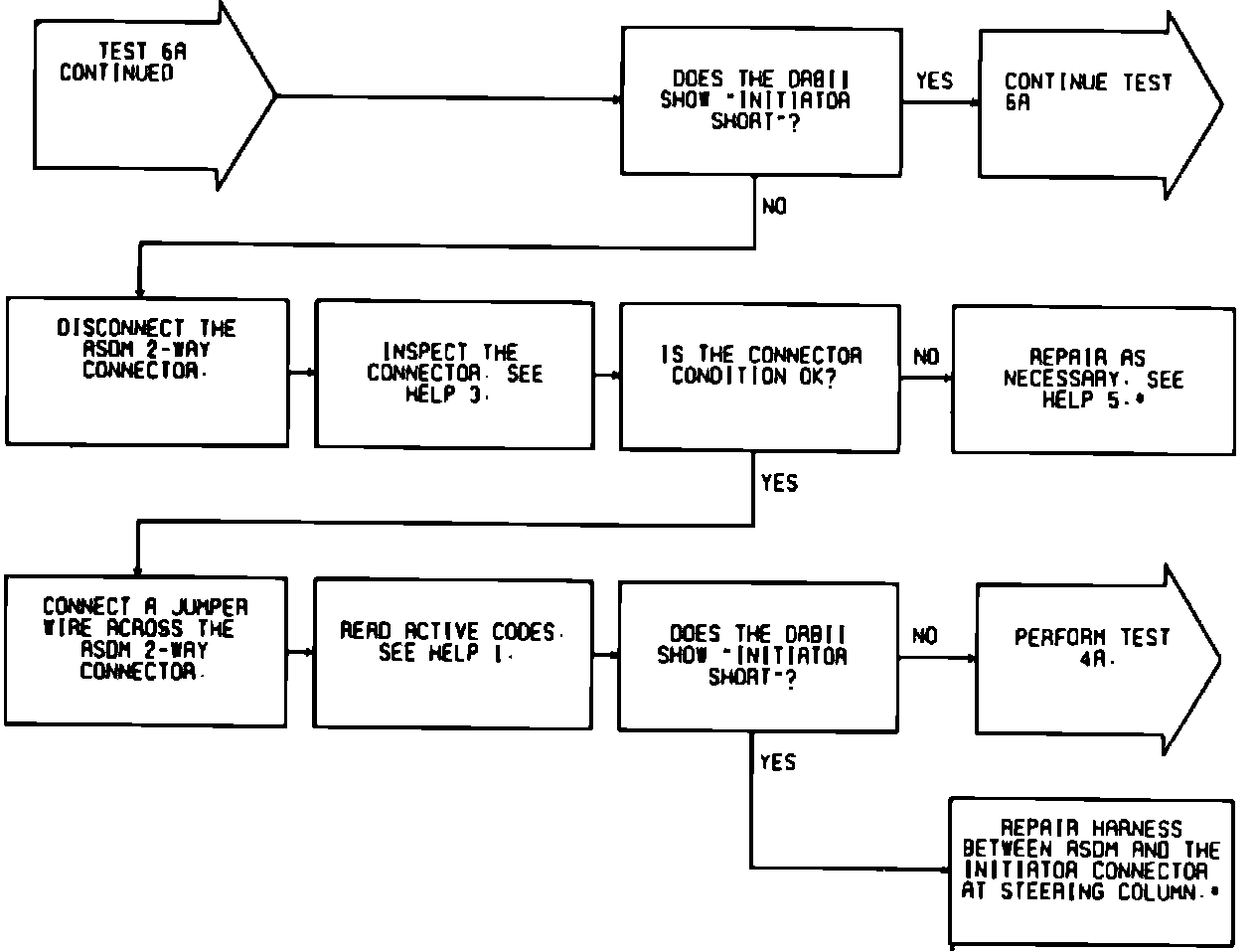

Fig. 22 Test 6A, Testing For ``Squib (Initiator) Open'' Code (Part 3 Of 3):
