6 Required For "Squib (Initiator) Open" Fault

Fig. 21 Test 6, Repair Required For ``Squib (Initiator) Open'' Fault (Part 1 Of 3):

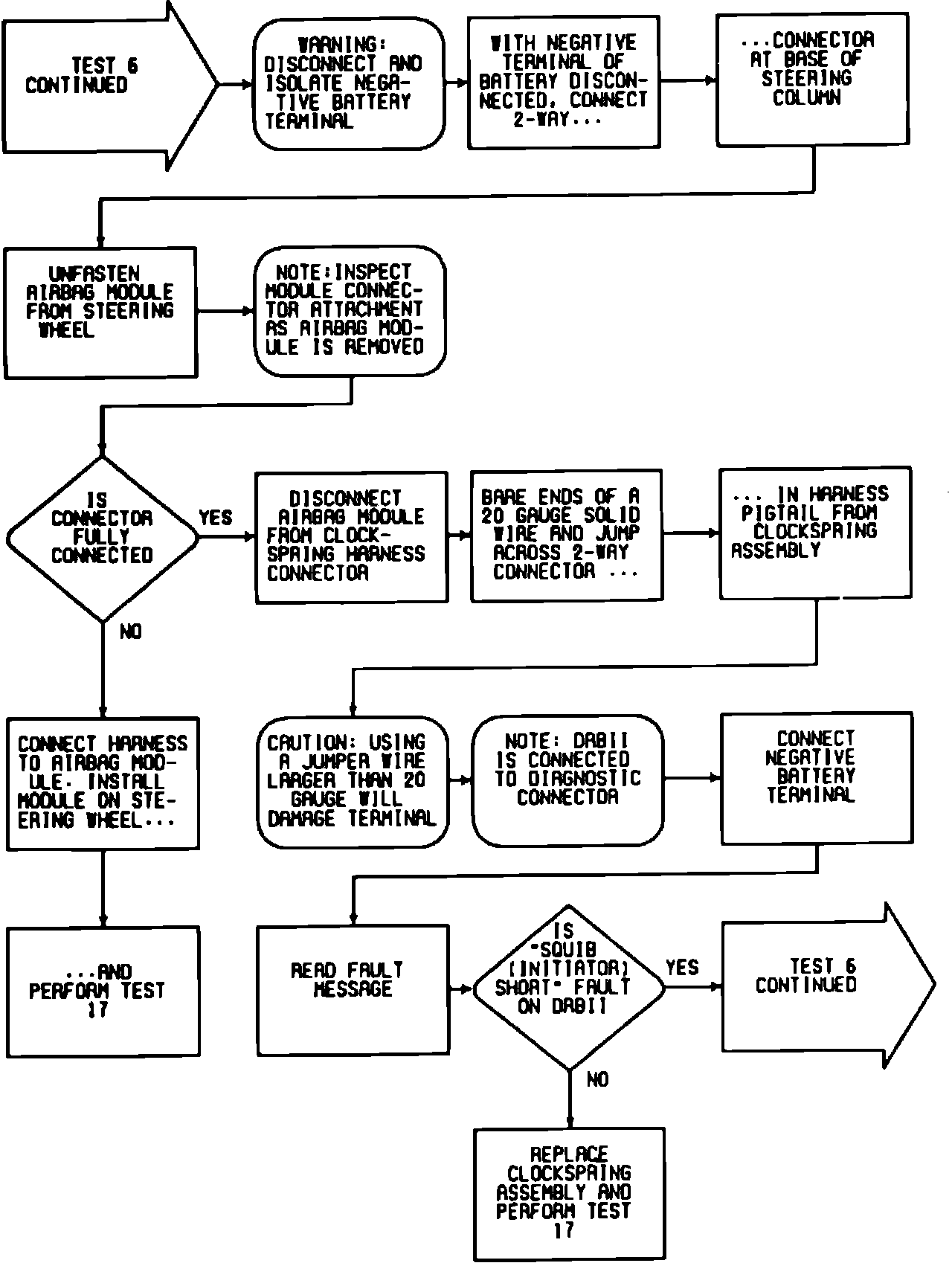

Fig. 21 Test 6, Repair Required For ``Squib (Initiator) Open'' Fault (Part 2 Of 3):

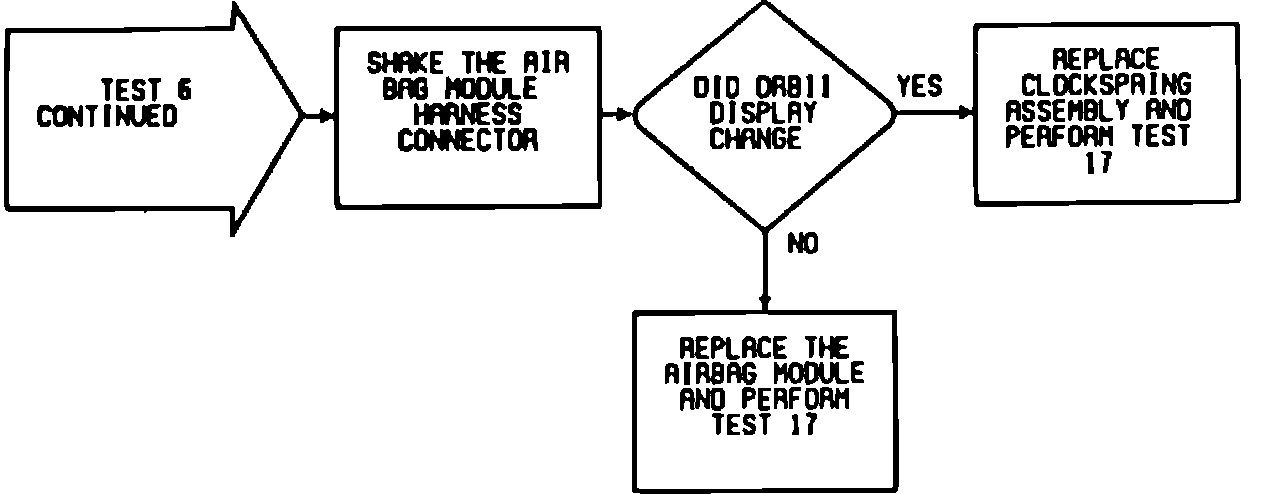

Fig. 21 Test 6, Repair Required For ``Squib (Initiator) Open'' Fault (Part 3 Of 3):
