5B For Two Front Sensors Open Code

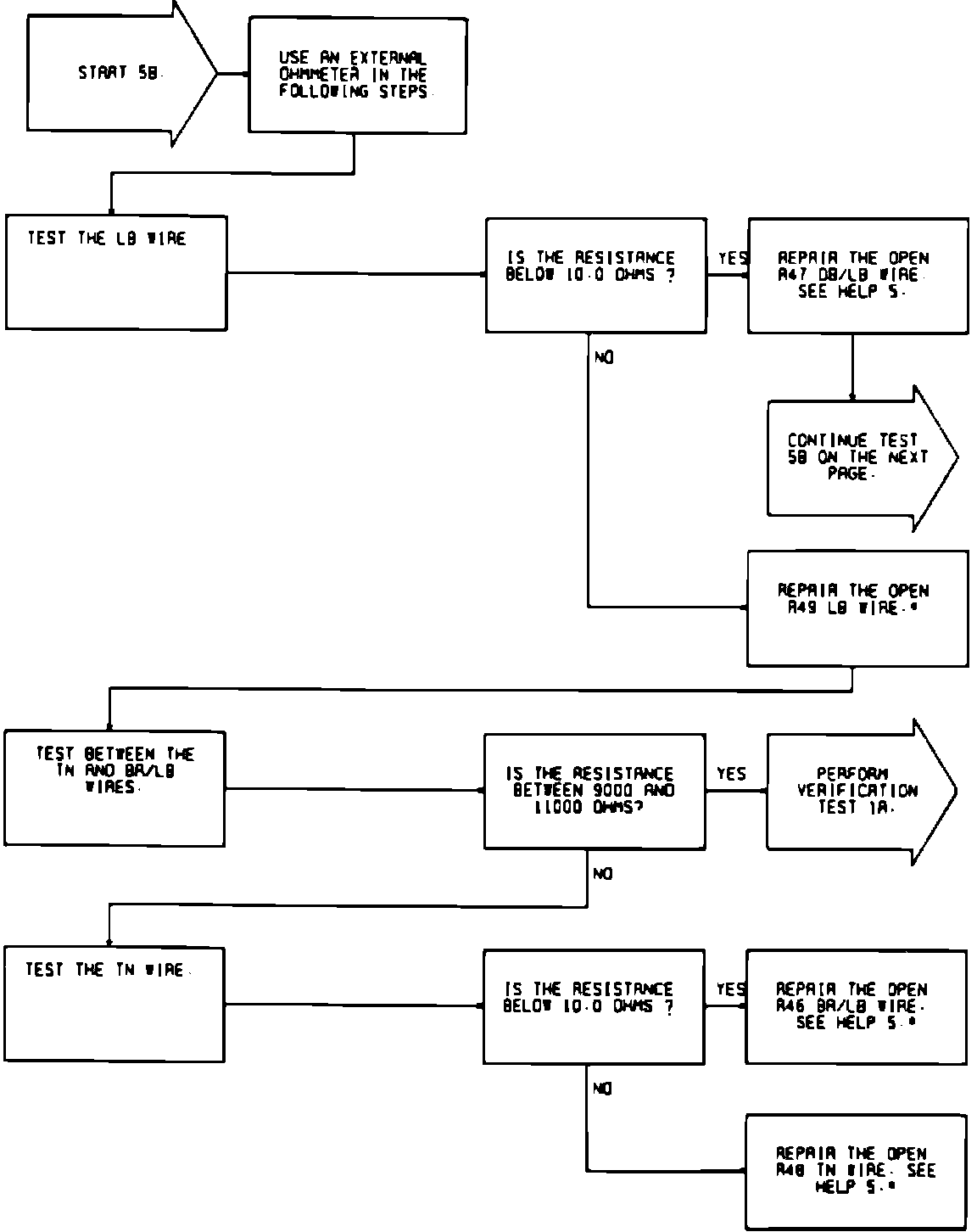

Fig. 20 Test 5B, Testing For Two Front Sensors Open Code (Part 1 Of 2):

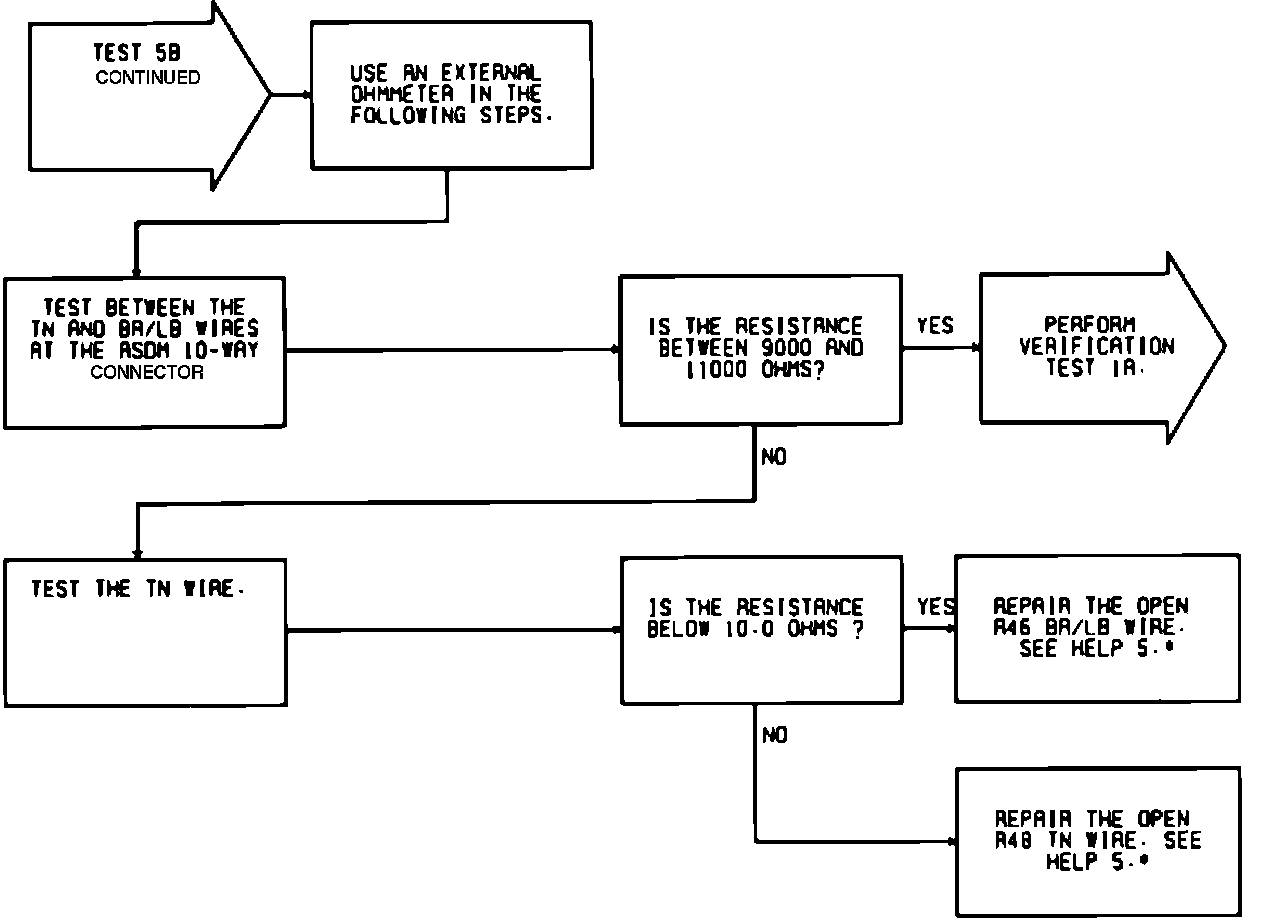

Fig. 20 Test 5B, Testing For Two Front Sensors Open Code (Part 2 Of 2):
