5A Testing For Two Front Sensors Open Code

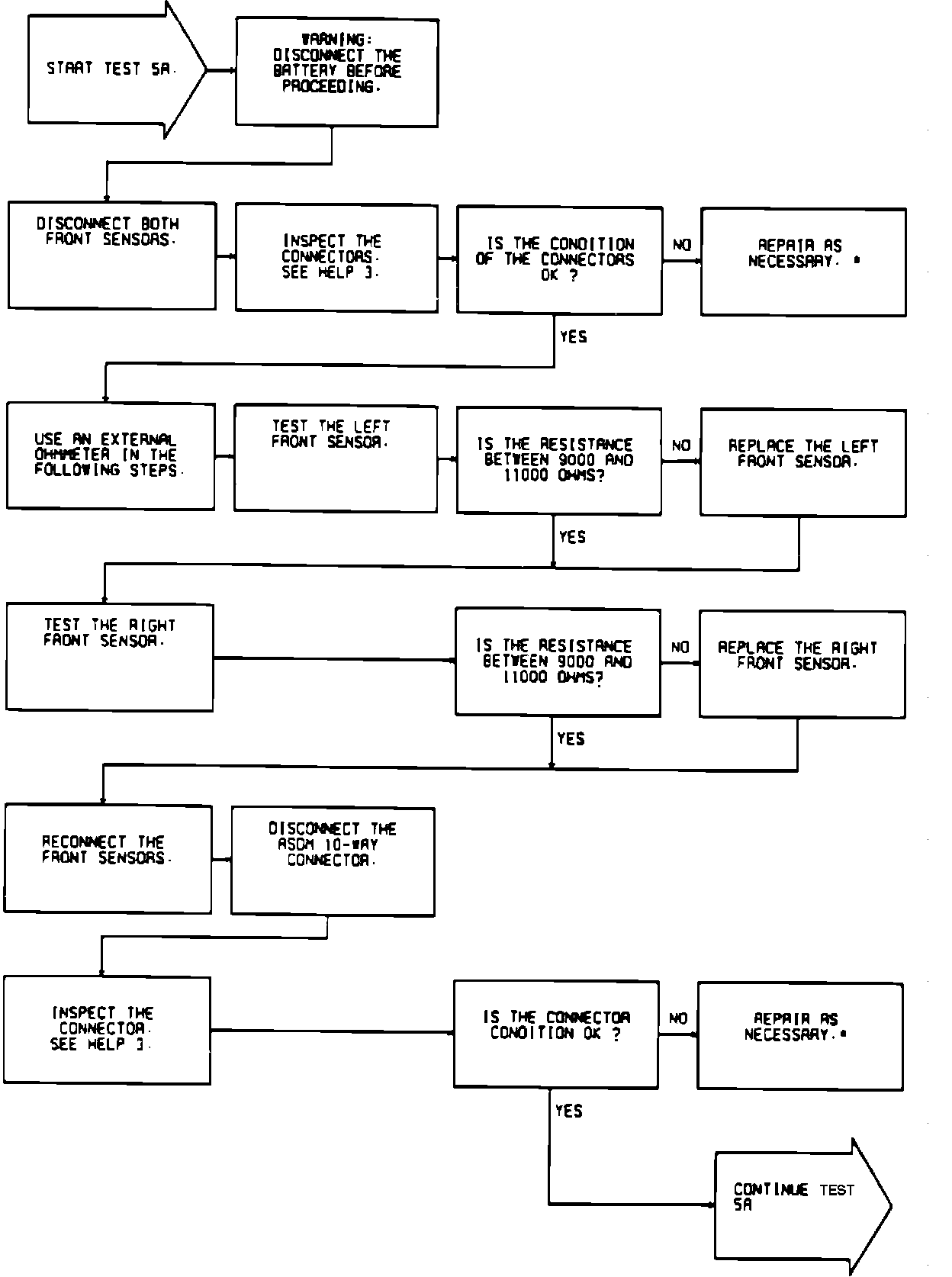

Fig. 19 Test 5A, Testing For Two Front Sensors Open Code (Part 1 Of 3):

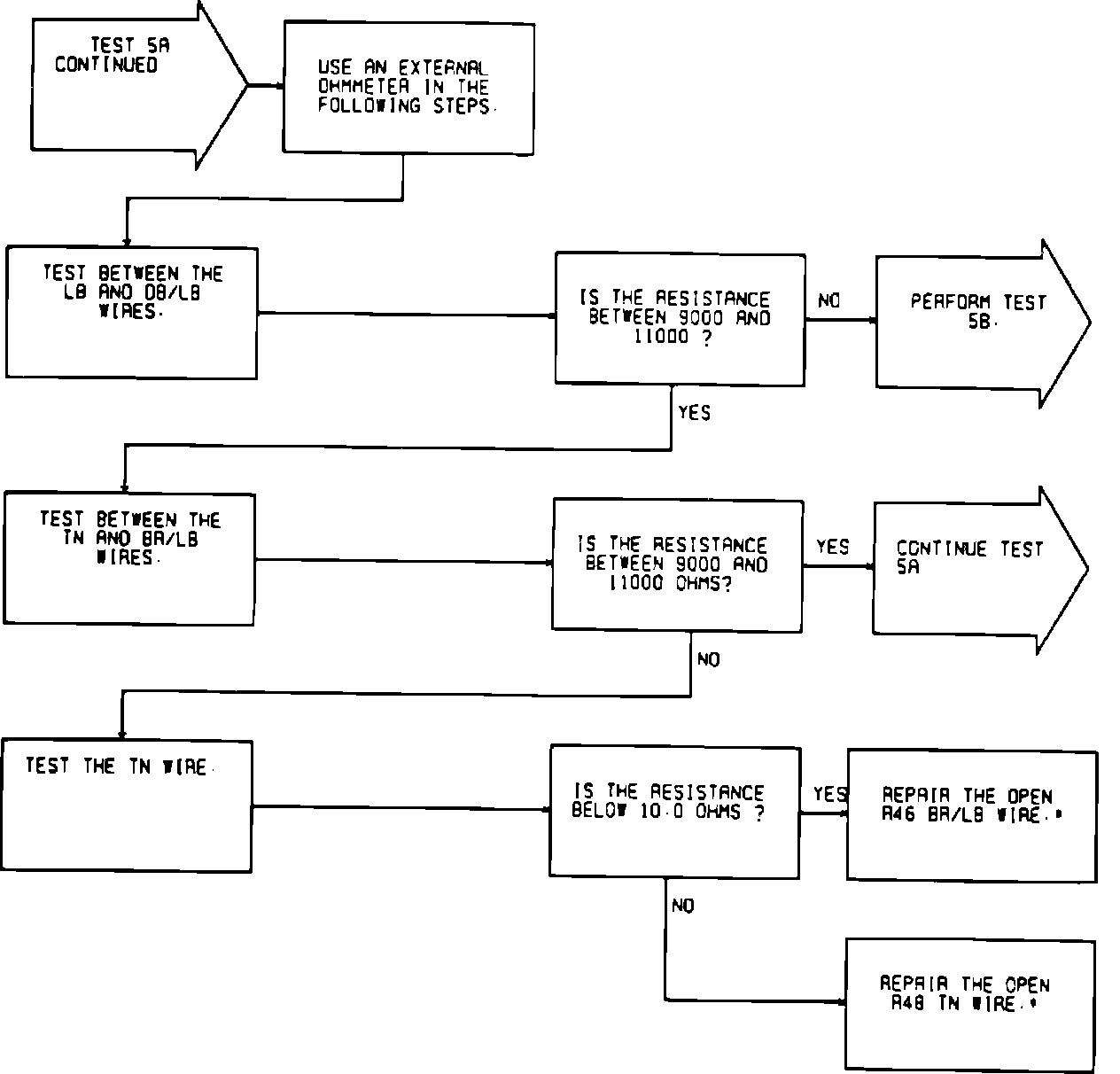

Fig. 19 Test 5A, Testing For Two Front Sensors Open Code (Part 2 Of 3):

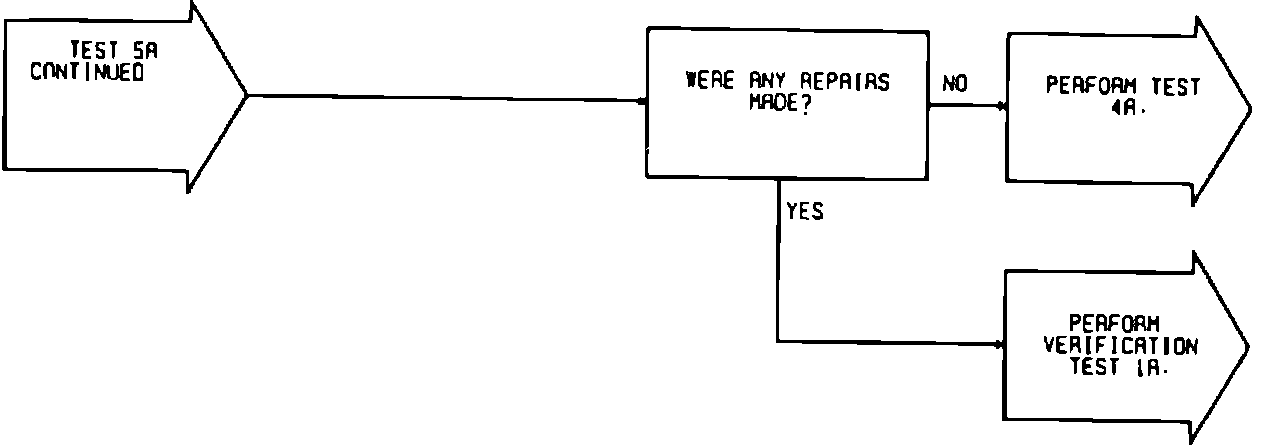

Fig. 19 Test 5A, Testing For Two Front Sensors Open Code (Part 3 Of 3):
