5 Required For "Two Front Sensors Open" Fault

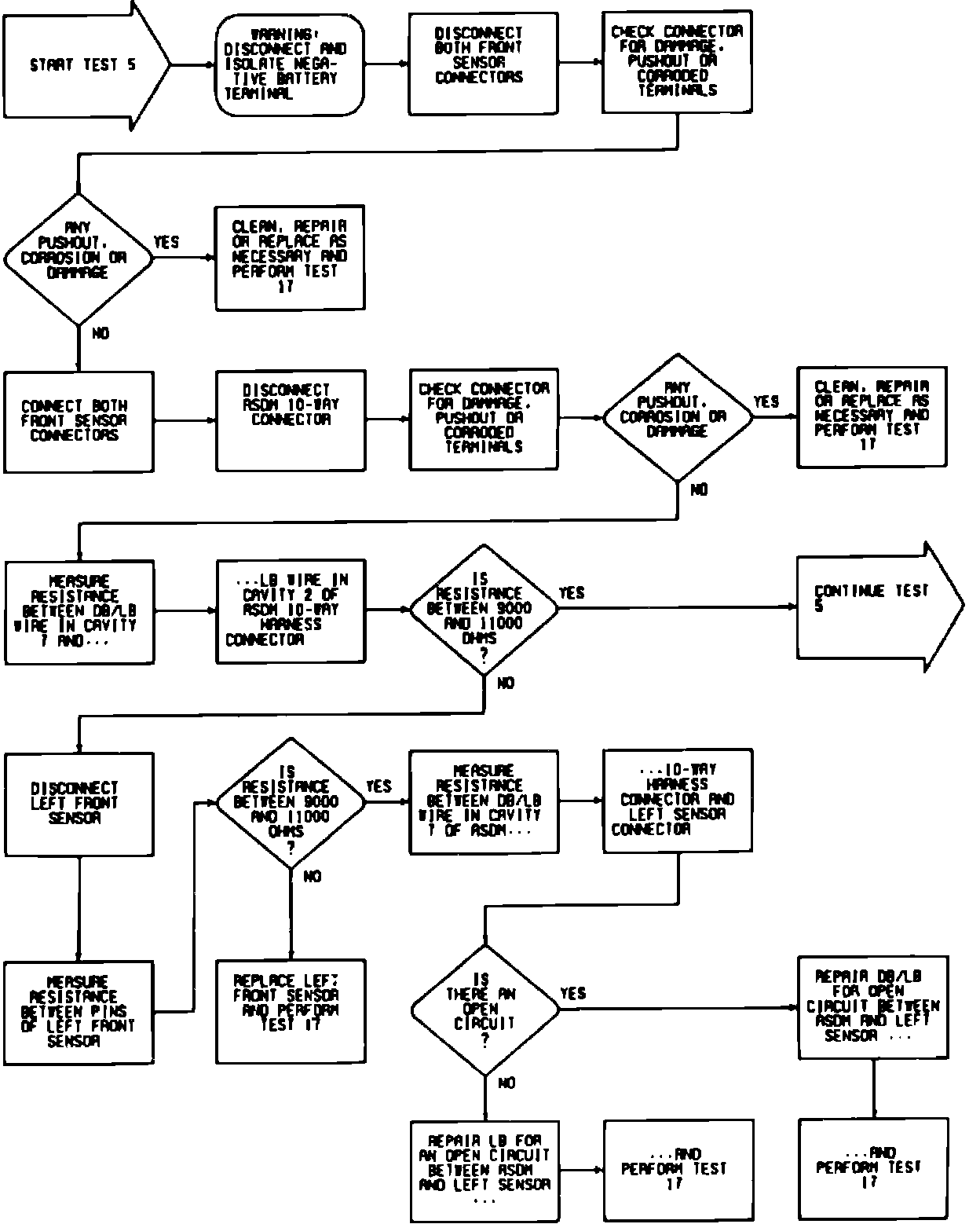

Fig. 18 Test 5, Repair Required For ``Two Front Sensors Open'' Fault (Part 1 Of 2):

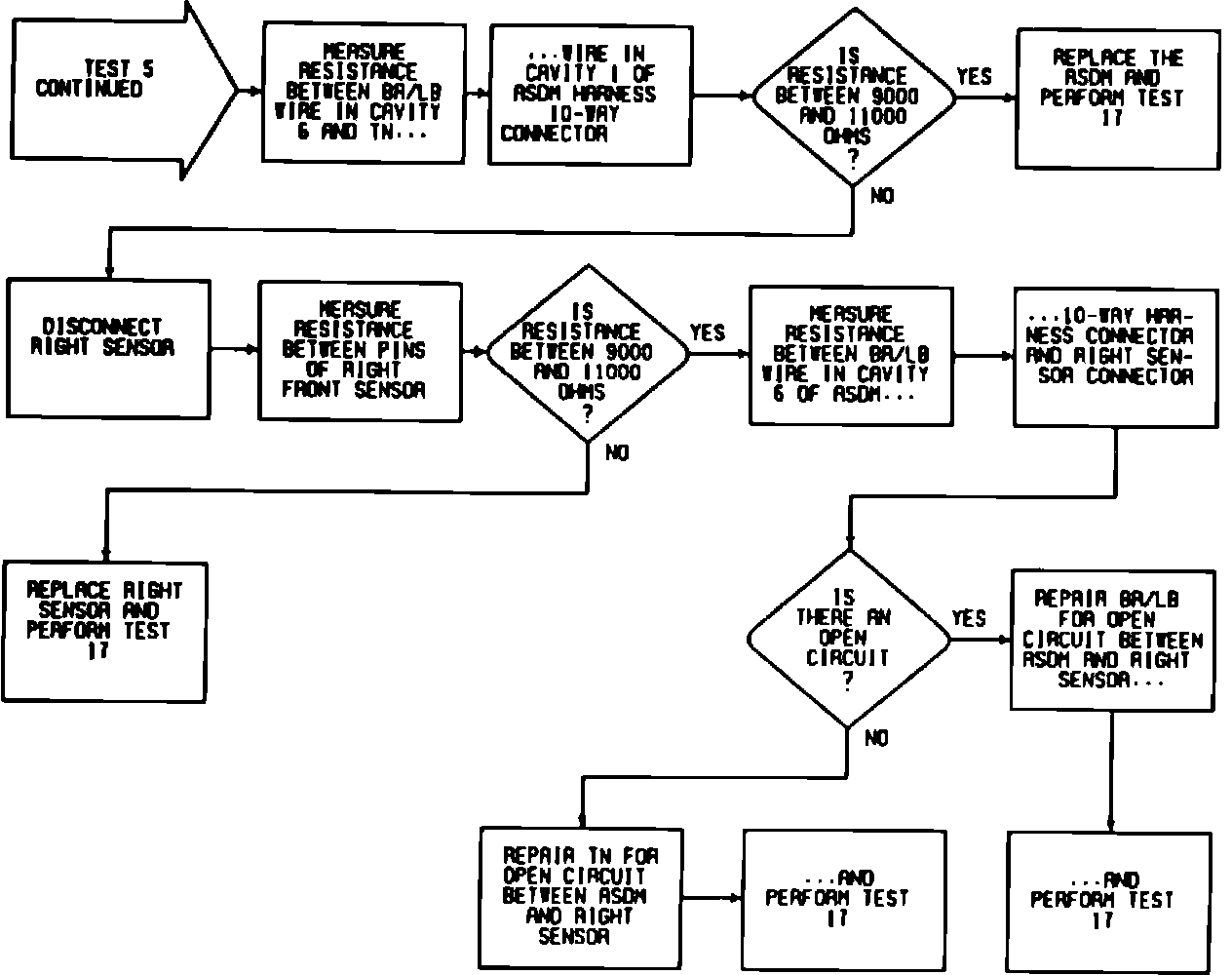

Fig. 18 Test 5, Repair Required For ``Two Front Sensors Open'' Fault (Part 2 Of 2):
