4 Repair Required For "Safing Sensor Open" Fault

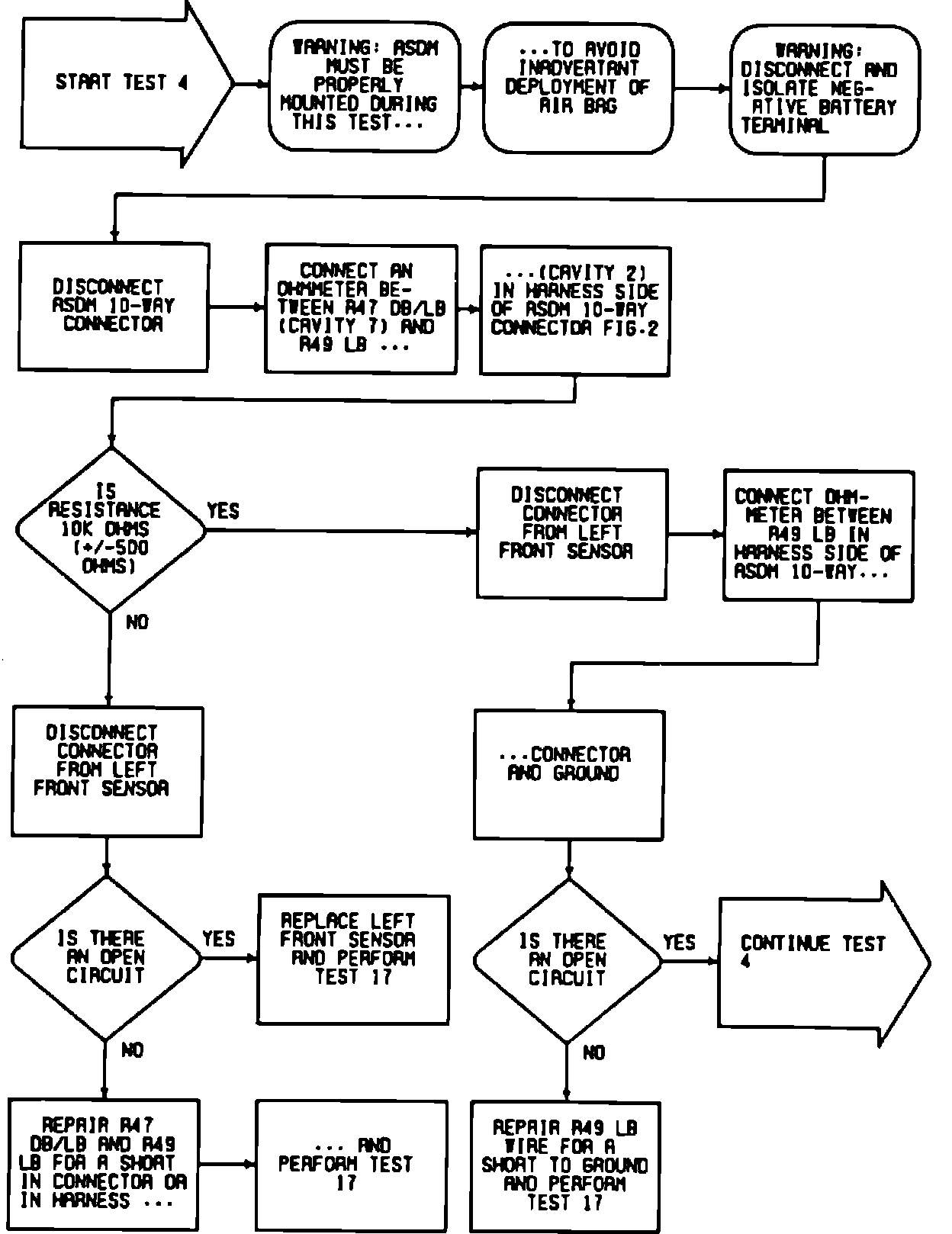

Fig. 16 Test 4, Repair Required For ``Safing Sensor Open'' Fault (Part 1 Of 2):

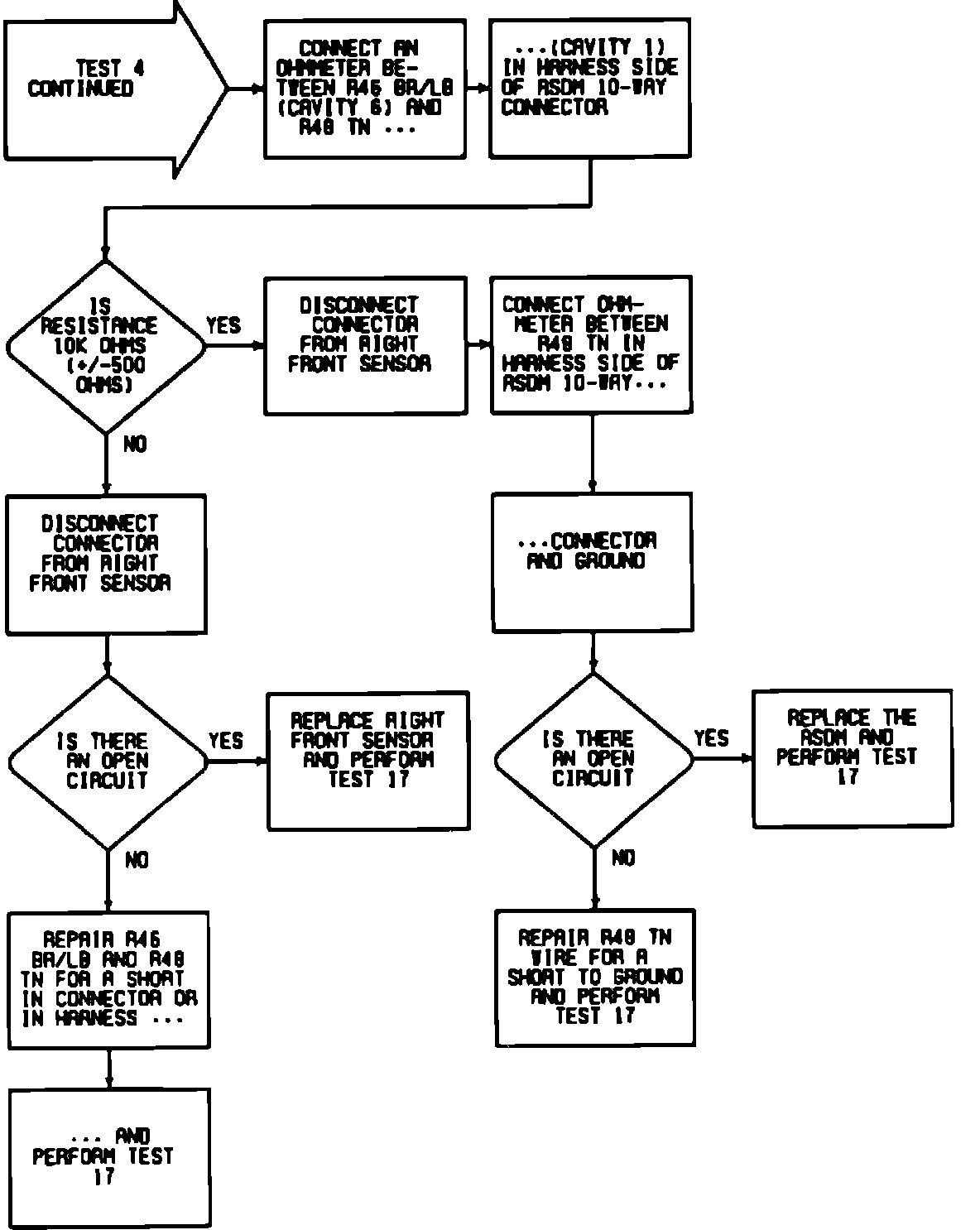

Fig. 16 Test 4, Repair Required For ``Safing Sensor Open'' Fault (Part 2 Of 2):
