3A Fault Message
3A Fault Message

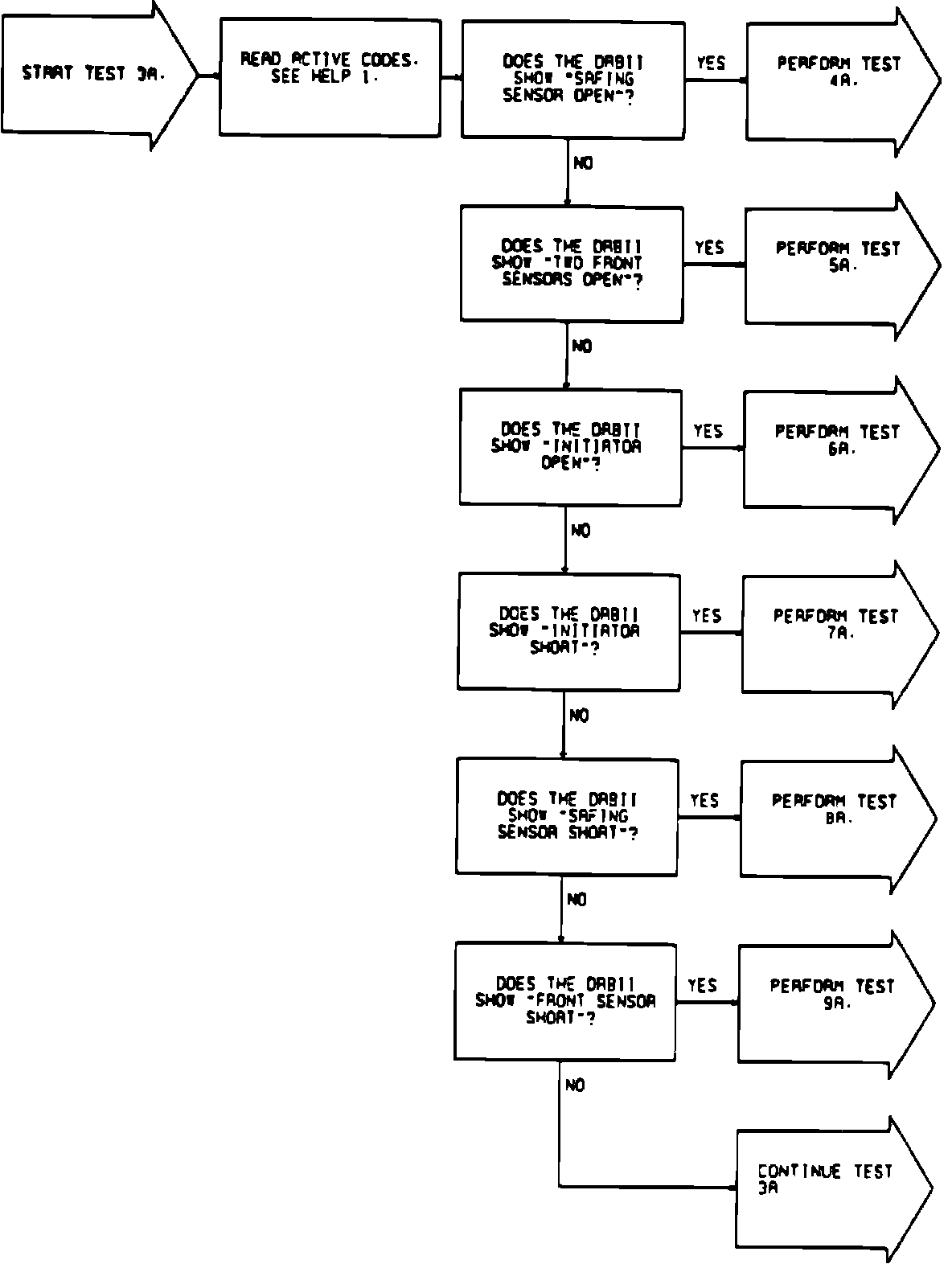

Fig. 15 Test 3A, Fault Messages (Part 1 Of 2):

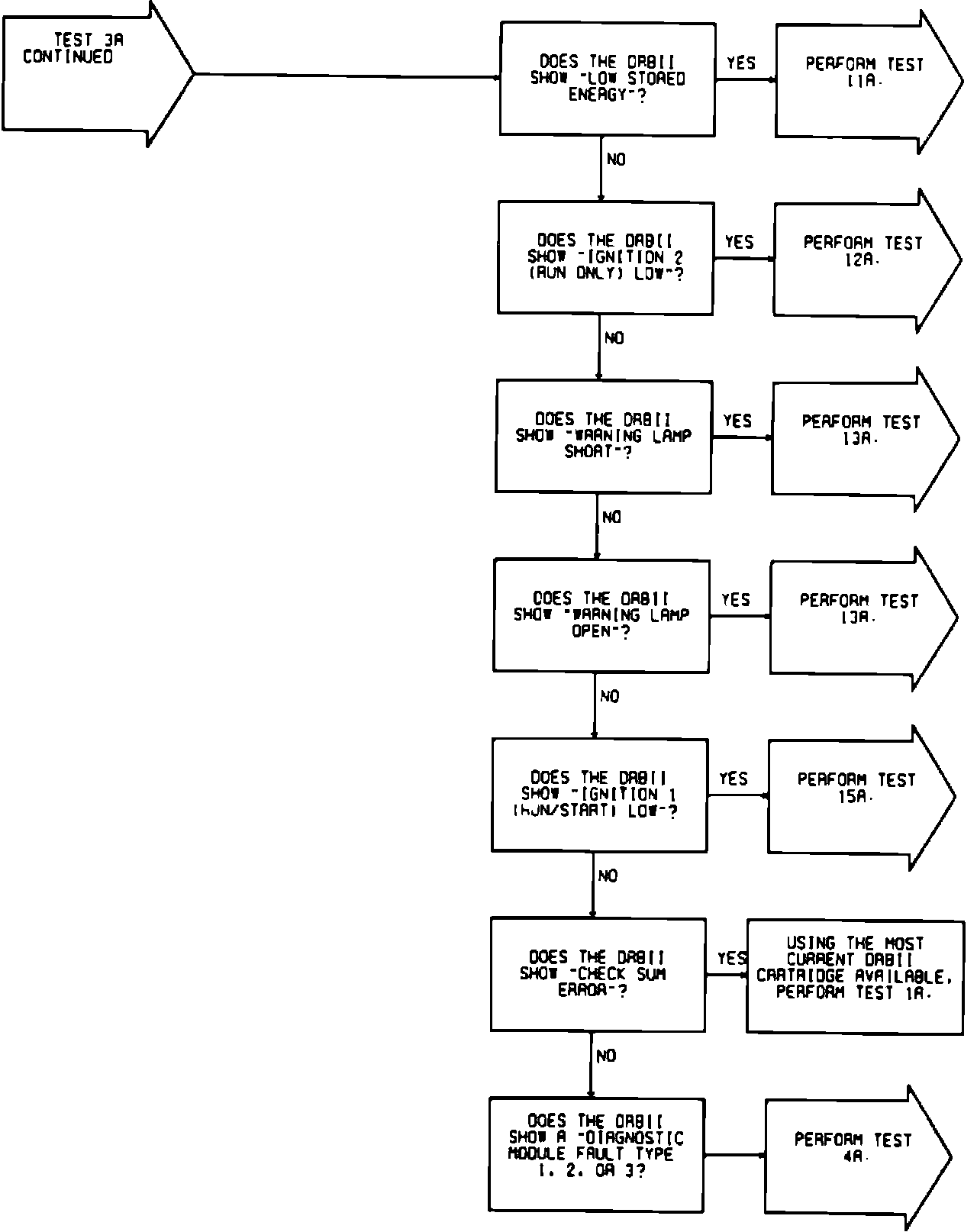

Fig. 15 Test 3A, Fault Messages (Part 2 Of 2):
