15B For "Ignition 1 (Run/Start) Low" Code
15B For "Ignition 1 (Run/Start) Low" Code

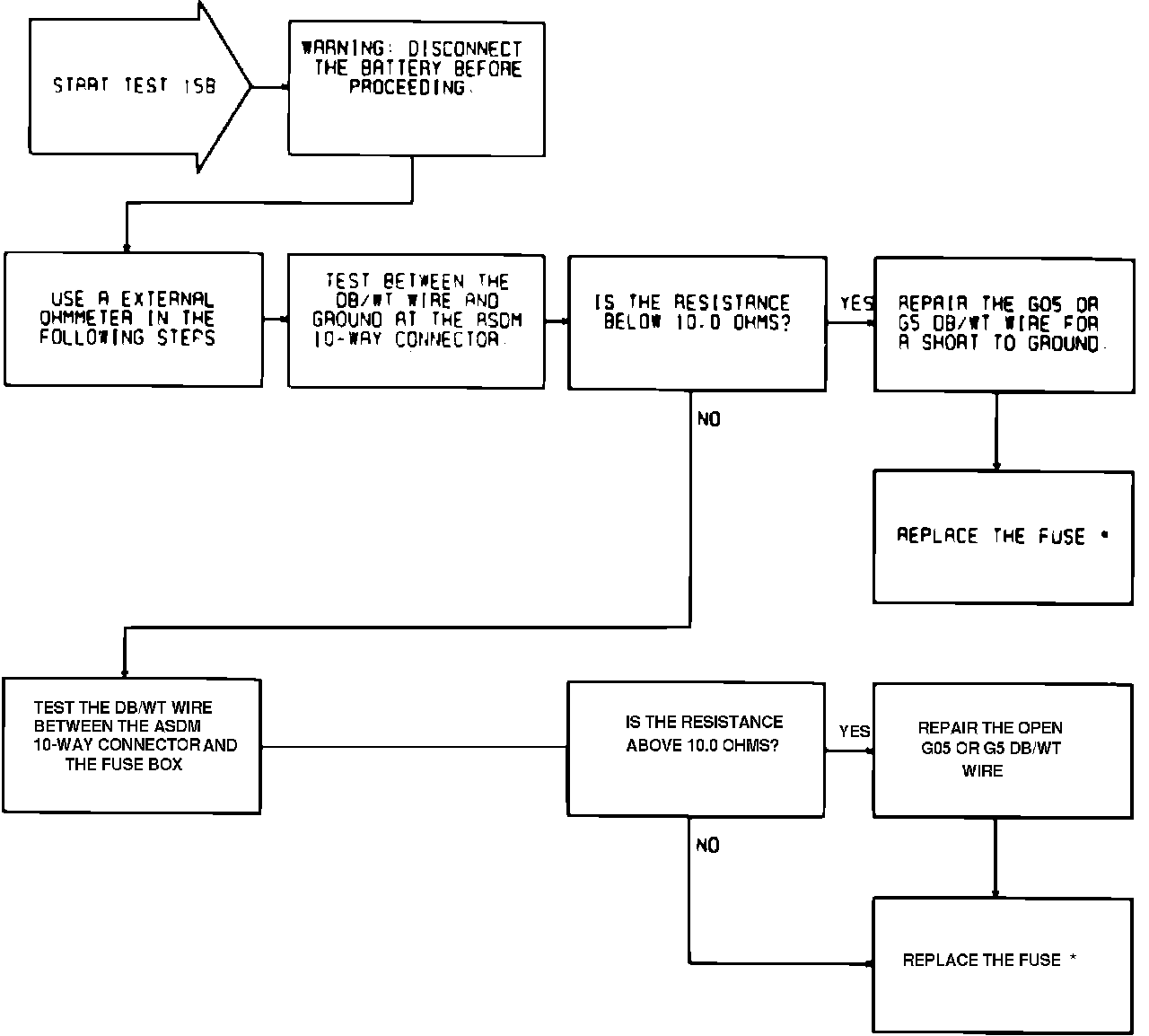

Fig. 47 Test 15B, Testing For ``Ignition 1 (Run/Start) Low'' Code:
