15A For Ignition 1 (Run/Start) Low" Code

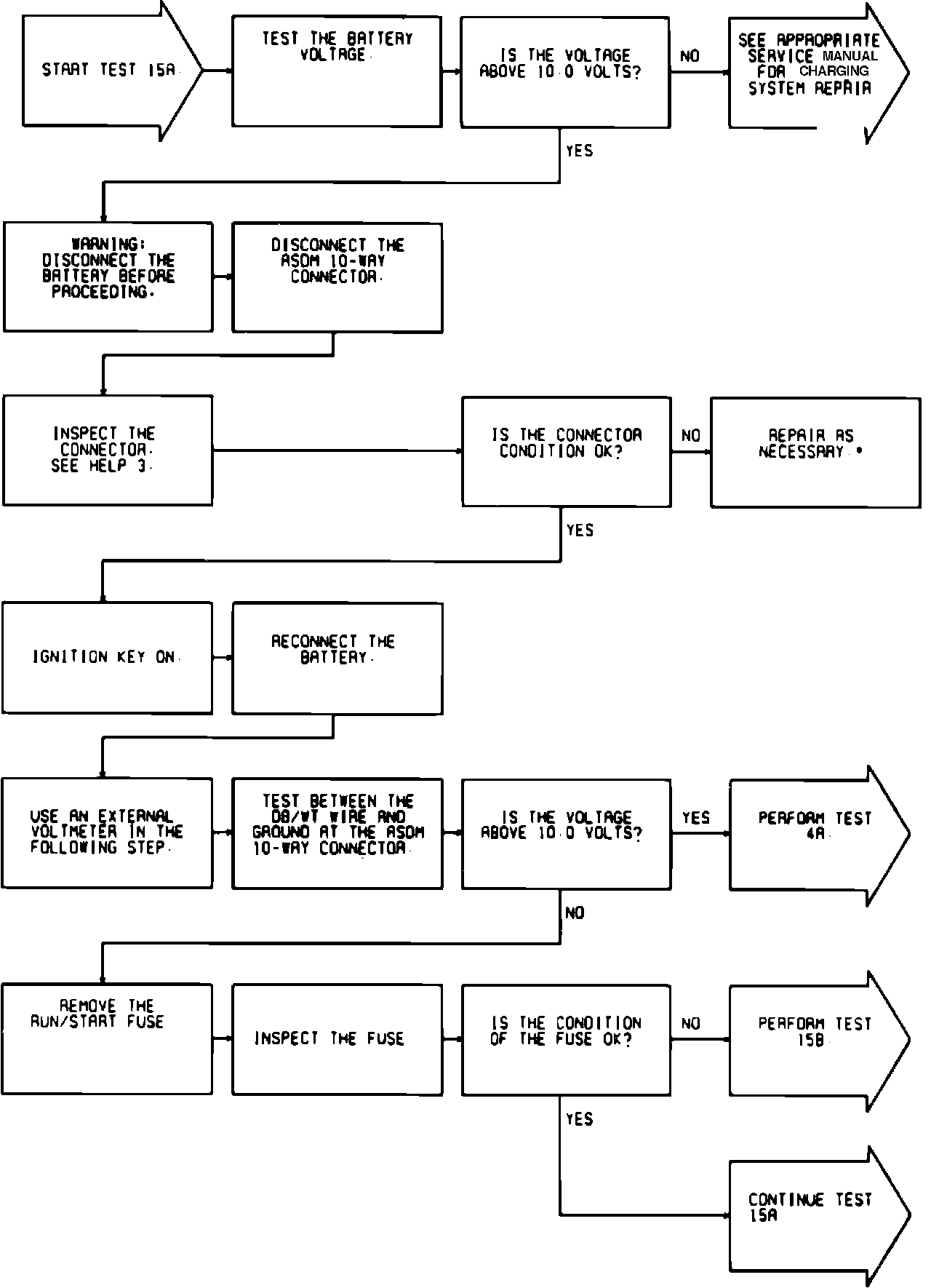

Fig. 46 Test 15A, Testing For ``Ignition 1 (Run/Start) Low'' Code (Part 1 Of 2):

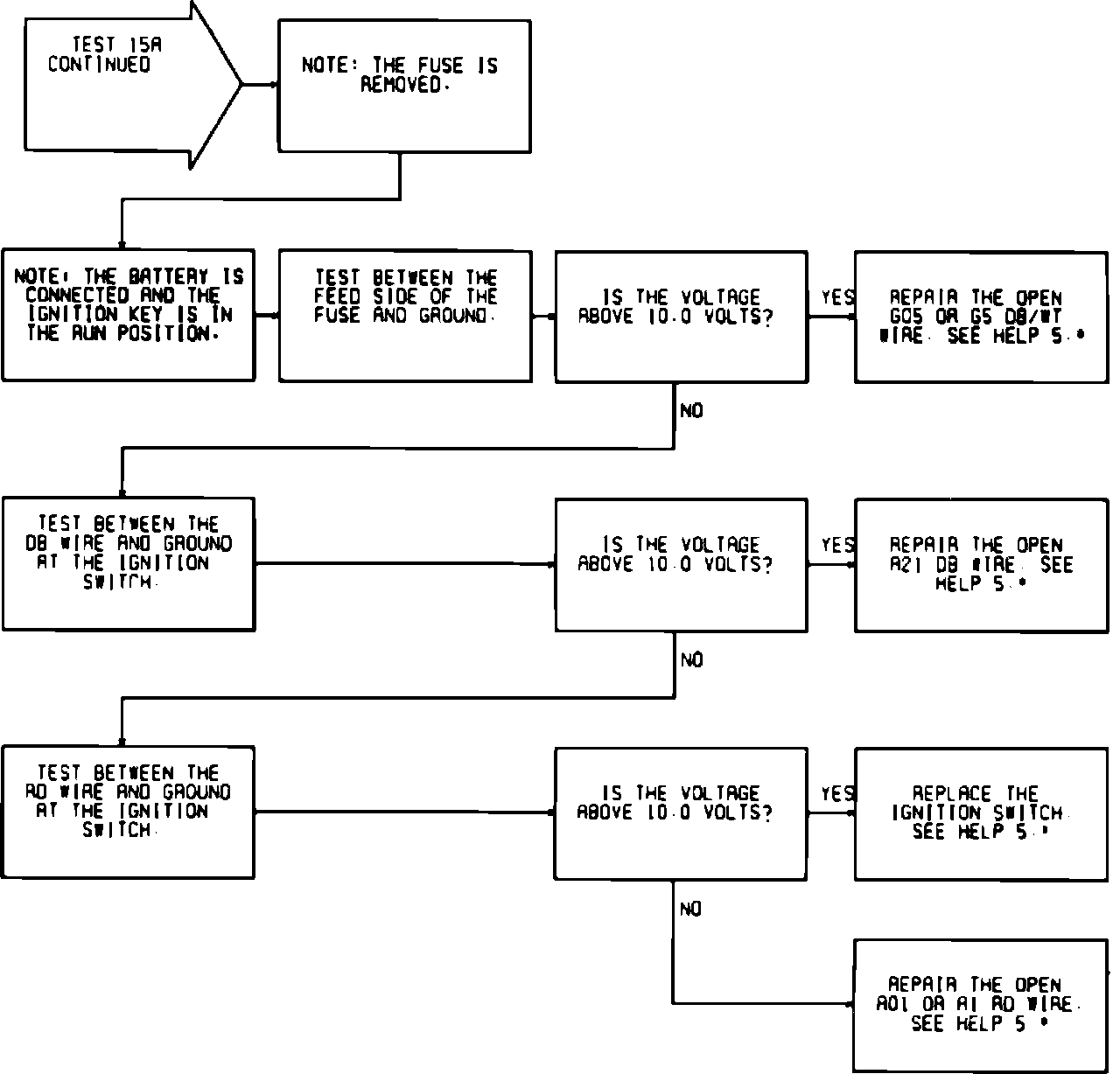

Fig. 46 Test 15A, Testing For ``Ignition 1 (Run/Start) Low'' Code (Part 2 Of 2):
