Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
14 Required For "Warning Lamp Open" Fault
14 Required For "Warning Lamp Open" Fault

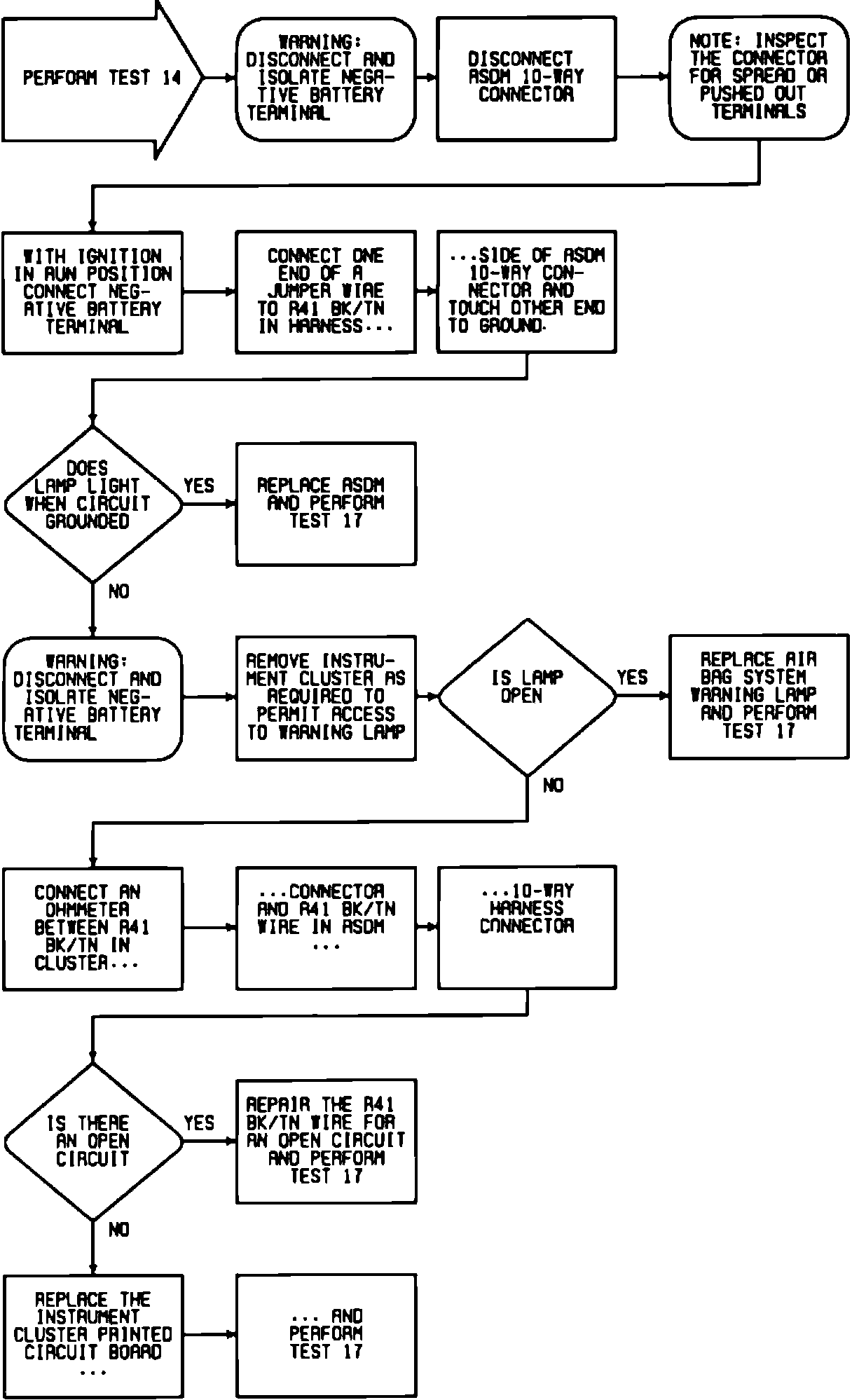

Fig. 43 Test 14, Repair Required For ``Warning Lamp Open'' Fault:
