Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 13A For "Warning Lamp Open" Code

13A For "Warning Lamp Open" Code

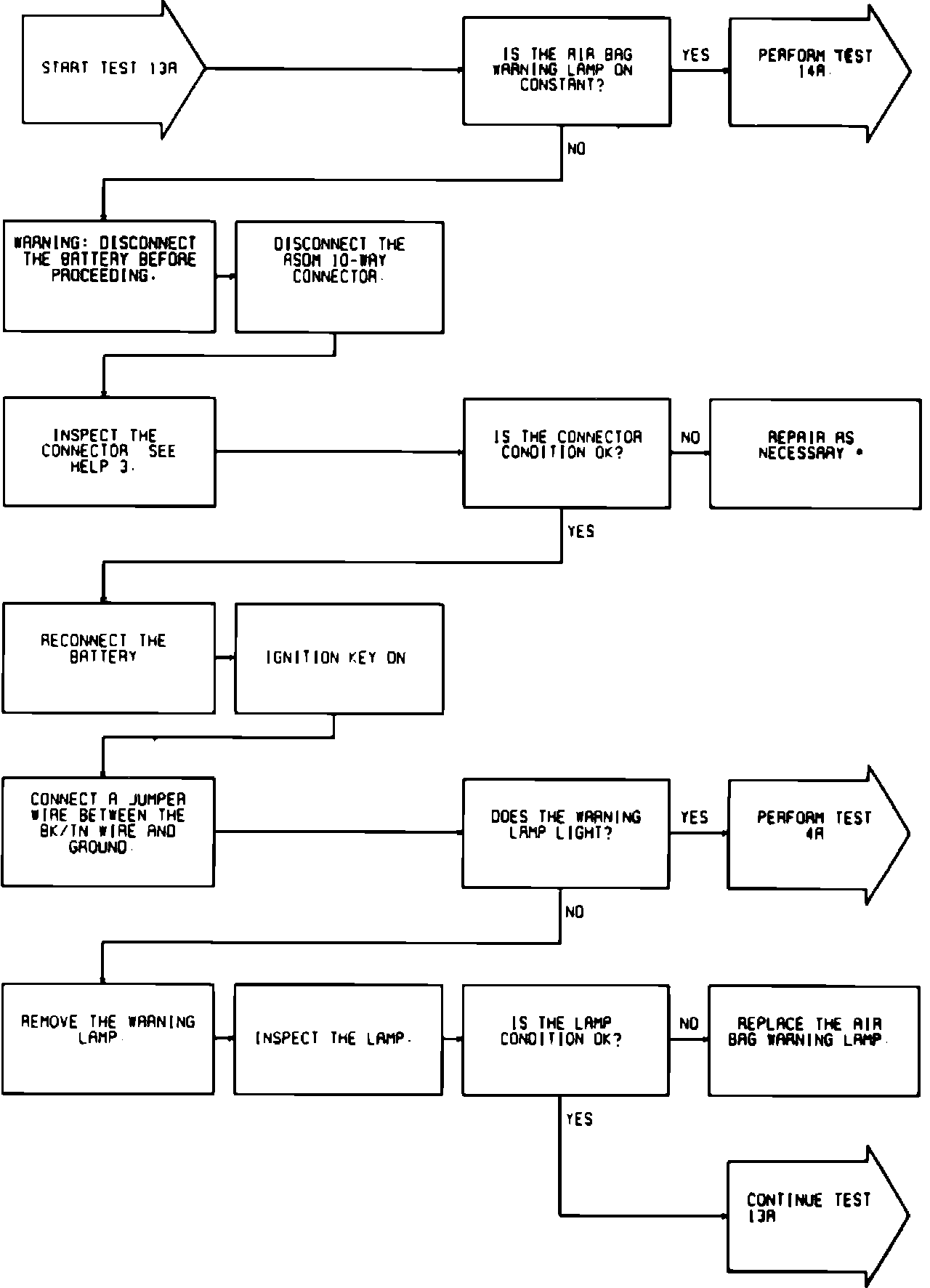

Test 13A, 1 Of 4:

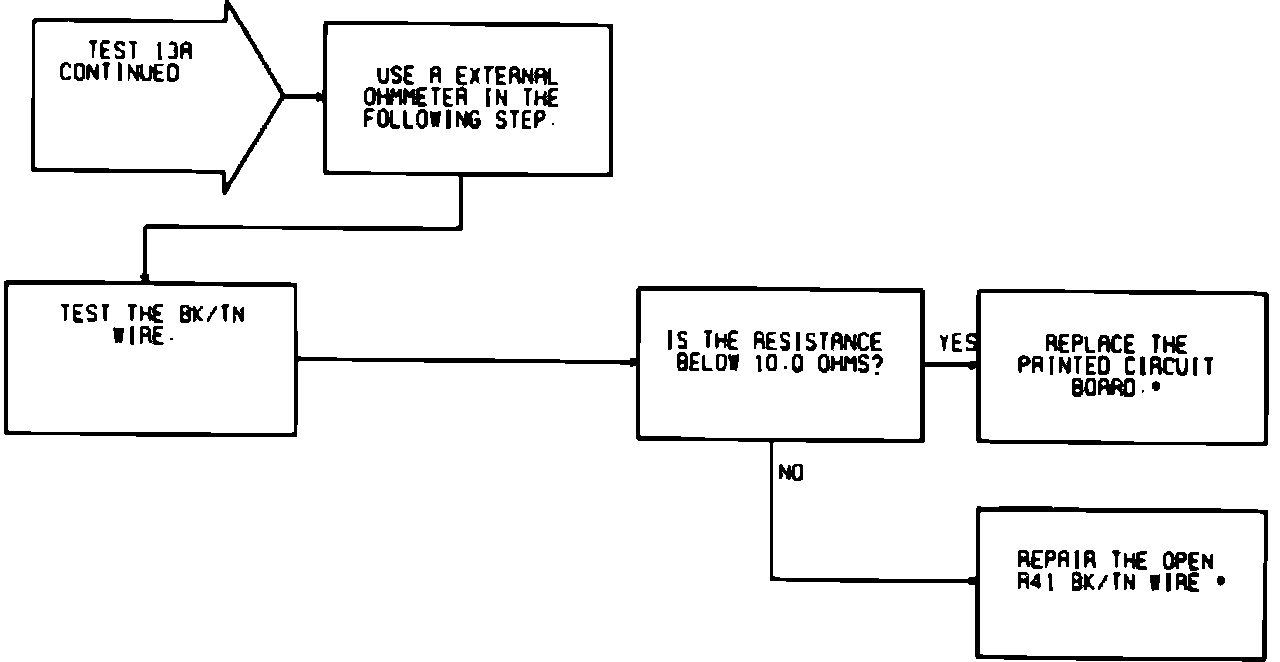

Test 13A, 3 Of 4:
