13 Required For "Warning Lamp Short" Fault
13 Required For "Warning Lamp Short" Fault

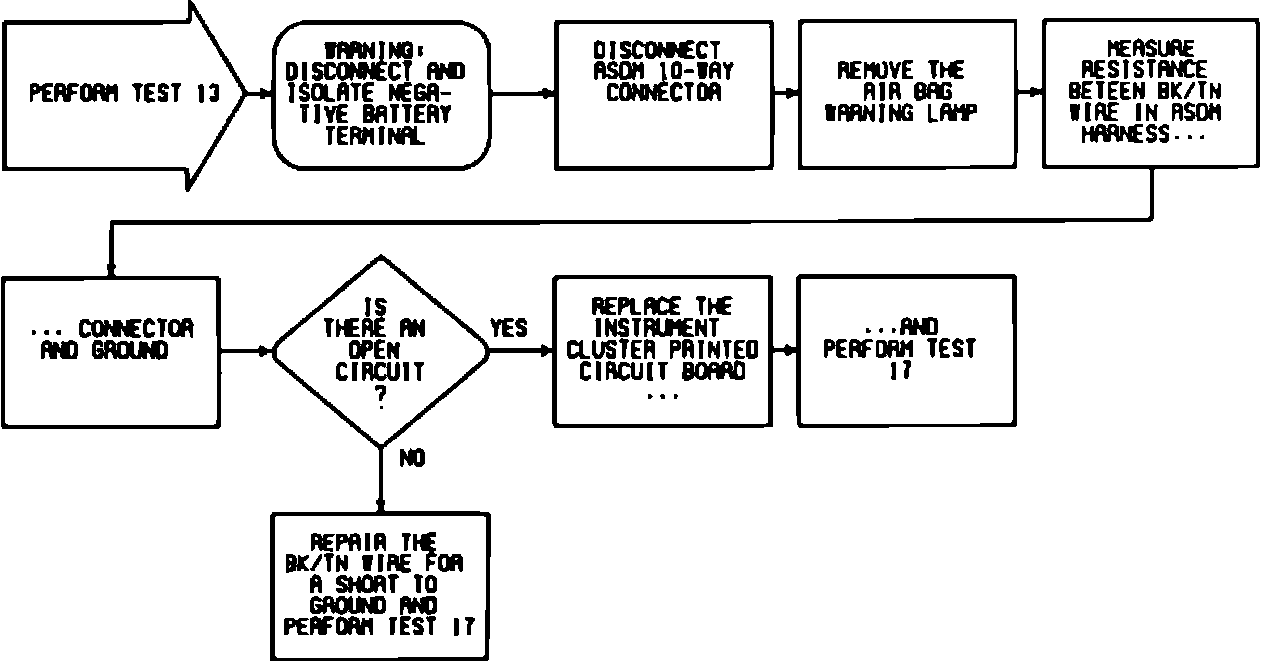

Fig. 41 Test 13, Repair Required For ``Warning Lamp Short'' Fault:
