Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 12B For "Low Stored Energy Code" Code

12B For "Low Stored Energy Code" Code

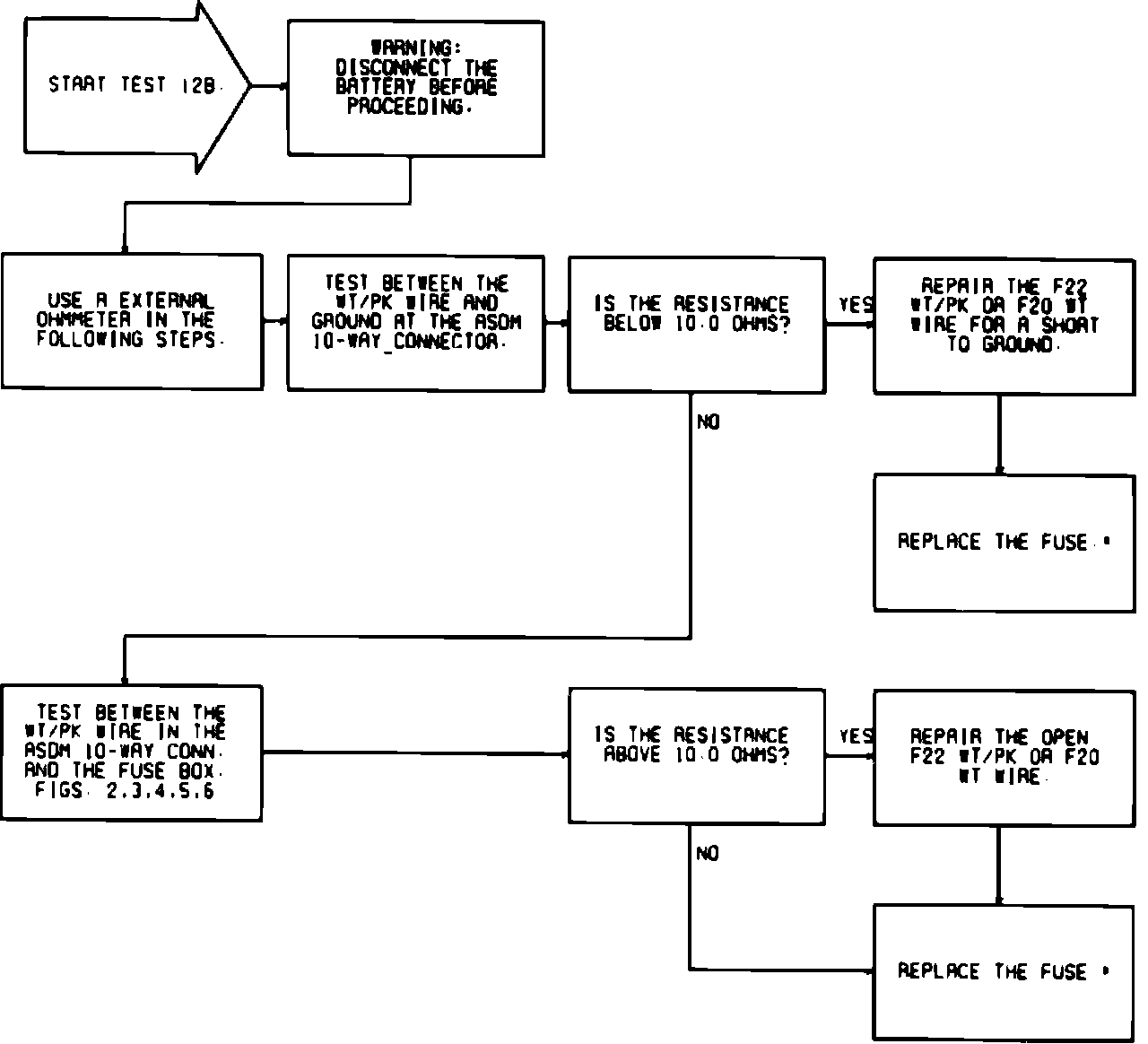

Fig. 39 Test 12B, Testing For ``Low Stored Energy Code'' Code:
