12 Required For "Ignition 2 (Run Only) Low" Fault

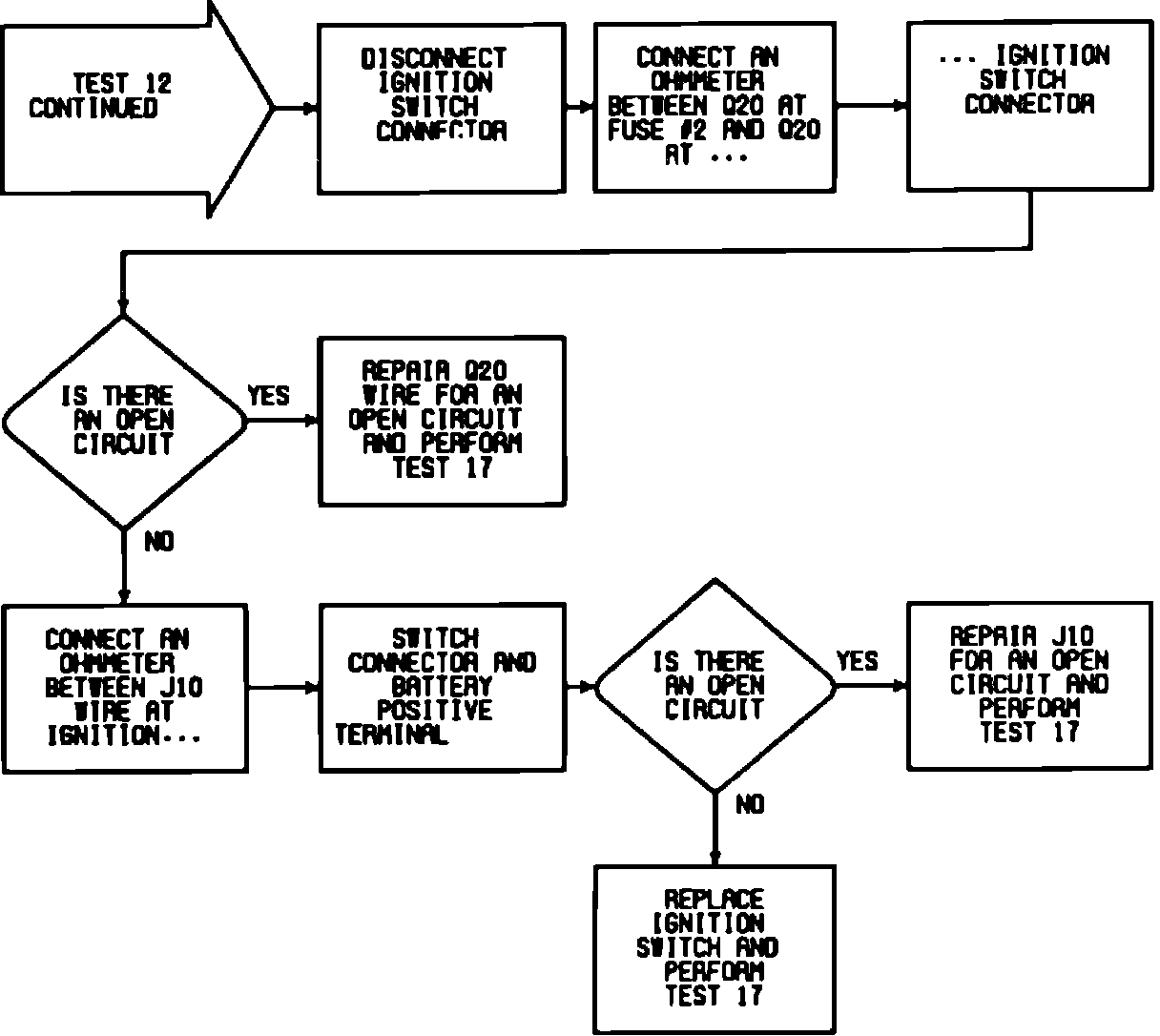

Fig. 37 Test 12, Repair Required For ``Ignition 2 (Run Only) Low'' Fault (Part 1 Of 2):

Fig. 37 Test 12, Repair Required For ``Ignition 2 (Run Only) Low'' Fault (Part 2 Of 2):
