Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
11B For "Low Stored Energy" Code
11B For "Low Stored Energy" Code

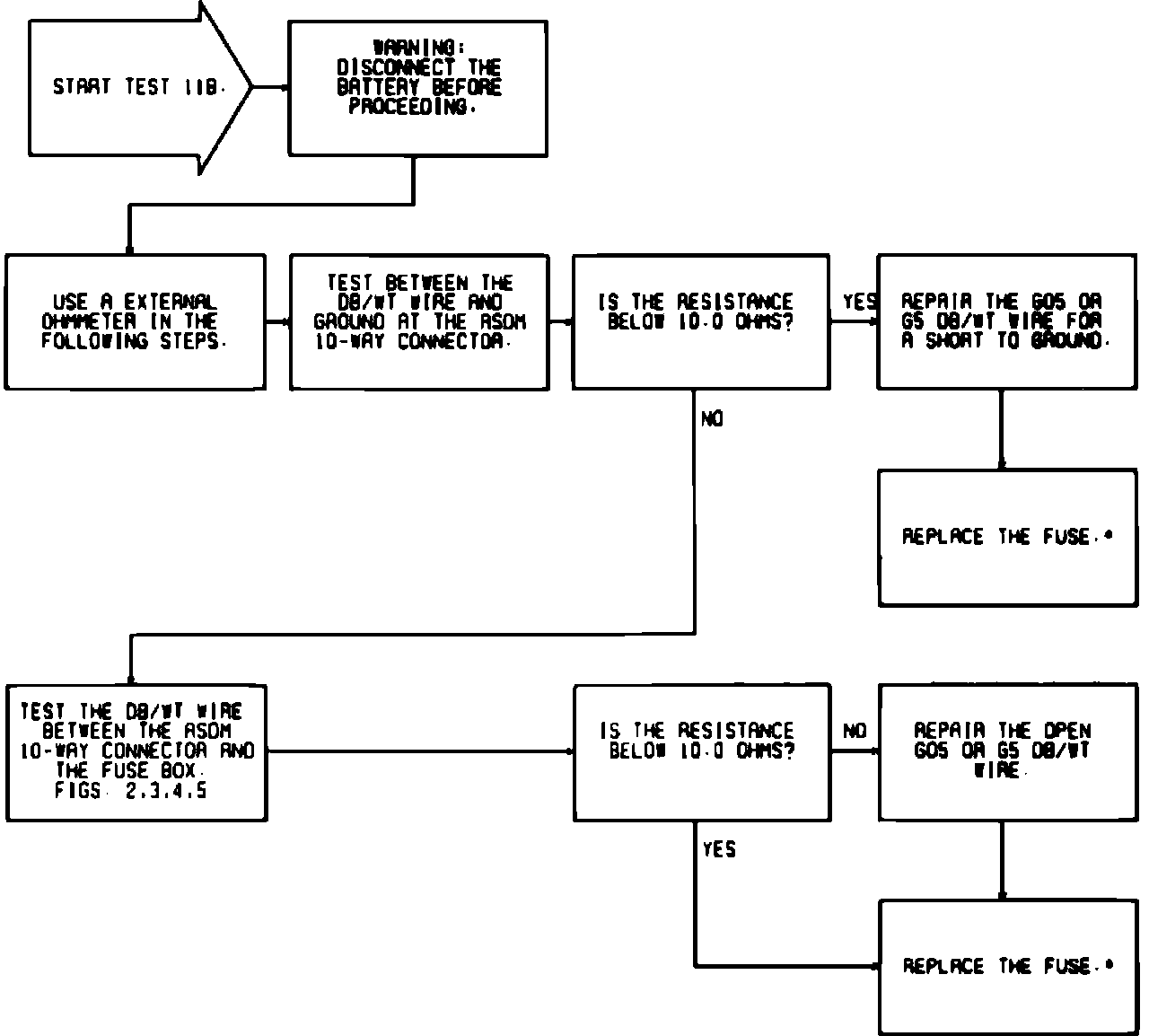

Fig. 36 Test 11B, Testing For ``Low Stored Energy'' Code:
