11A For "Low Stored Energy" Code

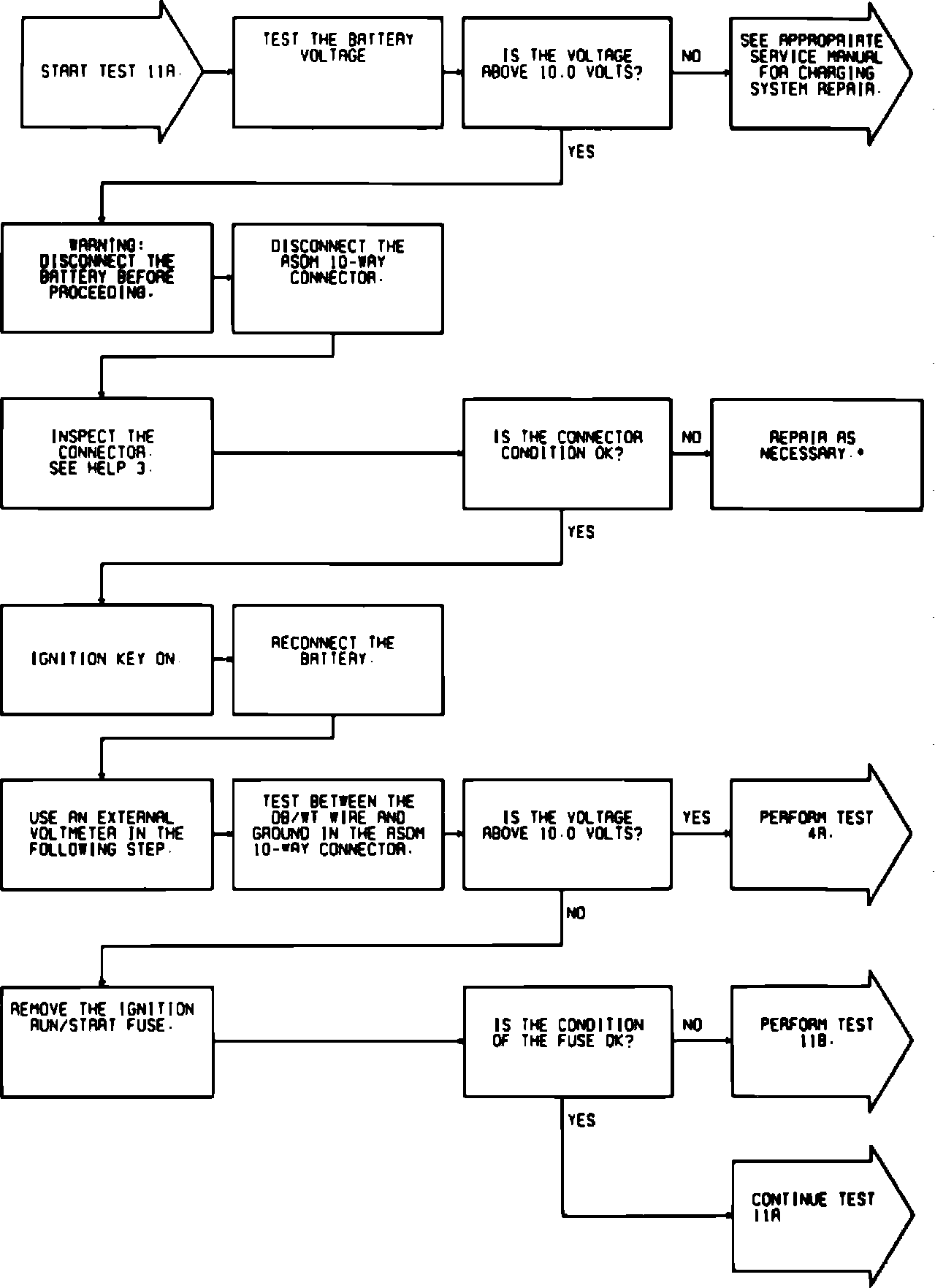

Fig. 35 Test 11A, Testing For ``Low Stored Energy'' Code (Part 1 Of 2):

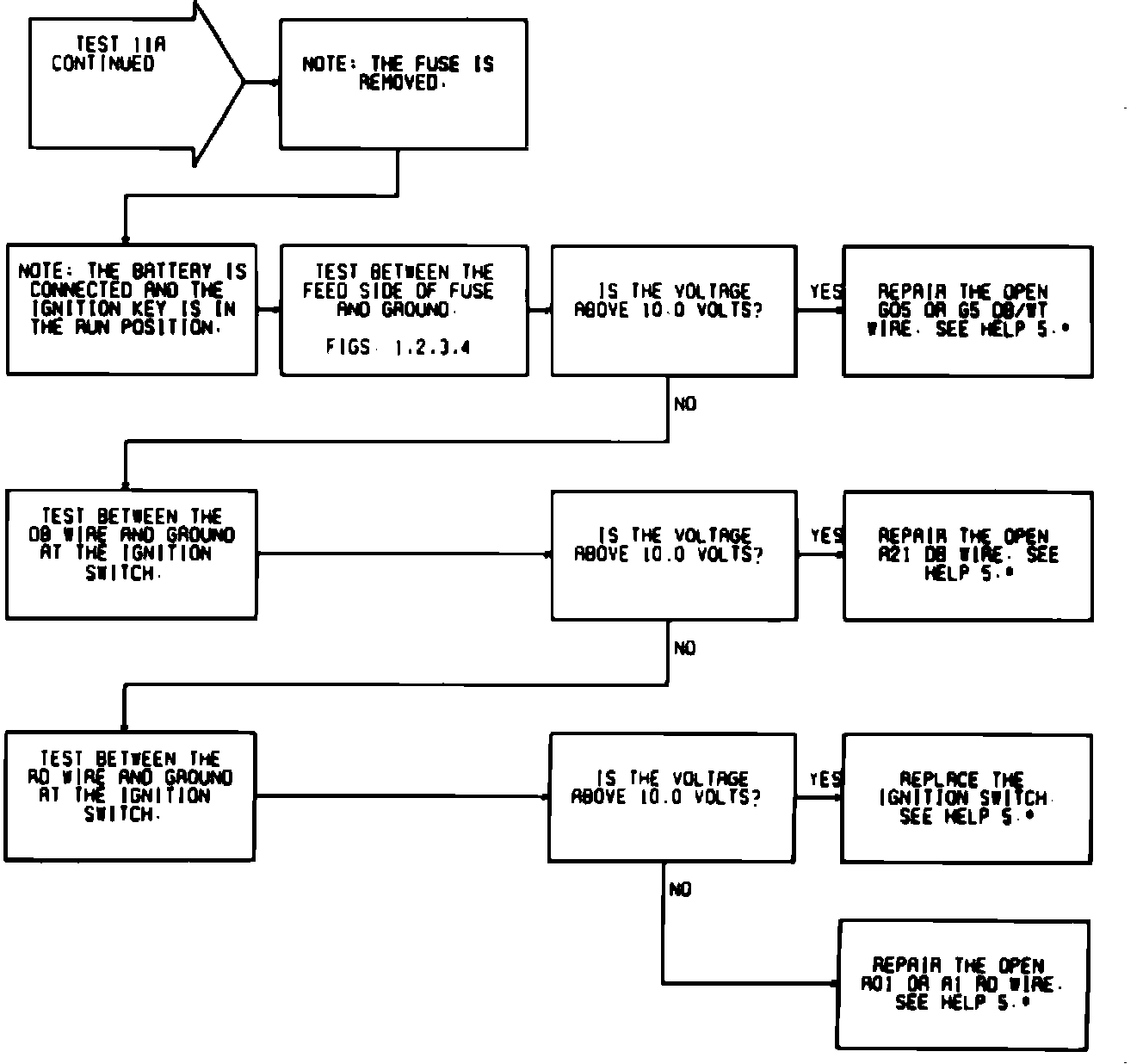

Fig. 35 Test 11A, Testing For ``Low Stored Energy'' Code (Part 2 Of 2):
