11 Required For "Low Stored Energy" Fault

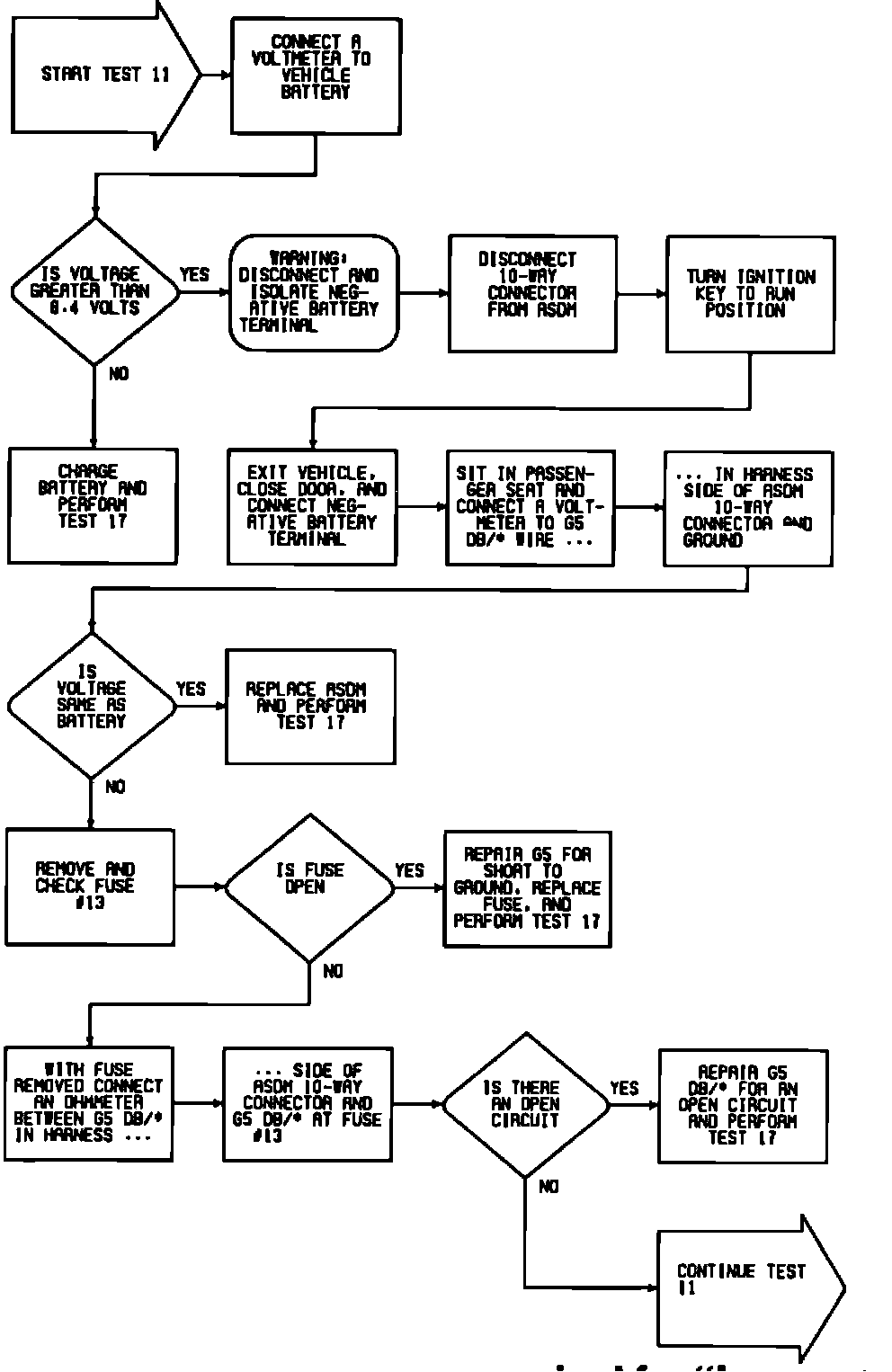

Fig. 34 Test 11, Repair Required For ``Low Stored Energy'' Fault (Part 1 Of 2):

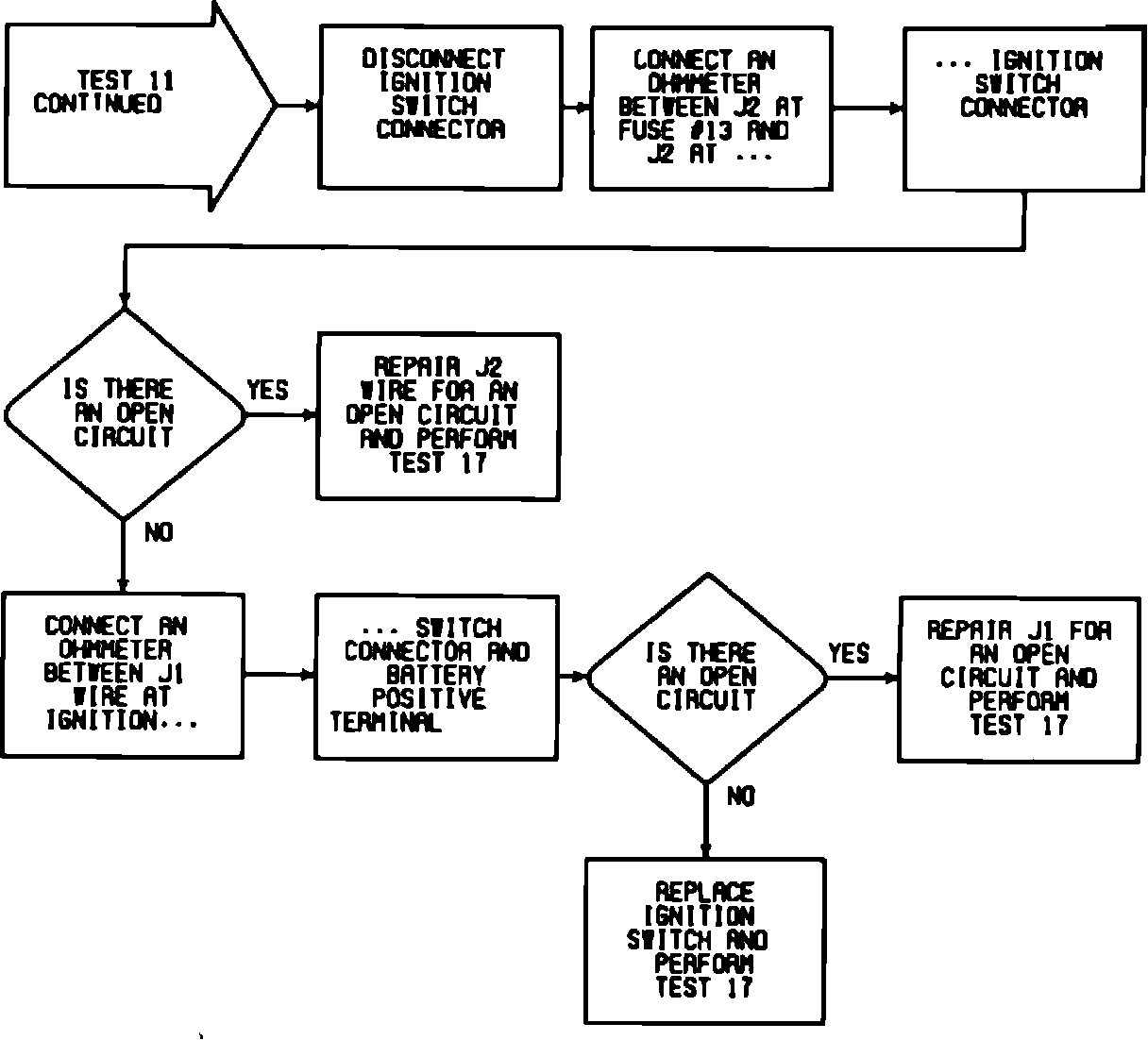

Fig. 34 Test 11, Repair Required For ``Low Stored Energy'' Fault (Part 2 Of 2):
