1 System Function
1 System Function
Fig. 6 Test 1, System Function (Part 1 Of 2):

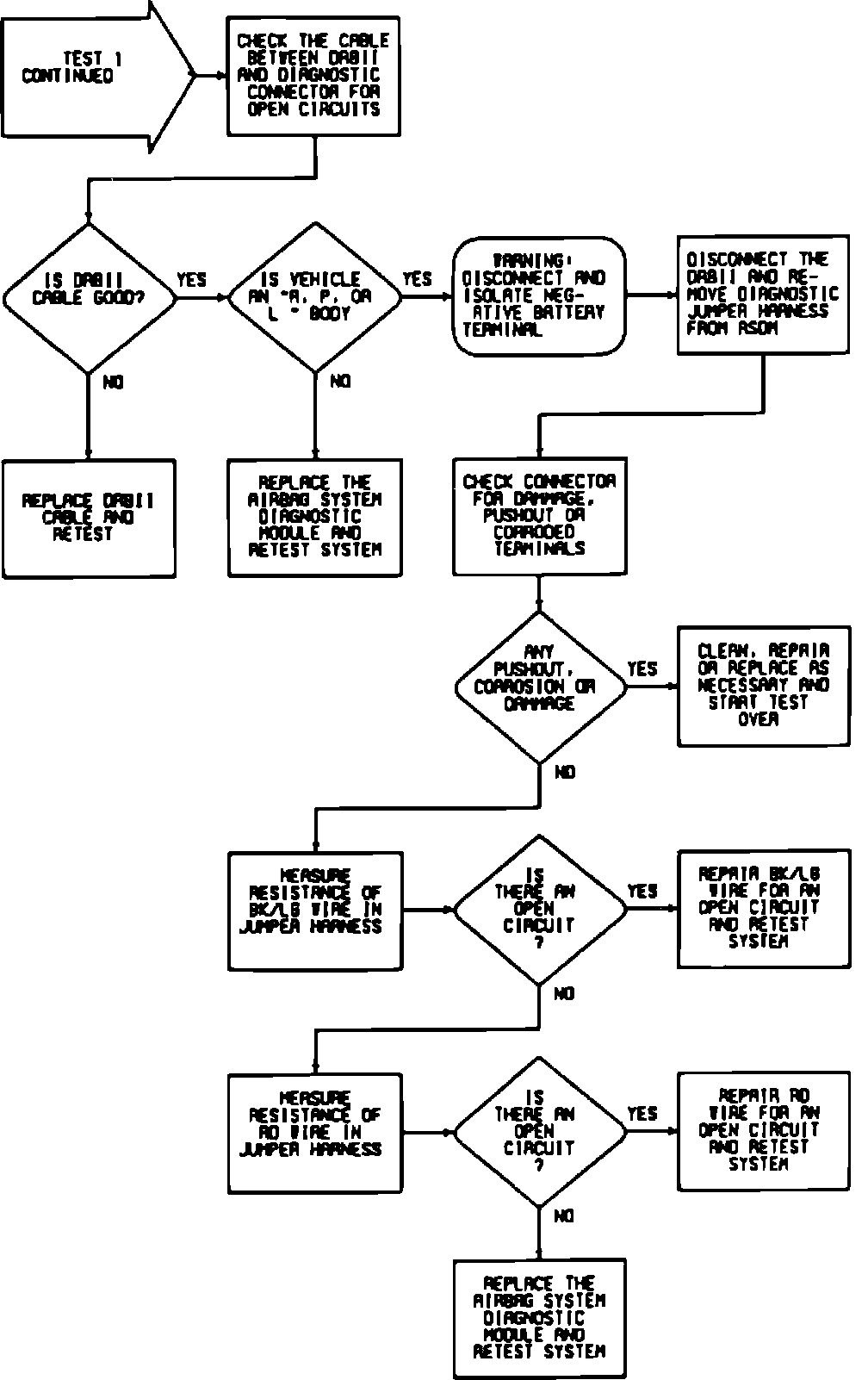

Fig. 6 Test 1, System Function (Part 2 Of 2):
