Turbo I Diagnosis - Manual Update, TPS Volts High

90chrysler03

Models

1989 AA, AG, AH, AJ, AP & AS Bodies


Subject

2.5L Turbo I Diagnostic Procedure Manual Revision - TPS Voltage High


Index

MISCELLANEOUS


Date

December 29, 1989


No.

26-32-89

(C26-33-9)
P-3
BODY CODE LEGEND

AA - SPIRIT/ACCLAIM
AG - DAYTONA
AH - LANCER/LEBARON GTS (4-DOOR HATCHBACK)
AJ - LEBARON (2-DOOR COUPE/CONVERTIBLE)
AP - SHADOW/SUNDANCE
AS - CARAVAN/VOYAGER/CARAVAN C/V


DIAGNOSTIC PROCEDURES MANUAL REVISION






This bulletin is being issued to revise the 1989 2.5L Turbo I Diagnostic Procedure Manual (Publication No. 81-699-9014). This revision involves:

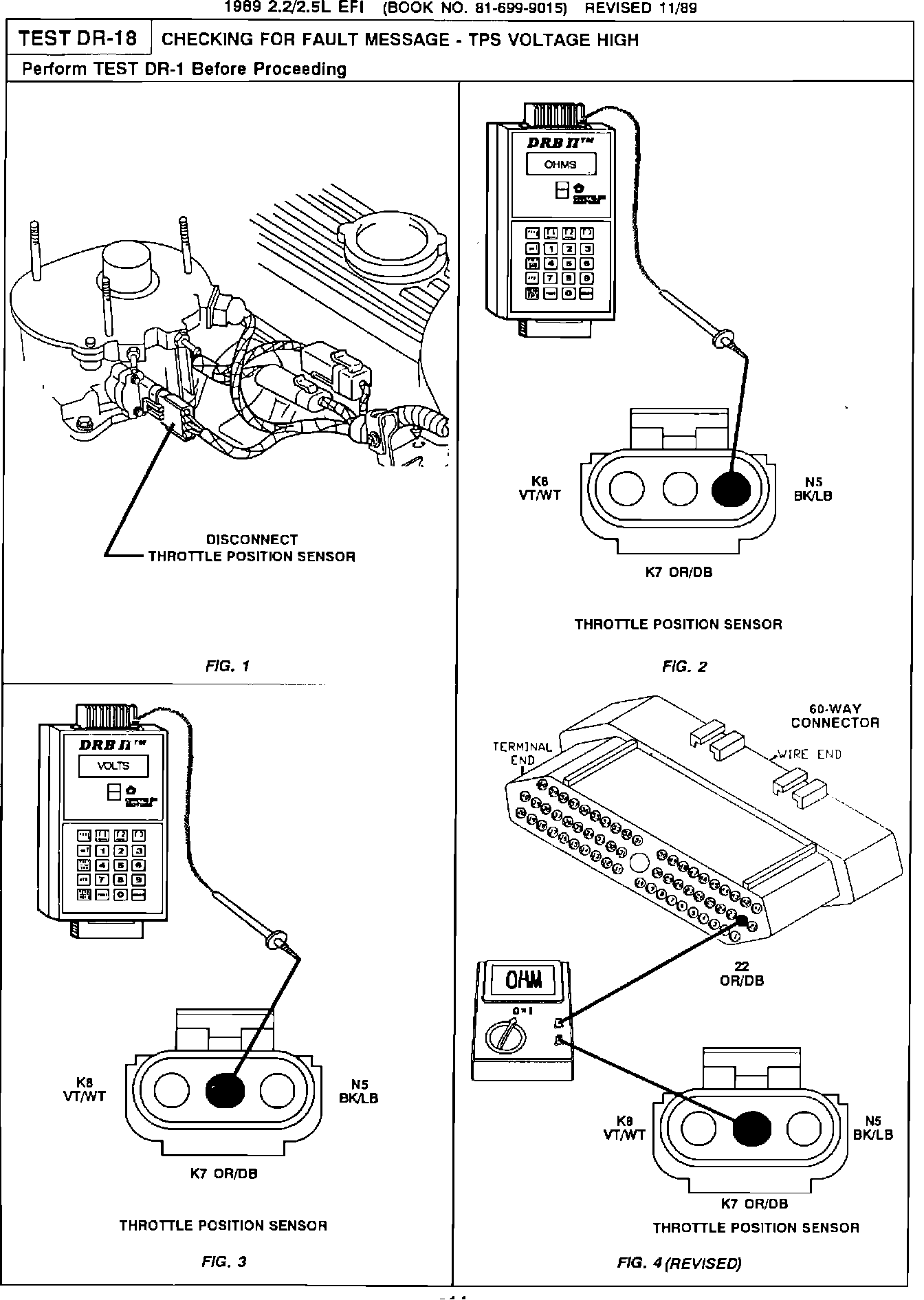

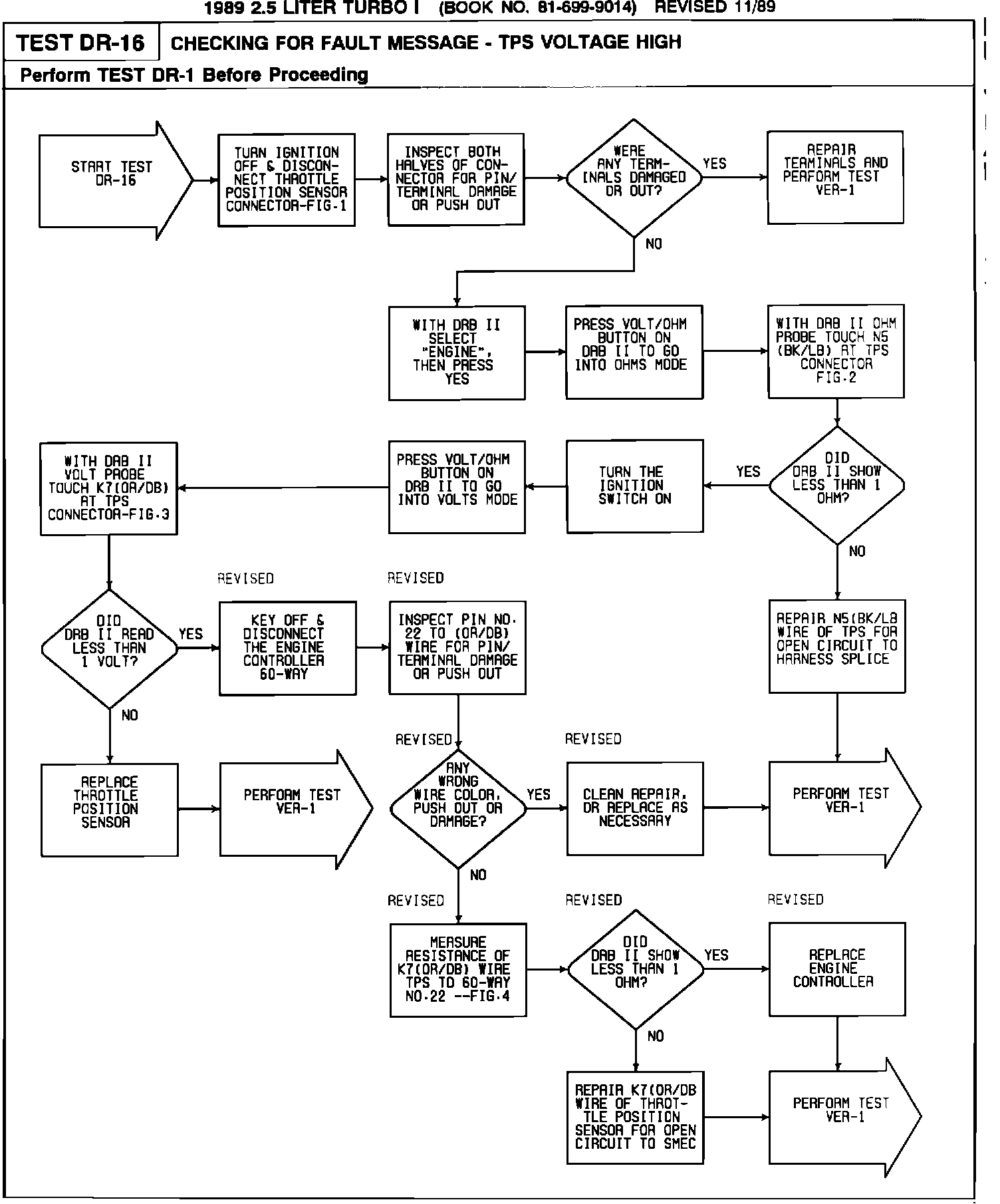

CHECKING FOR FAULT MESSAGE - TPS VOLTAGE HIGH


Please insert the revised pages 122 and 123 in the subject manual.


POLICY: For information only.
