Home >> Chrysler >> 1989 >> Lebaron Convertible L4-153 2.5L SOHC Turbo VIN J FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> System Diagram >> Instrument Cluster >> Electronic Cluster

Electronic Cluster

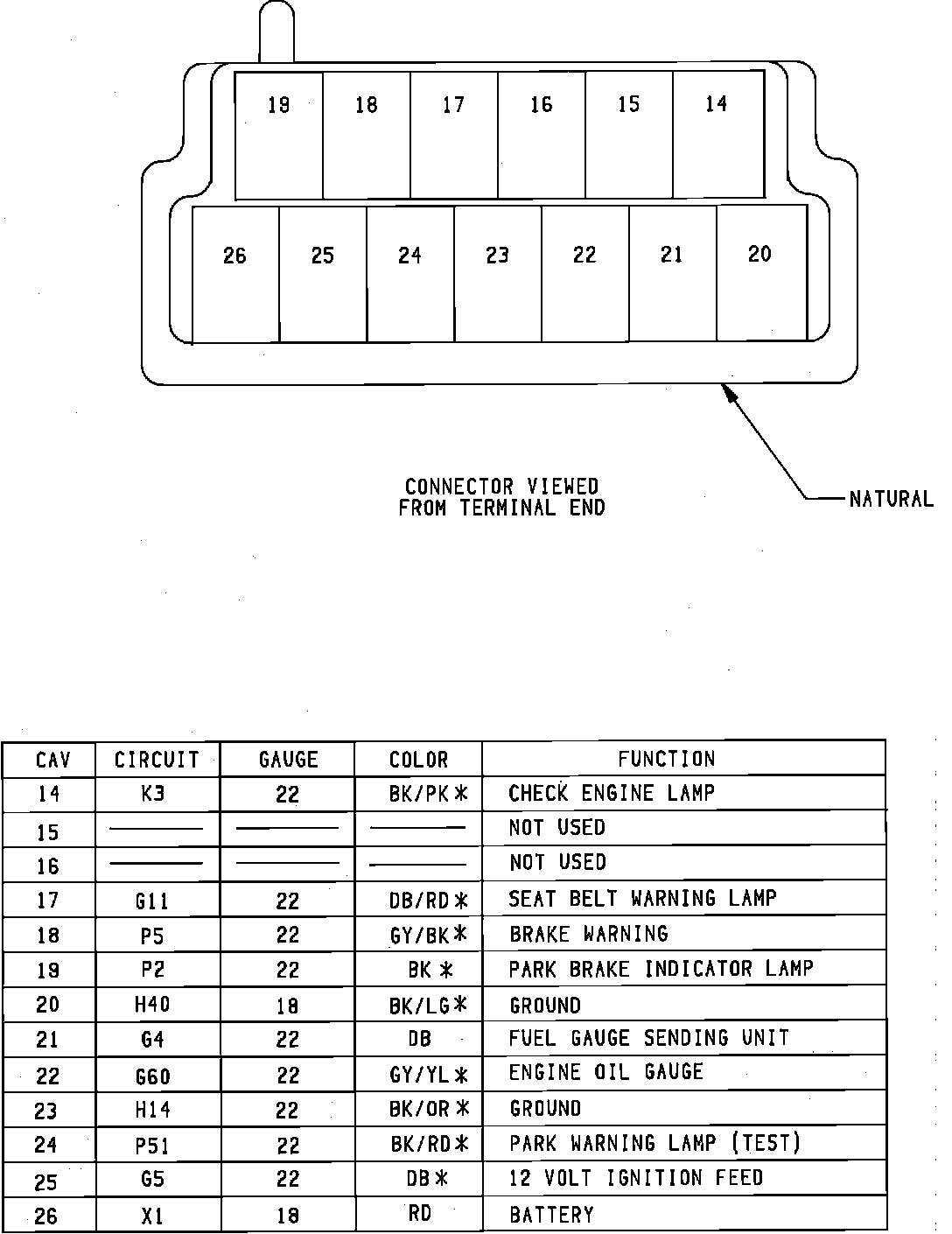

Left Printed Circuit Board Connectors. Electronic Cluster:

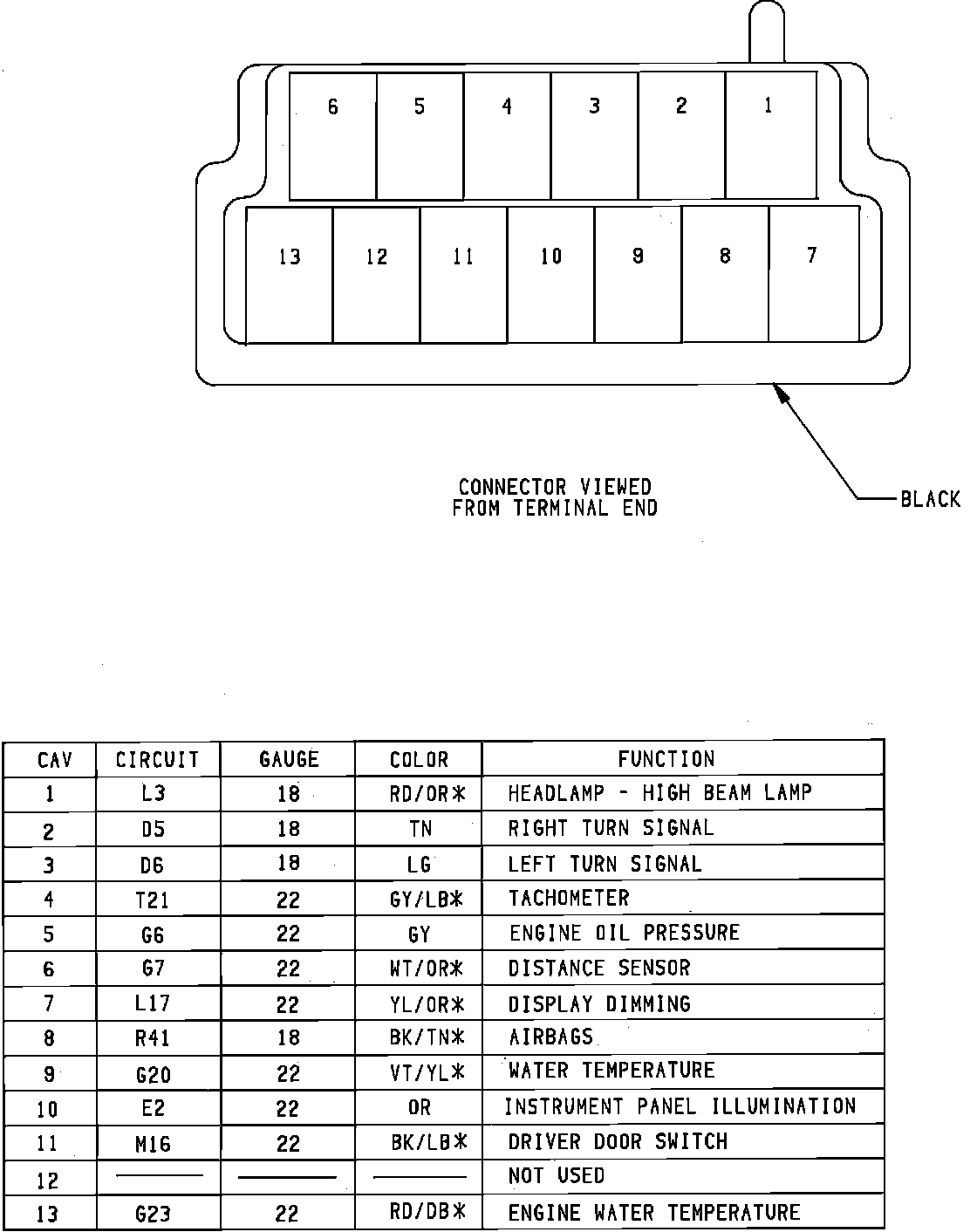

Right Printed Circuit Board Connectors. Electronic Cluster:
