Lebaron Convertible L4-135 2.2L SOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

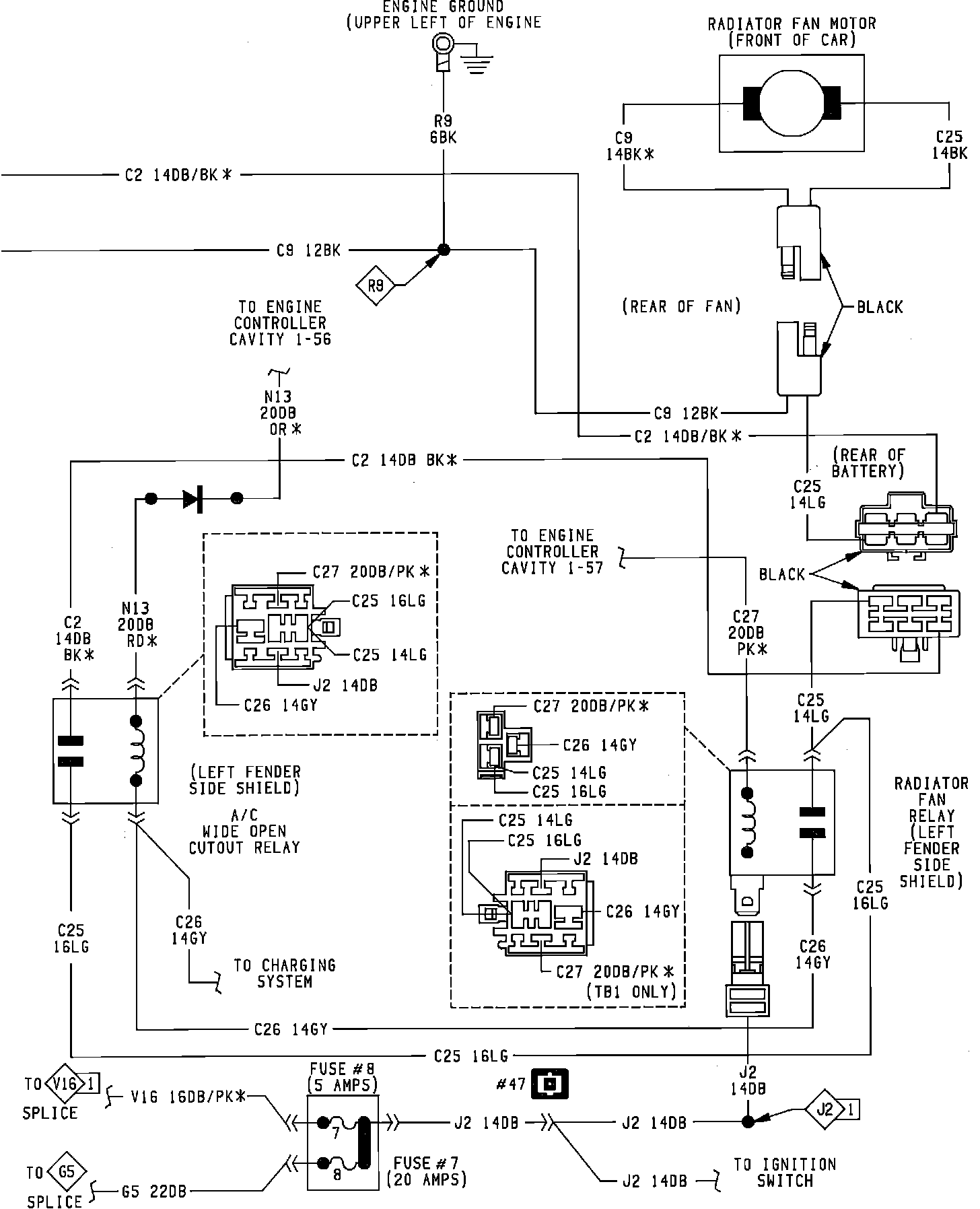

Air Conditioning, Heater, And Cooling Fan Part 1 of 2:

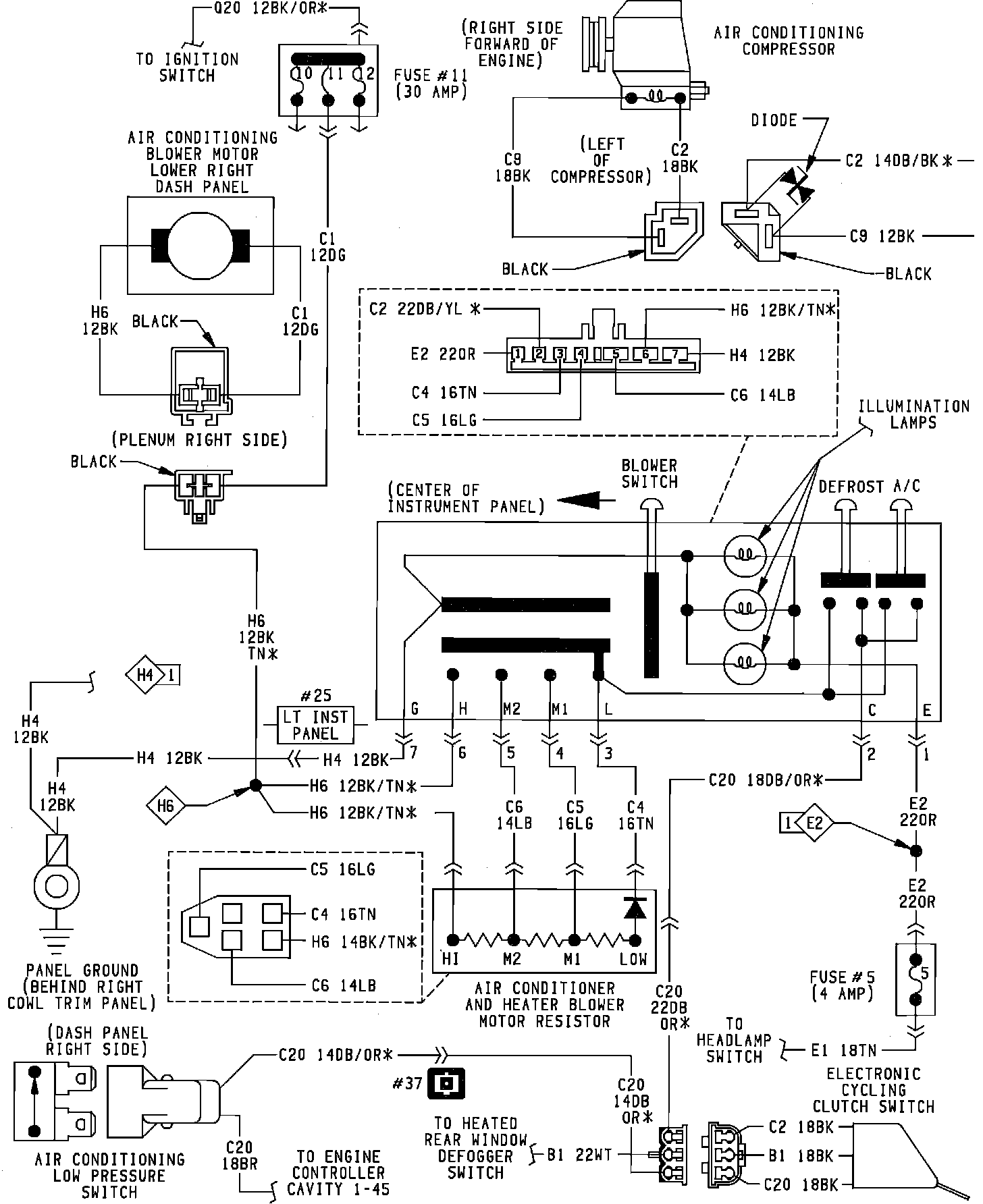

Air Conditioning, Heater, And Cooling Fan Part 2 of 2:
