Fuel Injection Manual - EGR Diagnosis, Revision

89Chrysler15

Models

1989 Bodies With 2.2L/2.5L Engines With EFI


Subject

2.2L/2.5L Electronic Fuel Injection - Diagnostic Procedures Manual Revision


Index

MISCELLANEOUS


Date

October 16, 1989


No.

26-25-89

(C26-28-9)
P-3757
BODY CODE LEGEND

AA - SPIRIT/ACCLAIM AC - DYNASTY/NEW YORKER/LANDAU AG - DAYTONA AH - LANCER/LeBARON GTS (4-DOOR HATCHBACK) AK - ARIES/RELIANT AL - OMNI/HORIZON AN - DODGE DAKOTA/DAKOTA SPORT (RWD, 4WD) AP - SHADOW/SUNDANCE AS - CARAVAN/VOYAGER/CARAVAN C/V



DIAGNOSTIC PROCEDURES MANUAL REVISION

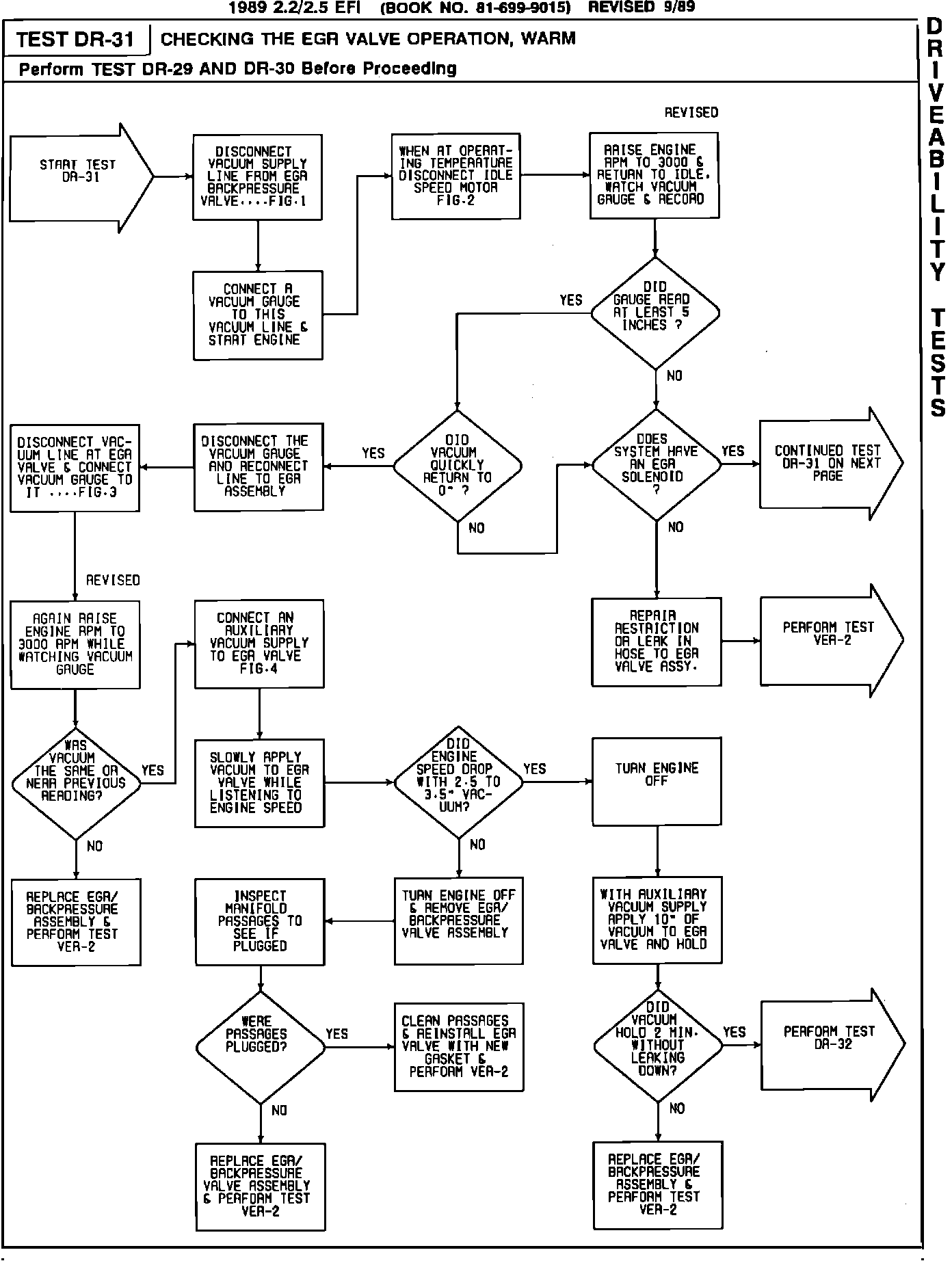

This bulletin is being issued to revise the 1989 2.2L/2.5L EFI Diagnostic Procedures Manual (P/N 81-699-9015). Please insert the revised page 163 in the subject manual.


POLICY: Information only
