ECM - Engine Dieout Following Cold Startup
90chrysler09 Models1989 AH, AK, AL, AP, Bodies
Subject
Driveway Dieout At Idle or During Gear Engagement - 2.2L EFI With Automatic Trans.
Index
DRIVEABILITY
Date
July 2, 1990
No.
18-21-90
P-1988 (C18-10-0)
BODY CODE LEGEND
AH LANCER/LEBARON GTS
AK RELIANT/ARIES
AL OMNI/HORIZON
AP SHADOW/SUNDANCE
SYMPTOM/CONDITION
Vehicle may exhibit a driveway'dieout at idle or when shifting. from PARK or NEUTRAL to DRIVE or REVERSE following cold engine starts at ambient temperatures below 32~F (O~C).
DIAGNOSIS
This condition will only occur on the first start after an overnight soak when the outside temperature is below 32~F 0~C). Following cold engine startup (using the recommended starting procedure), dieout may occur on extended idle and/or during PARK/NEUTRAL to DRIVE/REVERSE gear engagement at idle.
Before proceeding to the repair procedure, verify the system is functioning as designed using the appropriate diagnostic test procedure.
PARTS REQUIRED
1 Single Module Engine Controller (SMEC)
2.2L Federal, Automatic PN 4557522
2.2L California, Automatic PN 4557524
1 Authorized Modification Label PN 4275086
REPAIR PROCEDURE
This repair involves the replacement of the original engine controller (SMEC) with a revised unit.
1. Replace engine controller with appropriate unit as called out in PARTS REQUIRED.

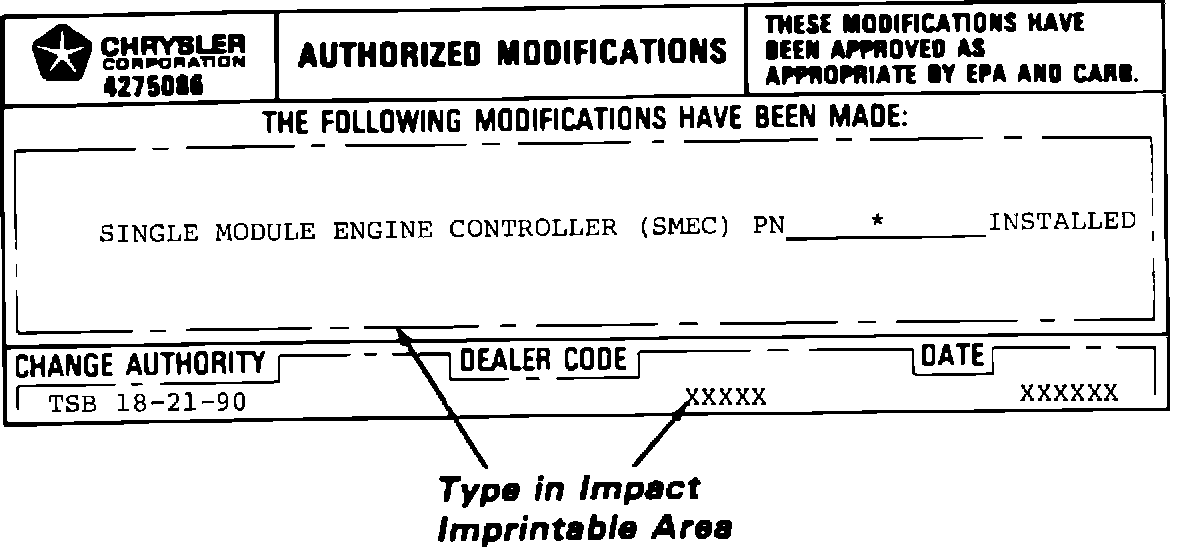

FIGURE 1:
2. Type the required information on the Authorized Modification Label, as illustrated in Figure 1, and attach near the VECI label.
* INSERT PART NUMBER USED.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE
Labor Operation No. 08-19-01-91 0.5 Hrs.
FAILURE CODE: AM - Authorized Modification
