Home >> Chrysler >> 1989 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN A FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram >> With Automatic Temperature Control

With Automatic Temperature Control

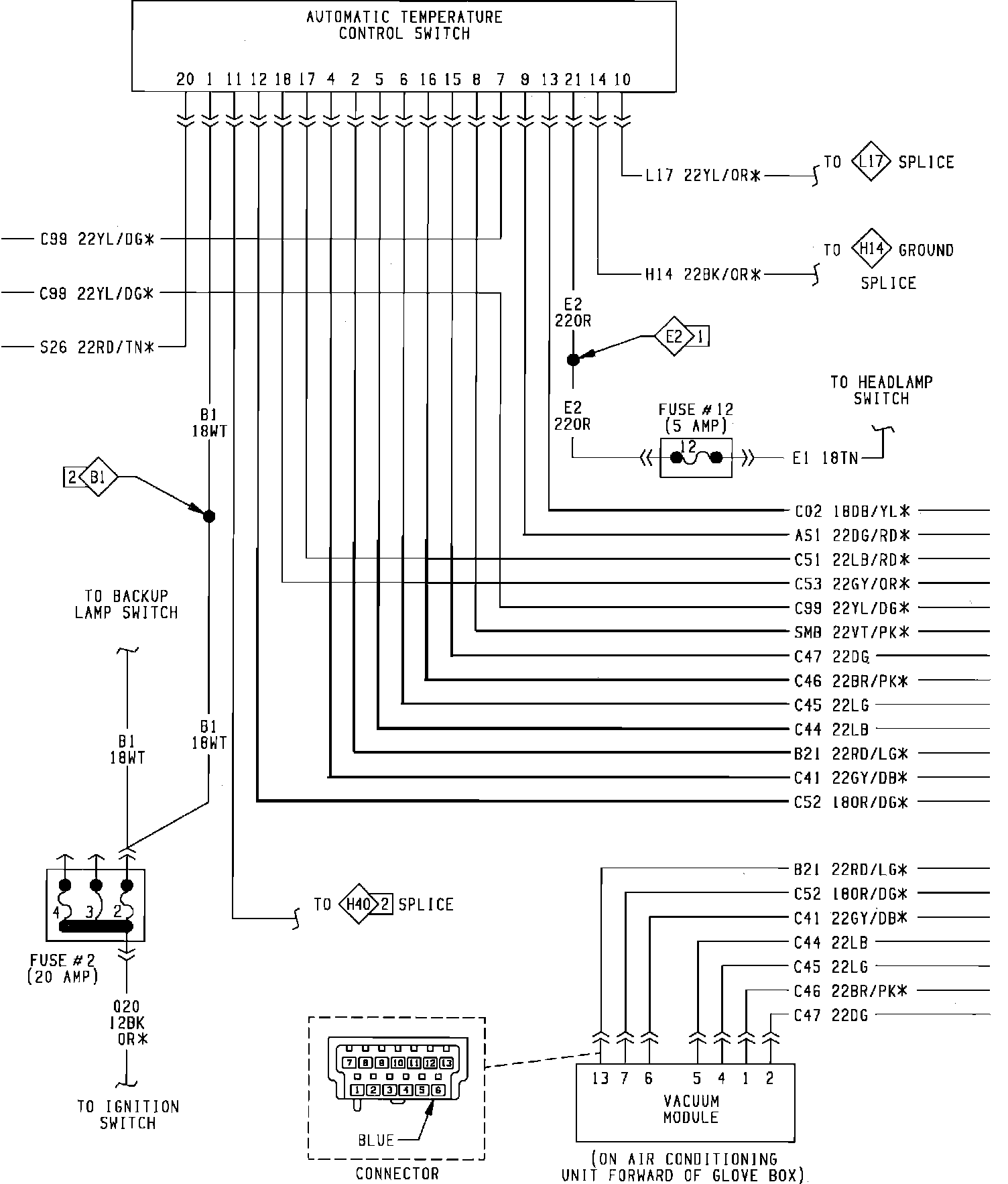

Air Conditioning & Heater Wiring Circuit (Part 1 Of 4). w/ATC:

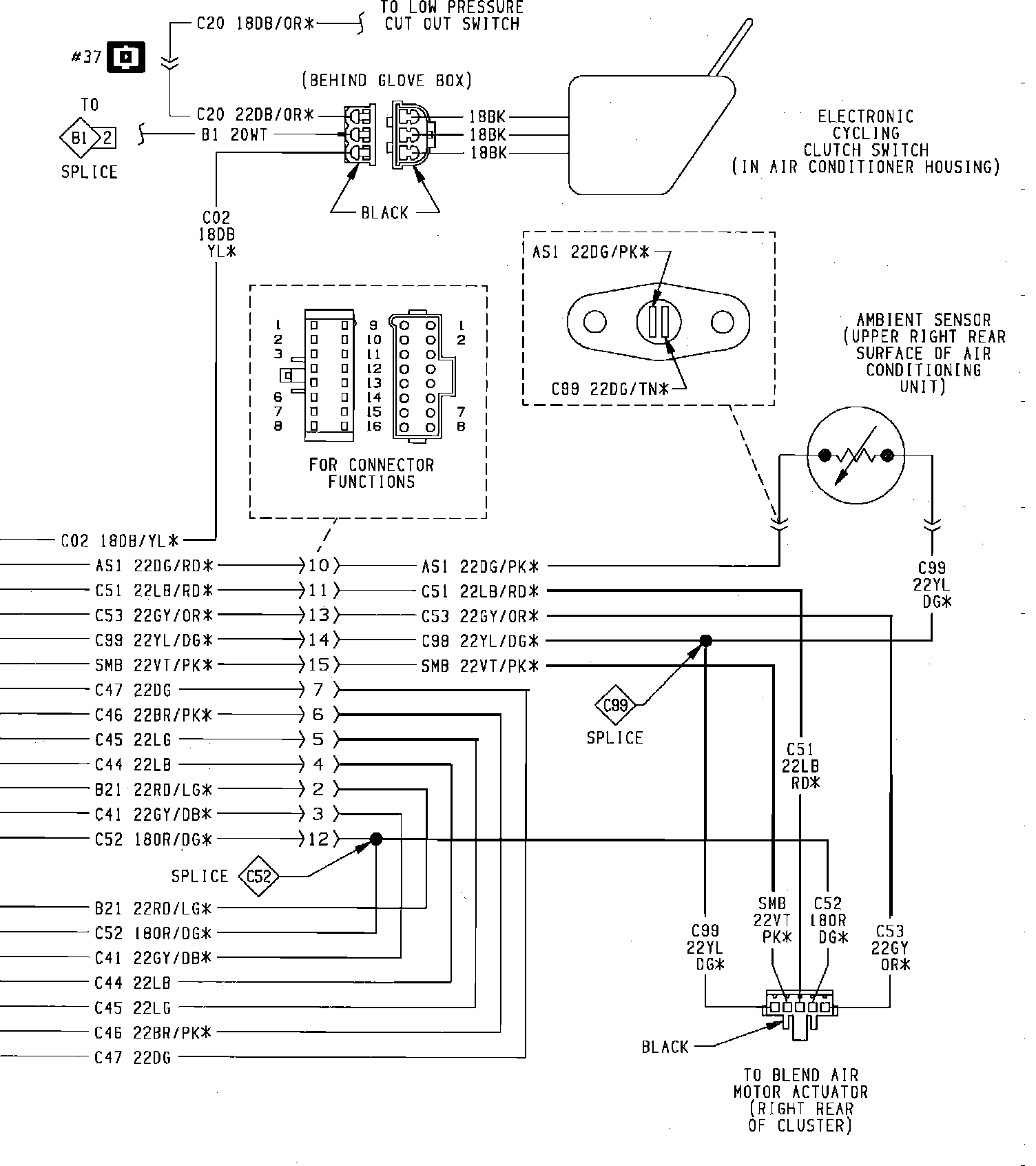

Air Conditioning & Heater Wiring Circuit (Part 2 Of 4). w/ATC:



Air Conditioning & Heater Wiring Circuit (Part 3 Of 4). w/ATC:



Air Conditioning & Heater Wiring Circuit (Part 4 Of 4). w/ATC:
