Home >> Chrysler >> 1989 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN A FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> Electronic Monitor Connectors

Electronic Monitor Connectors

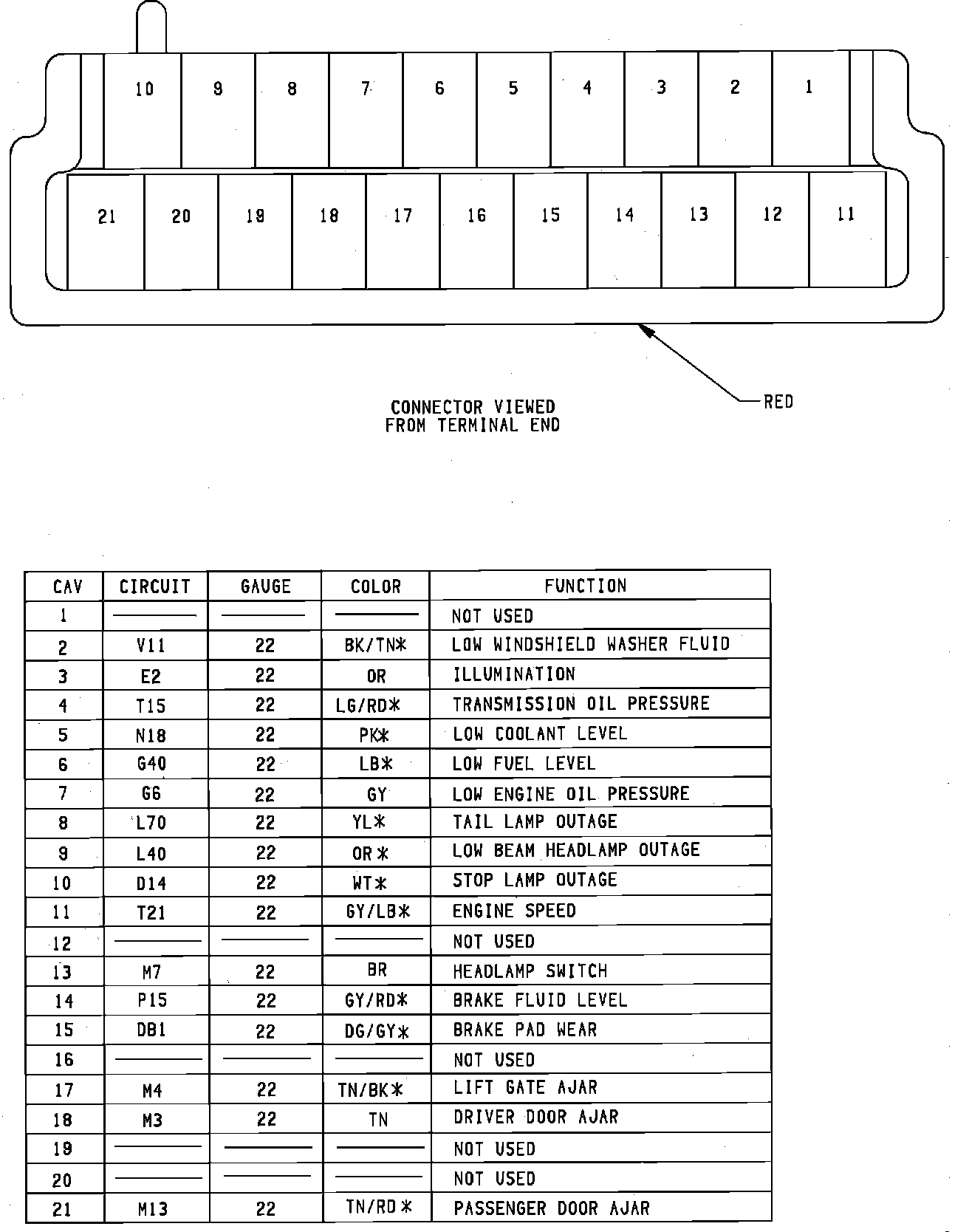

Electronic Monitor Connector:

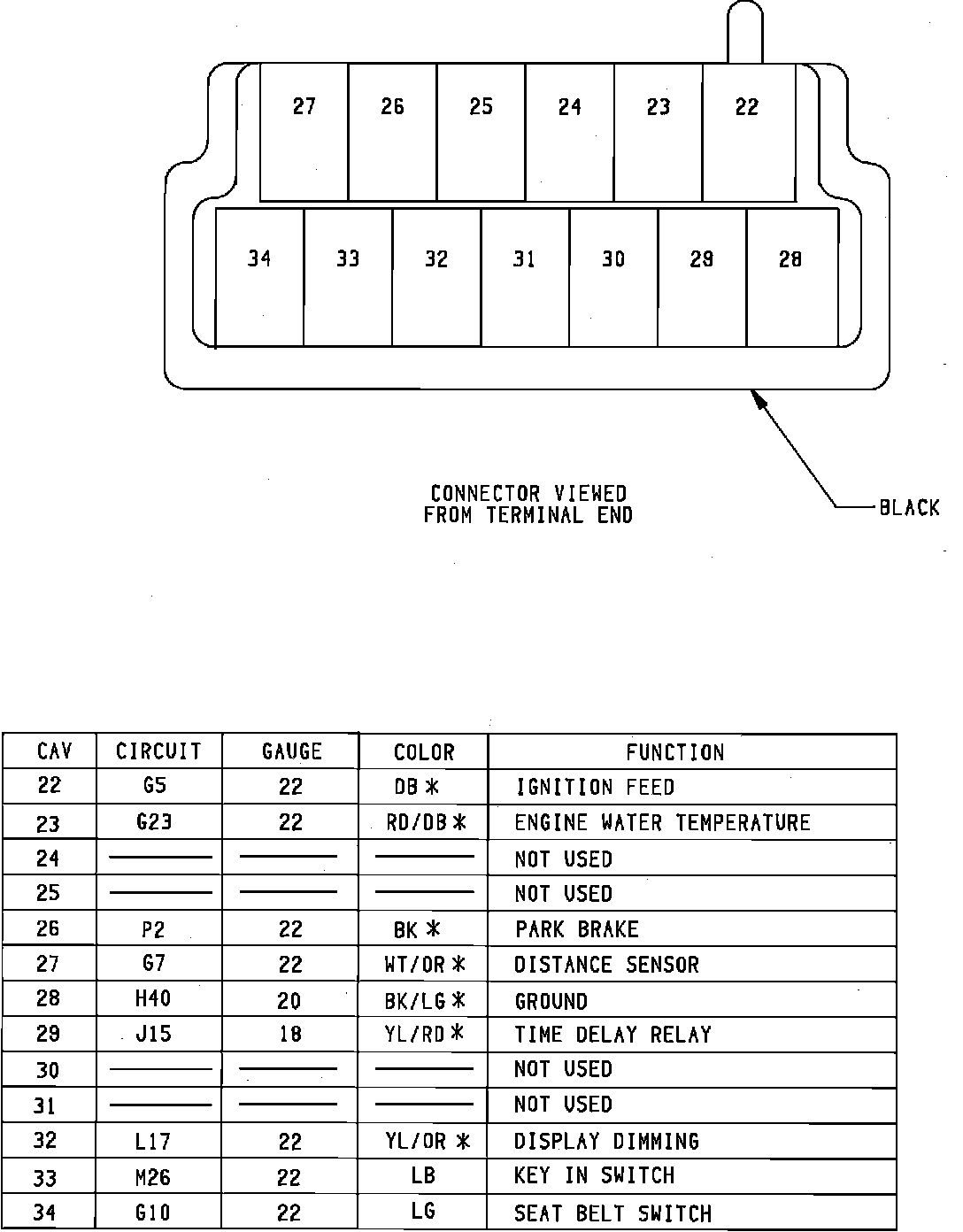

Electronic Monitor Connector:
