Lebaron Convertible L4-135 2.2L SOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
System Diagram
>>
Right Side
Right Side

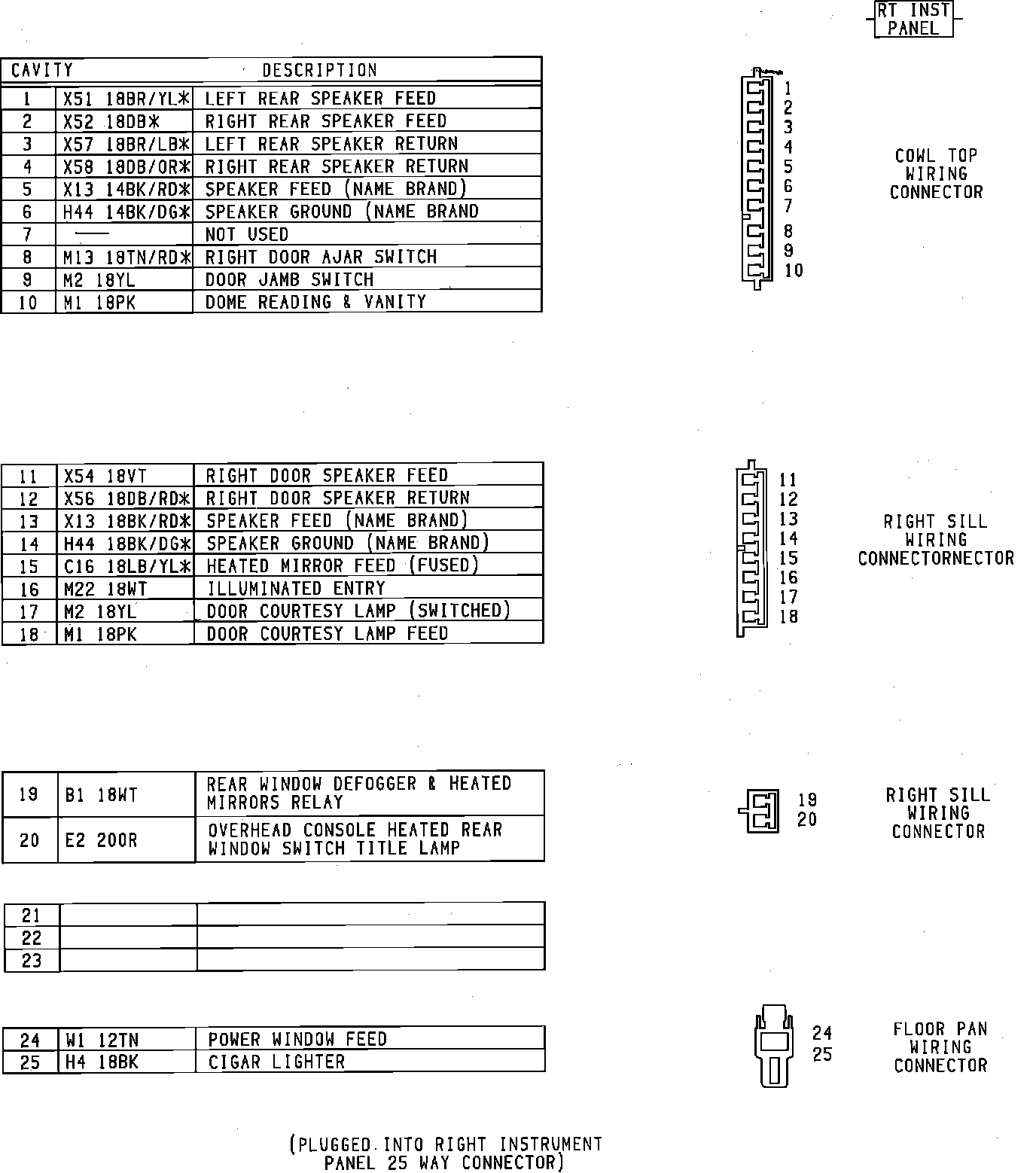

Body To Instrument Panel Connectors. Right Side:
