NS-7B Primary Control Volt Supply to Ignition Coil (-)
NS-7B Primary Control Volt Supply to Ignition Coil (-)

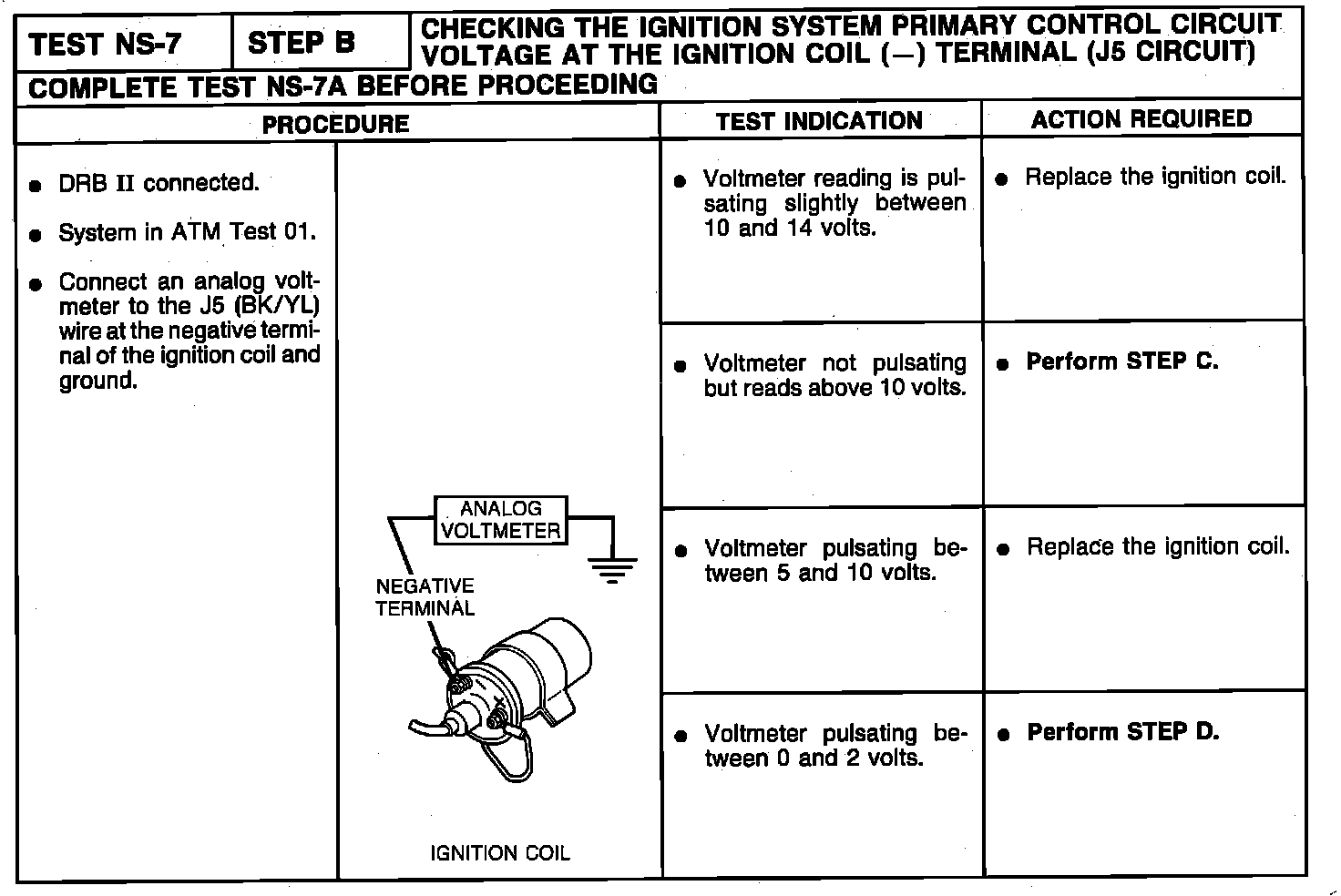

NS 7-Step B: Ignition Primary Control Circuit:
