NS-7A Volt Supply to Ignition Coil (+) From ASD Relay
NS-7A Volt Supply to Ignition Coil (+) From ASD Relay

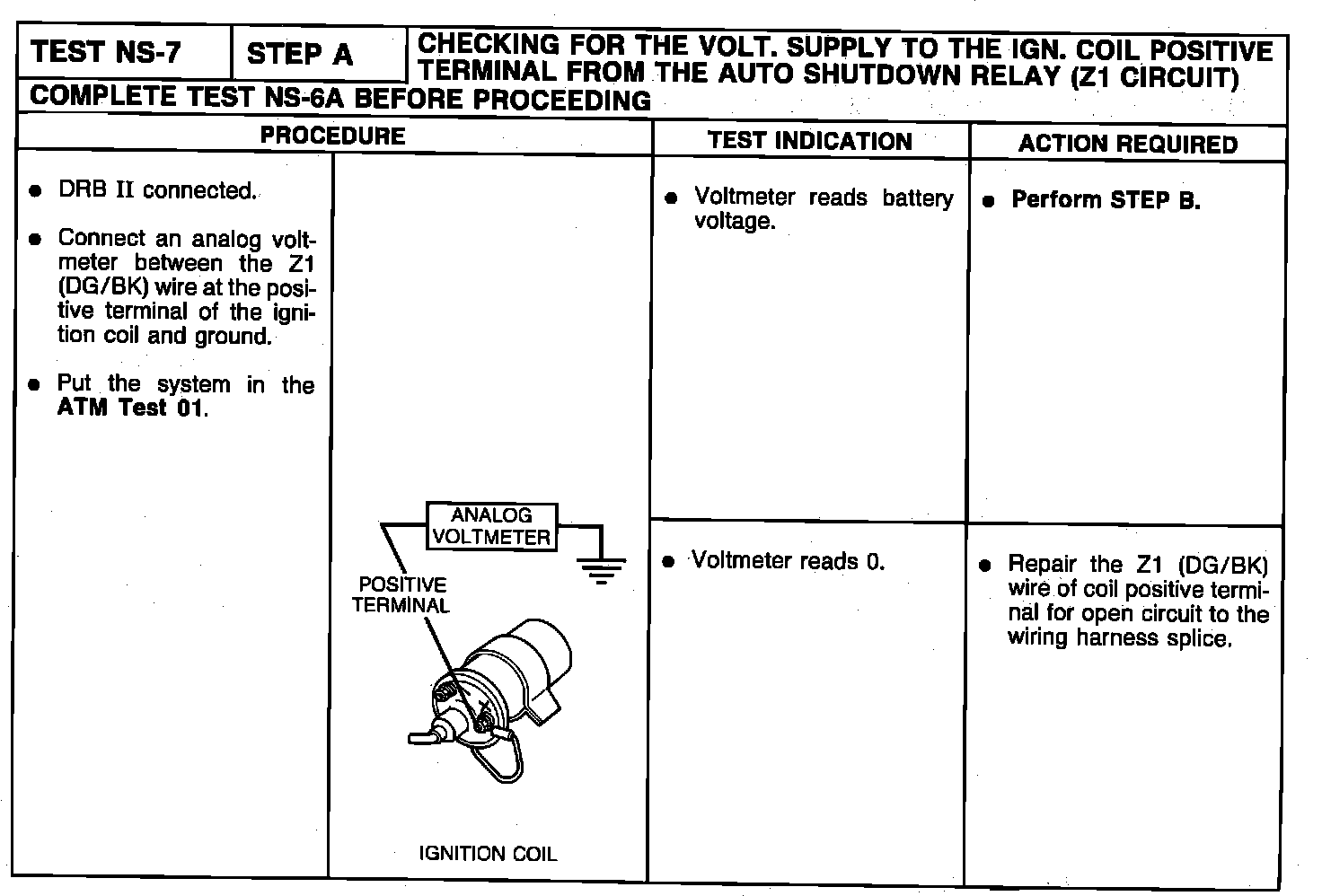

NS 7-Step A: Voltage Supply To The Ignition Coil (+) Terminal:
