Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-6A Check Ignition Control System For Fault Codes

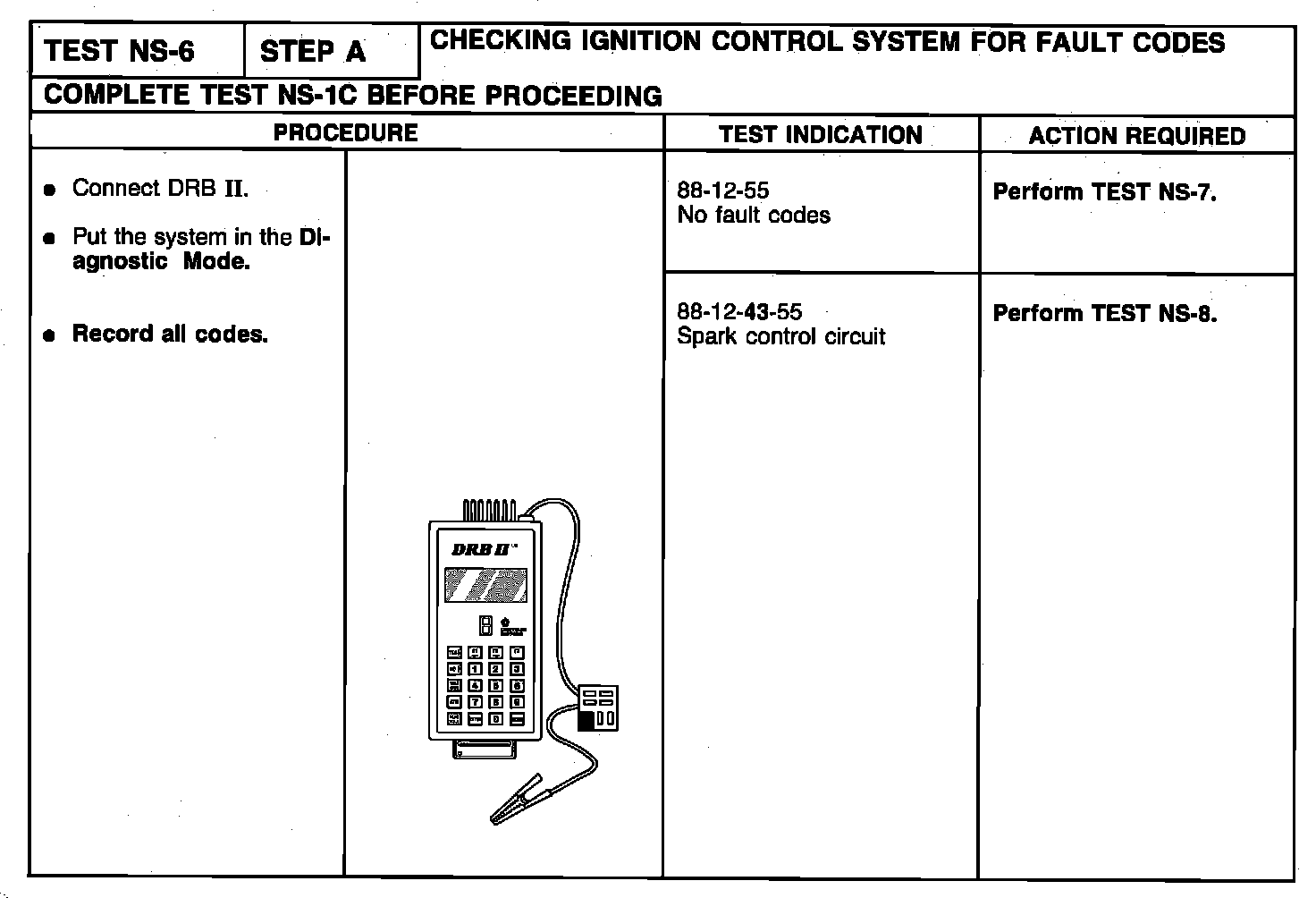

NS-6A Check Ignition Control System For Fault Codes

NS 6-Step A: Ignition Control System For Fault Codes:
