Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-2A Checking For Fuel From Injector

NS-2A Checking For Fuel From Injector

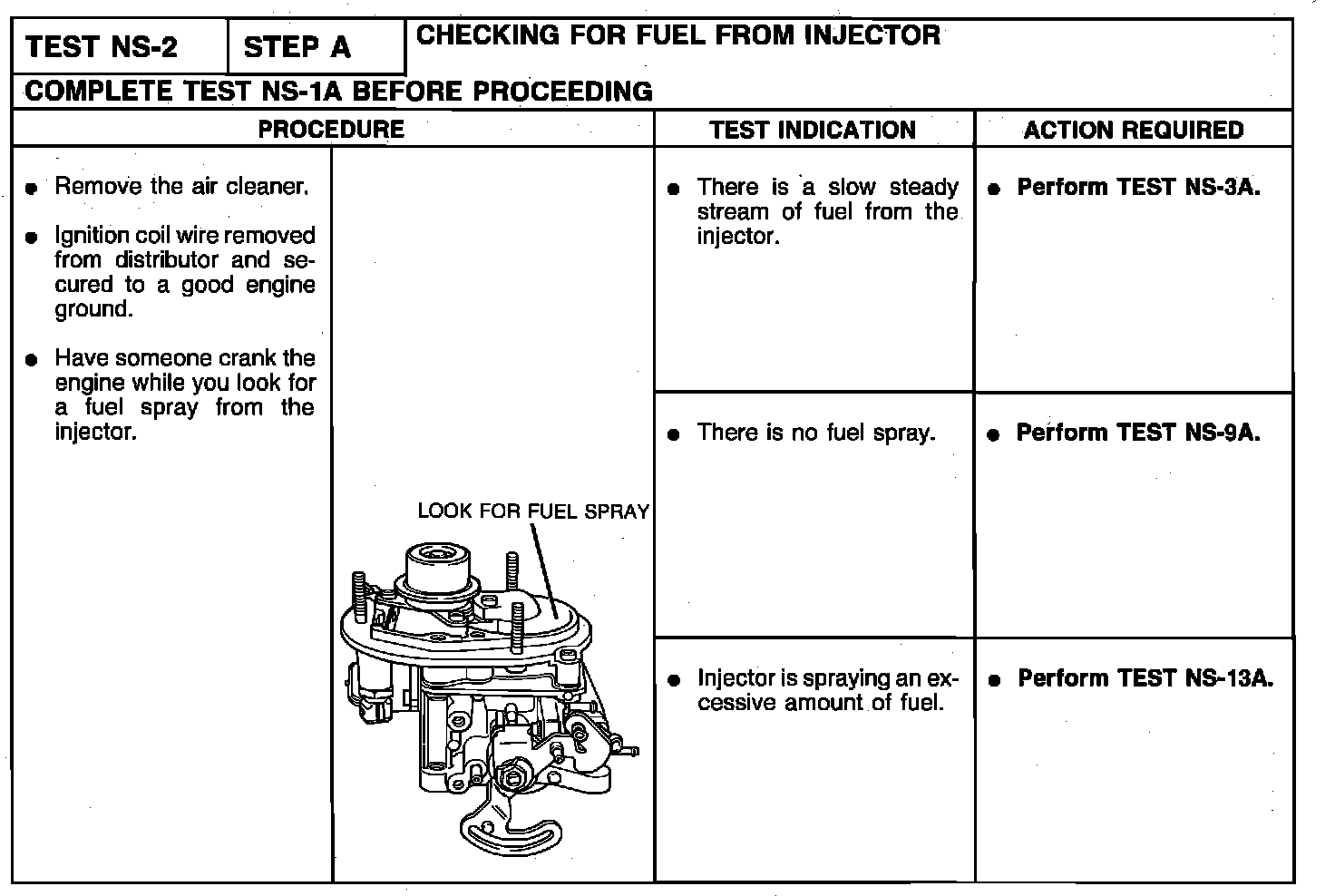

NS 2-Step A: Check Fuel From Injector:
