Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-1A Checking For Spark at Spark Plugs

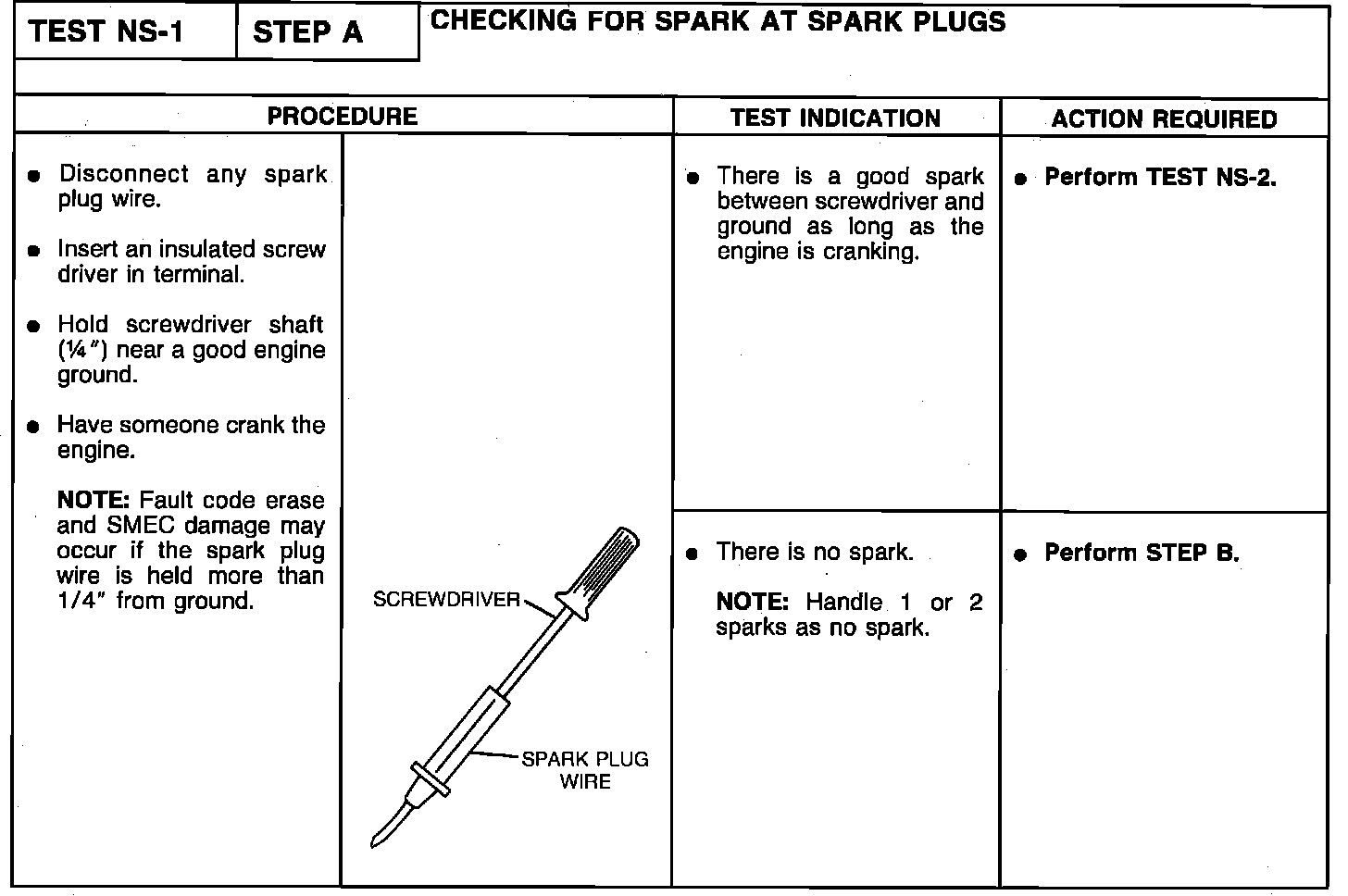

NS-1A Checking For Spark at Spark Plugs

NS 1-Step A: Checking For Spark At Spark Plugs:
