NS-18A Fault Code 44 Fused J2 Circuit (K14)
NS-18A Fault Code 44 Fused J2 Circuit (K14)

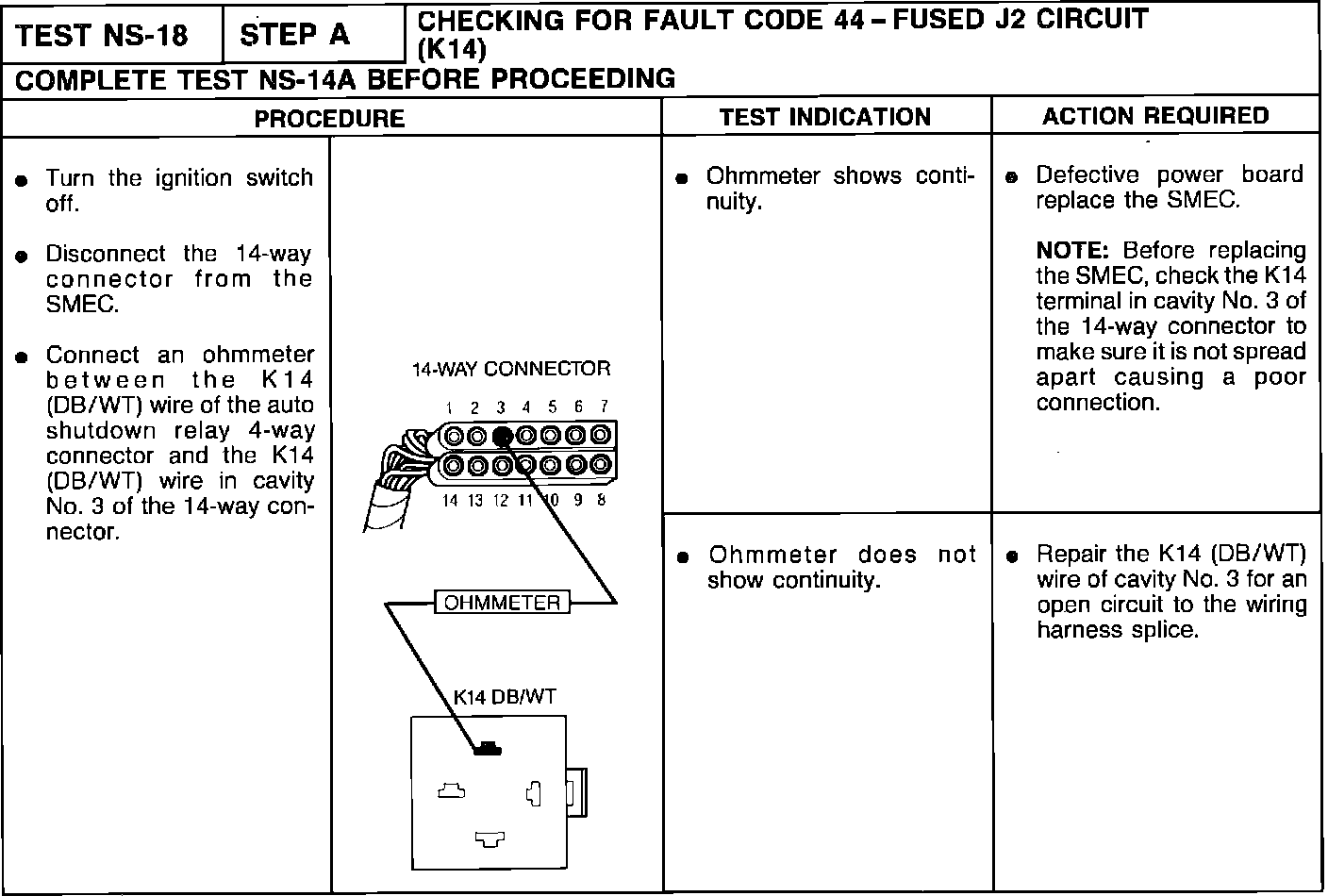

NS 18-Step A: Fault Code 44-Fused J2 Circuit:
