NS-17B Check ASD Relay Control Wire For Open Circuit

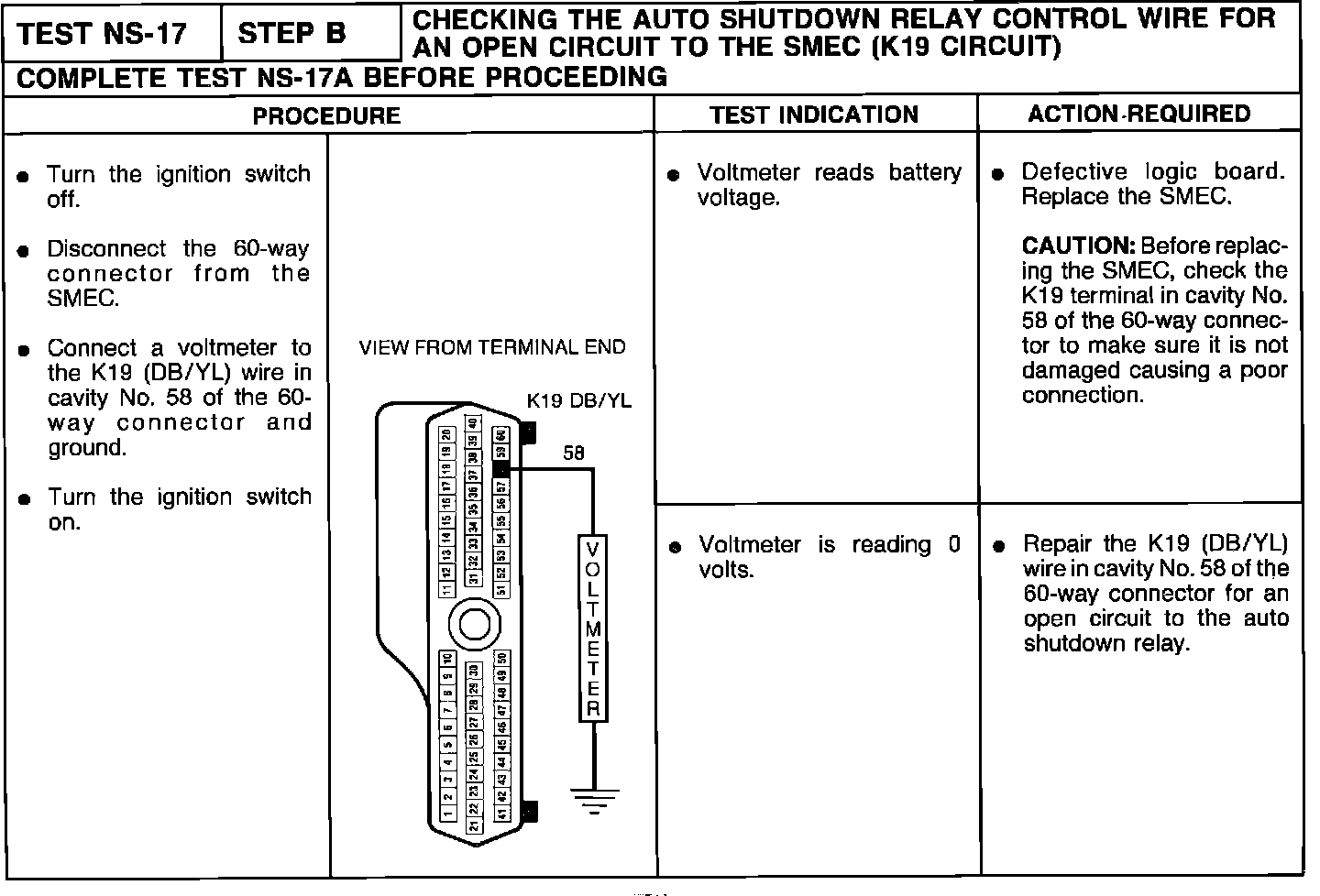

NS 17-Step B: Auto Shutdown Relay Control Wire:
