NS-17A Fault Code 42 Auto Shutdown Relay (K19 Ckt)
NS-17A Fault Code 42 Auto Shutdown Relay (K19 Ckt)

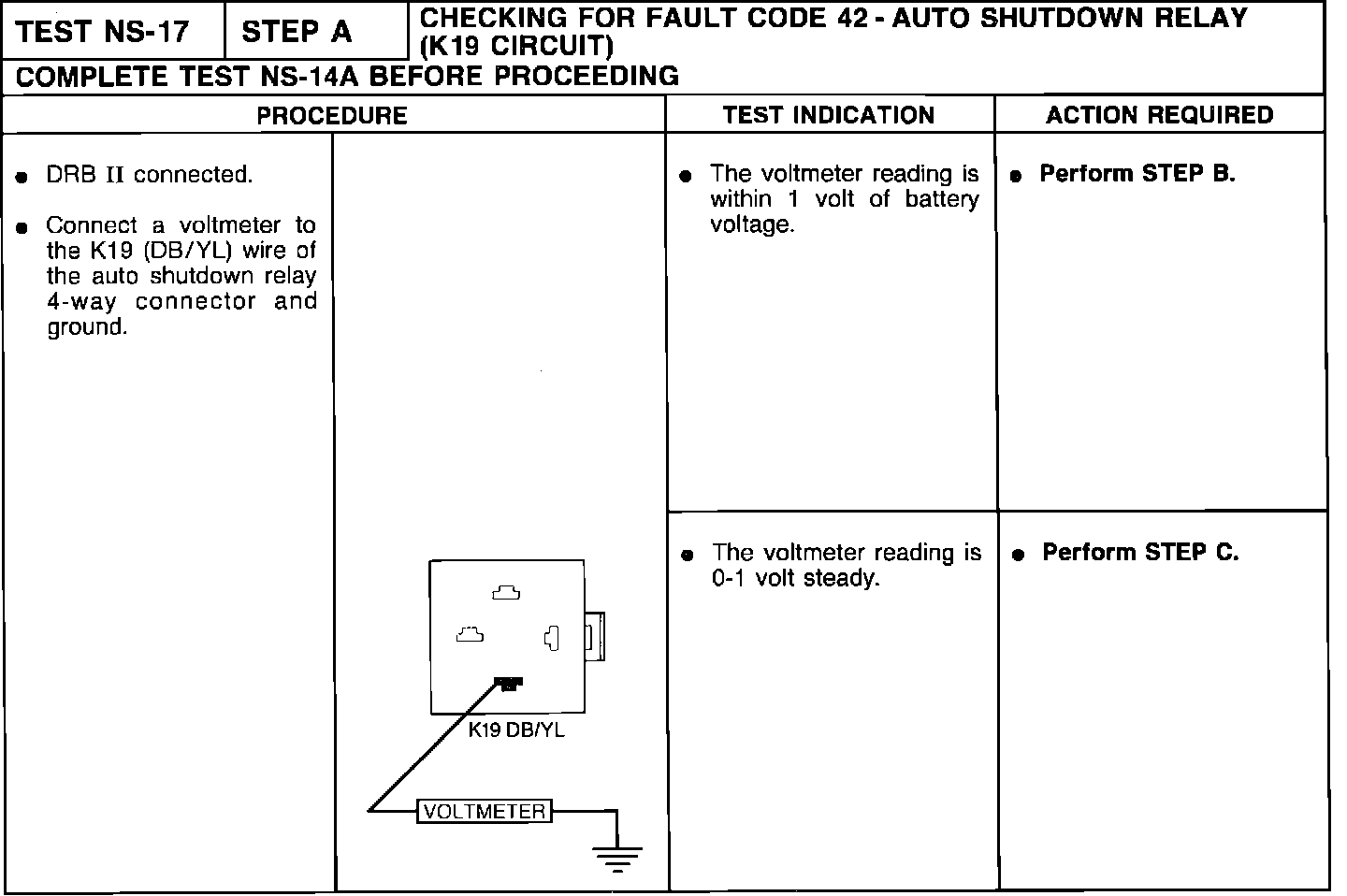

NS 17-Step A: Fault Code 42-Auto Shutdown Relay:
