Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

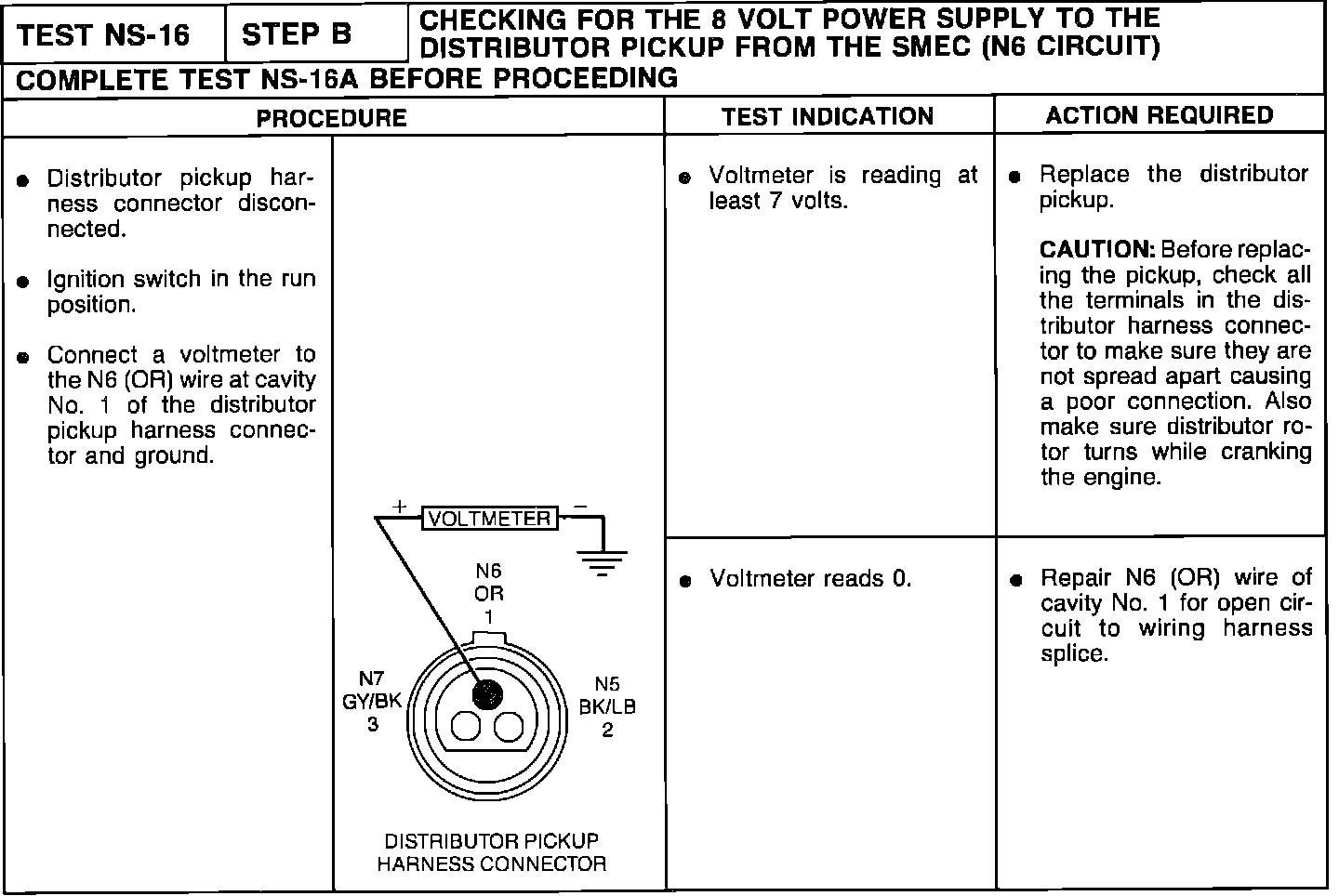

NS-16B Check For 8 Volt to Distributor Pickup (N6 Ckt)
NS-16B Check For 8 Volt to Distributor Pickup (N6 Ckt)
NS 16-Step B: Eight Volt Power Supply From The SMEC:
