NS-16A Fault Code 11 Distributor Pickup Circuit

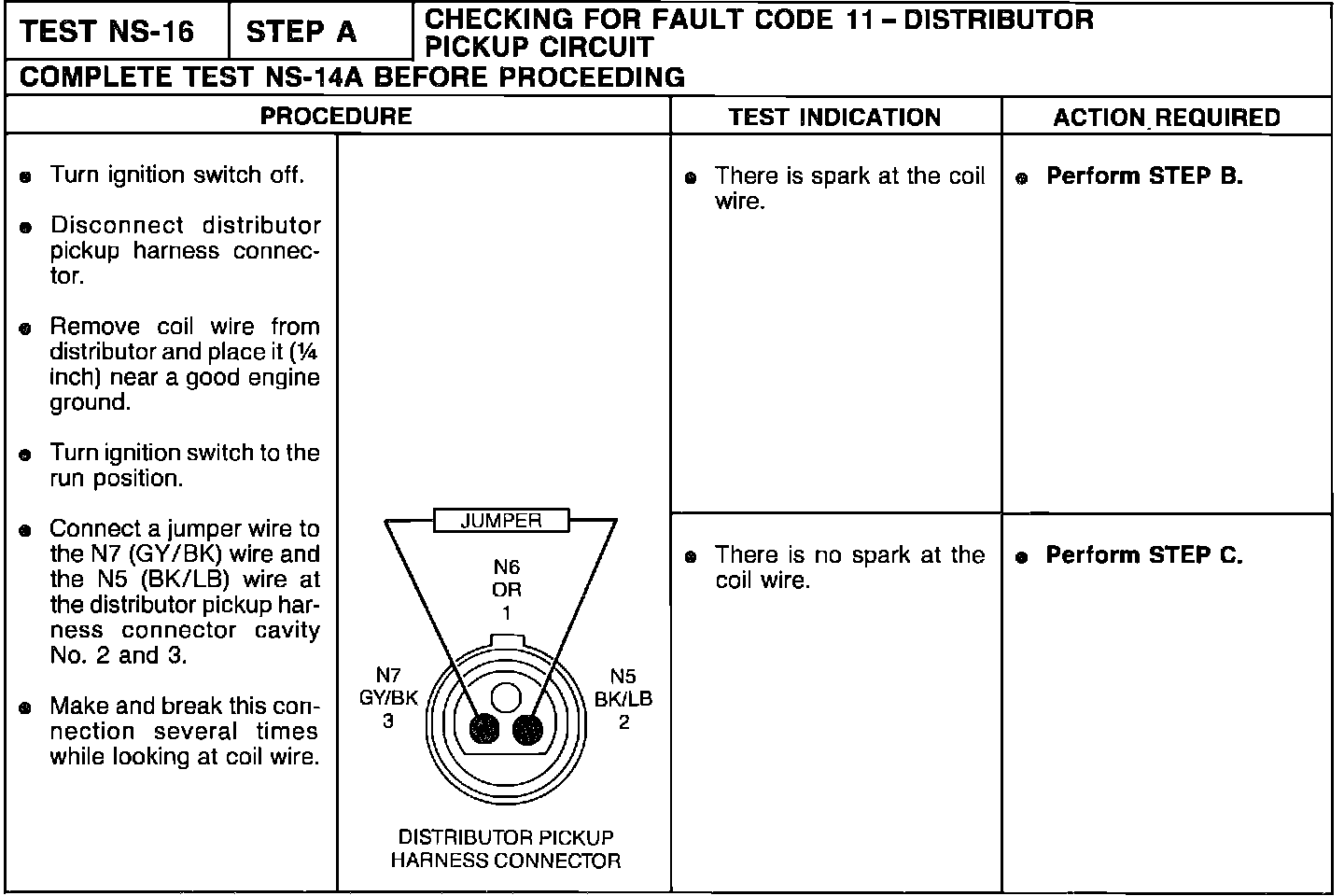

NS 16-Step A: Fault Code 11-Distributor Pickup Circuit:
