NS-15F Check The 8 Volt Supply For Open Circuit (N6)
NS-15F Check The 8 Volt Supply For Open Circuit (N6)

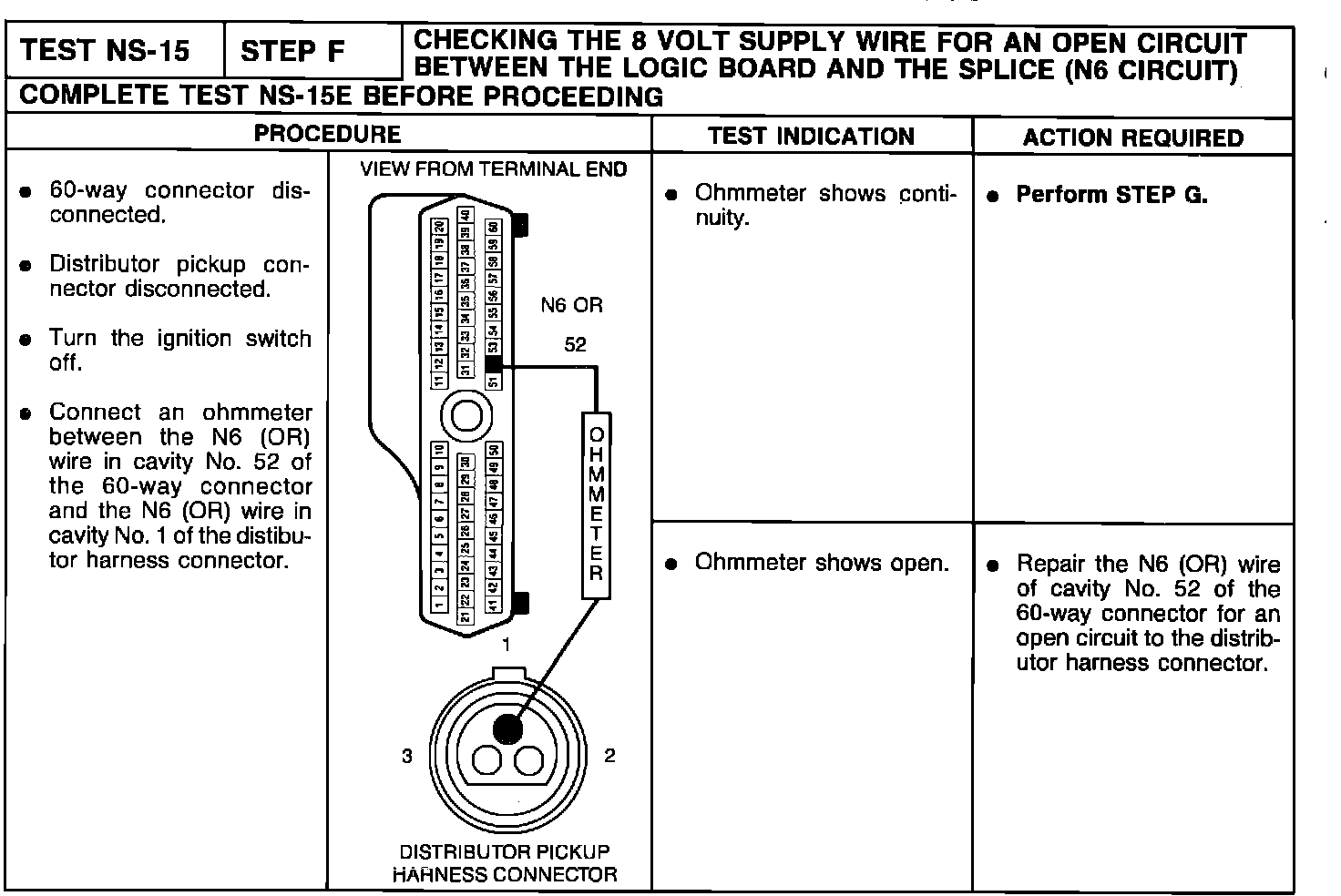

NS 15-Step F: Checking The Eight Volt Supply Wire:
