NS-15D Check For The 8 Volt Supply (N6 Ckt)
NS-15D Check For The 8 Volt Supply (N6 Ckt)

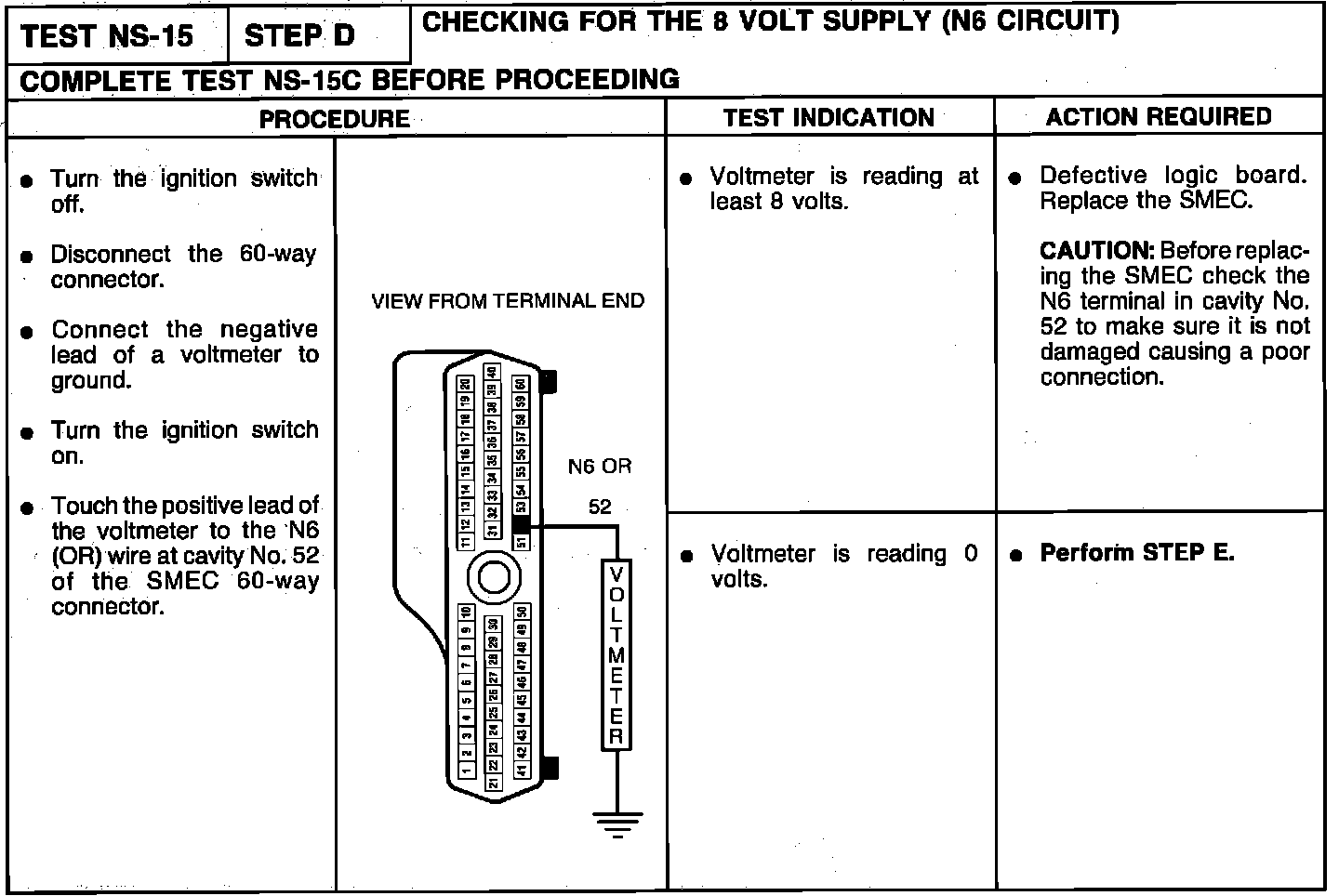

NS 15-Step D: Check The Eight Volt Supply Circuit:
