FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-13B Check Fuel Control Circuits to The SMEC

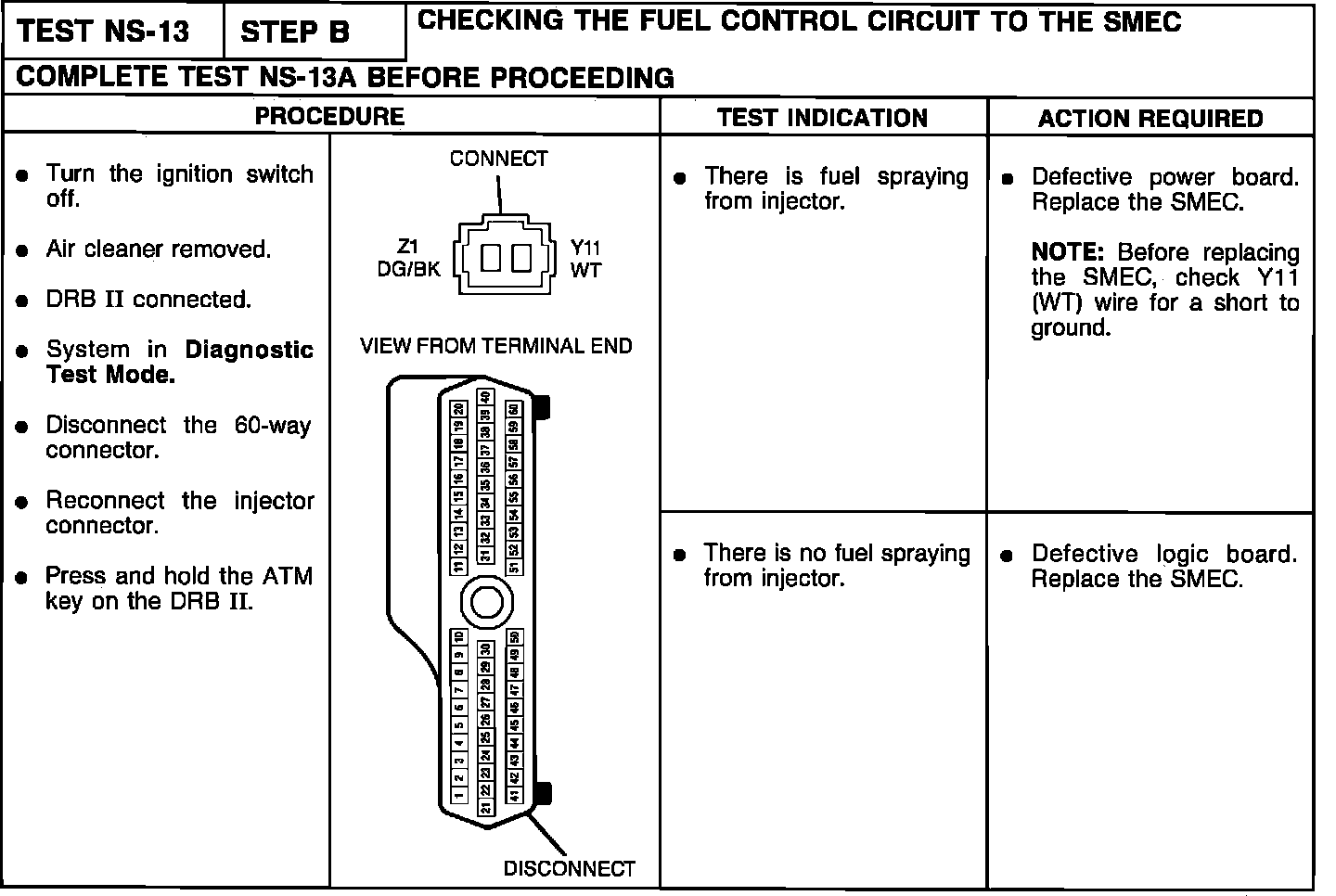

NS-13B Check Fuel Control Circuits to The SMEC

NS 13-Step B::
