Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-13A Check For A Flooding Injector

NS-13A Check For A Flooding Injector

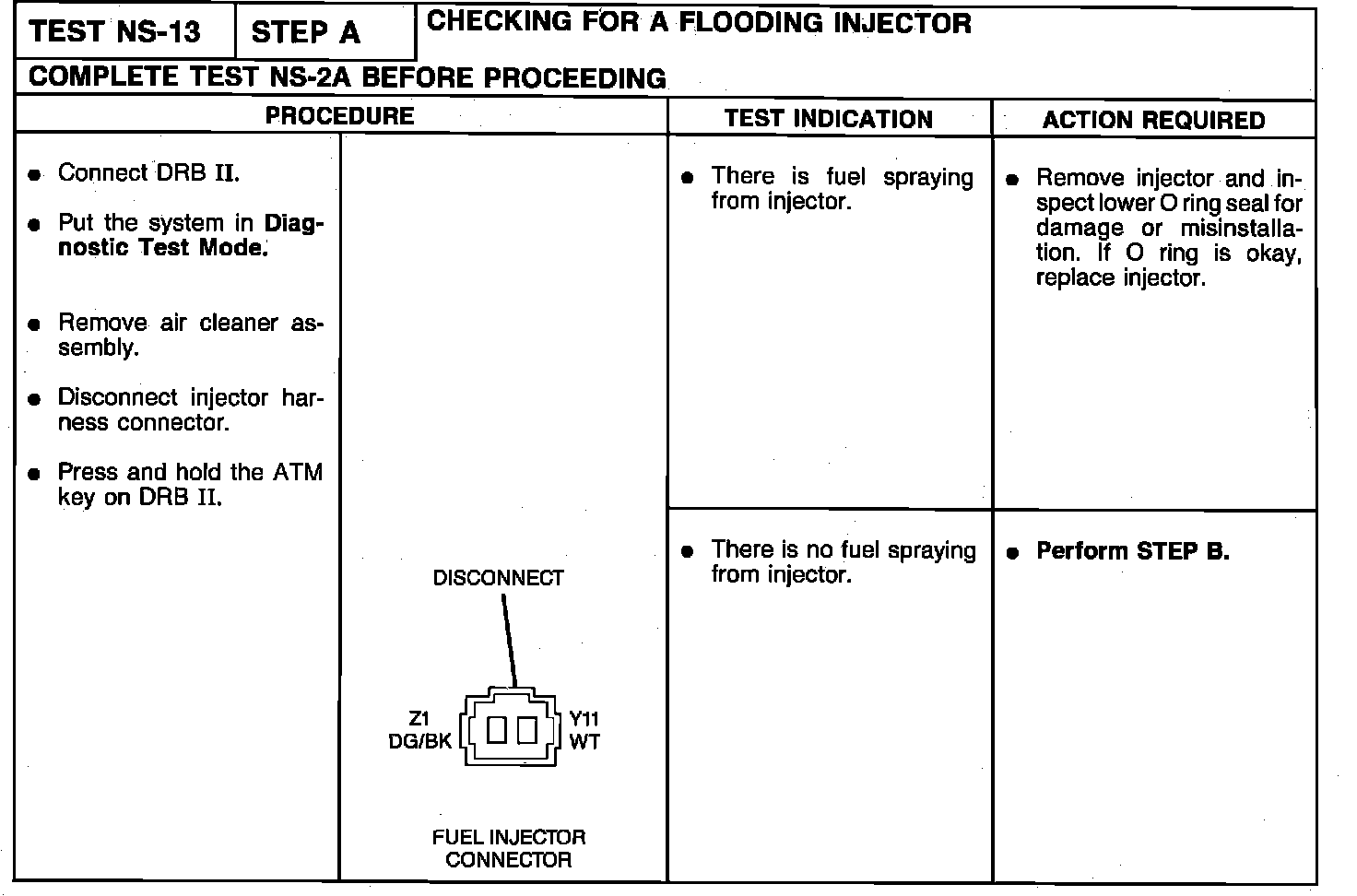

NS 13-Step A: Check For A Flooding Injector:
