Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-12A Fault Code 27 Fuel Control Circuit

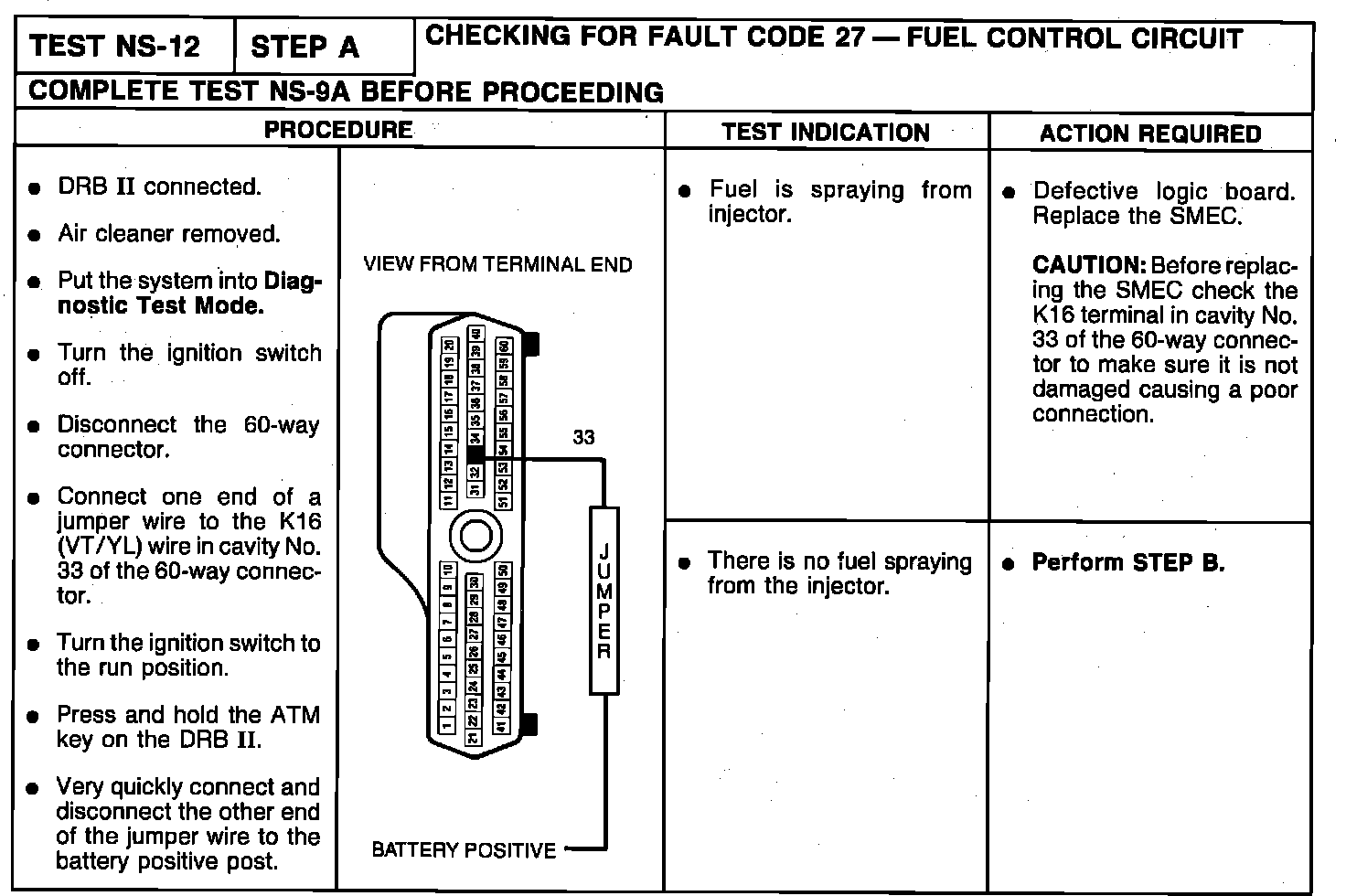

NS-12A Fault Code 27 Fuel Control Circuit

NS 12-Step A: Fault Code 27-Fuel Control Circuit:
