Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

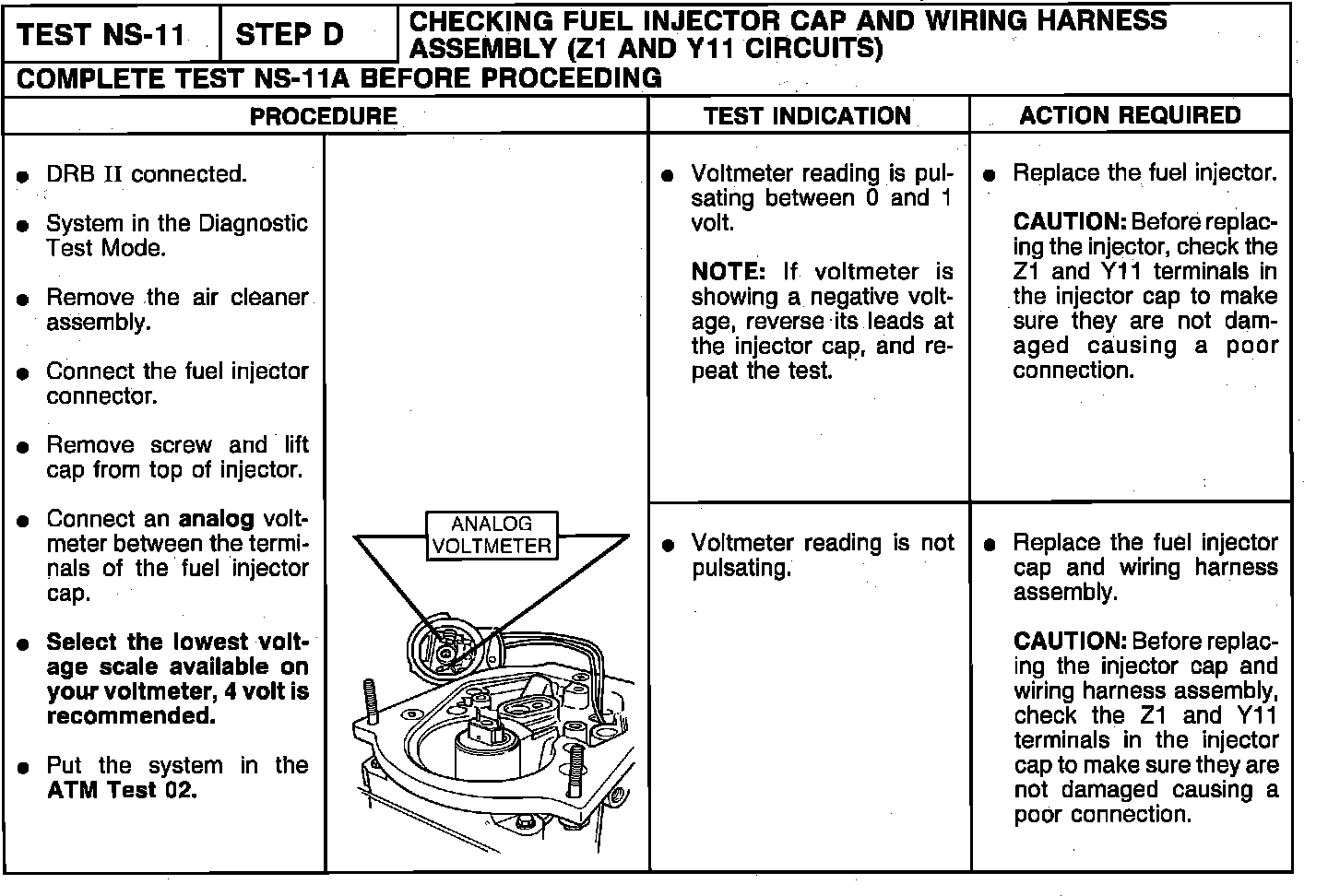

NS-11D Fuel Injector Cap & Wiring Harness Assembly
NS-11D Fuel Injector Cap & Wiring Harness Assembly
NS 11-Step D: Fuel Injector Cap & Wiring Harness:
